TC420 Programmable LED Time Controller Dimmer for RGBW LED Strip Lighting DC12V-24V

SKU: 1819815

21.33 21.33 Piece 21.330000000000002 USD

¥ 151.80

Option not available

This combination does not exist.

Add to Cart

20A DC12V/24V Time Programmable LED RGB/Single Color Strip Controller


Here is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host .If user want to see the schedule mode effect after editing , they can use fast sowing function of upper . Because there is no delete function of the upper host ,so the mode name display space will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.


Supply voltage

DC5V,DC12V-24V (order Indicate required voltage)


5 Channel

Static power


Output current

<4<A (each channel)<<><<><<><<>

Connection Mode

Common Anode


94*58*26 mm

Package size




Output Power

5V<80 W,12V< 192W, 24V<384w<384w<><384w<><384w<><384w<><384w<><384w<384w<>

Net weight & Gross weight

130g &155g

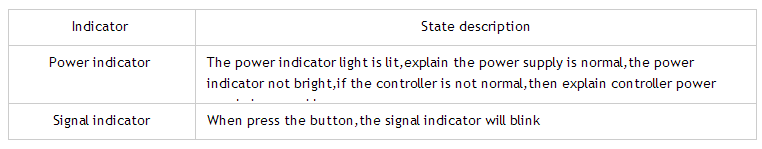

Work Statements Instruction:

Typical application:

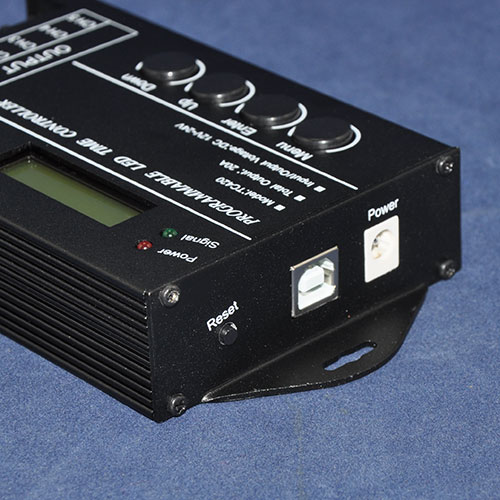

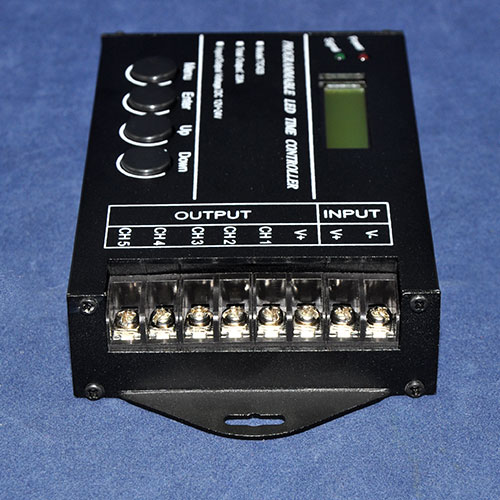

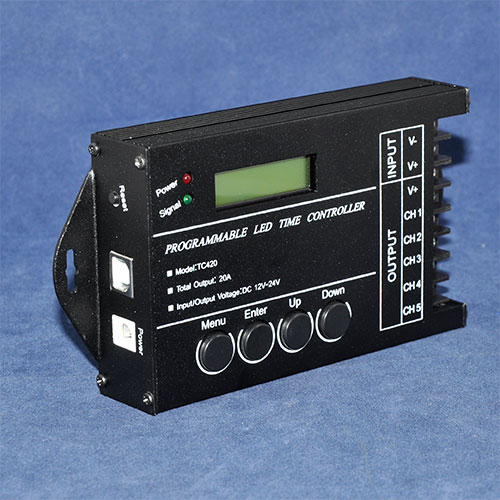

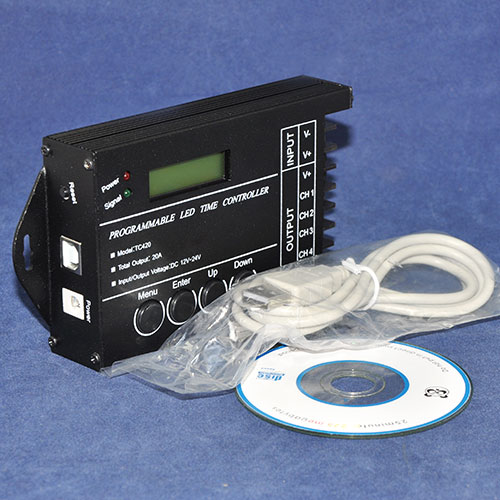

Photos for Product:
