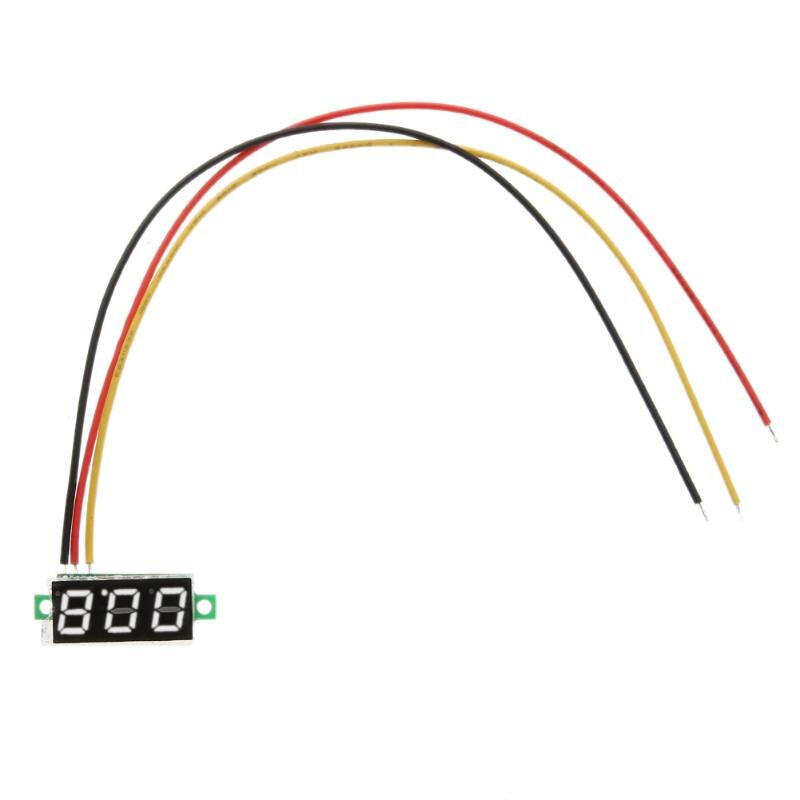

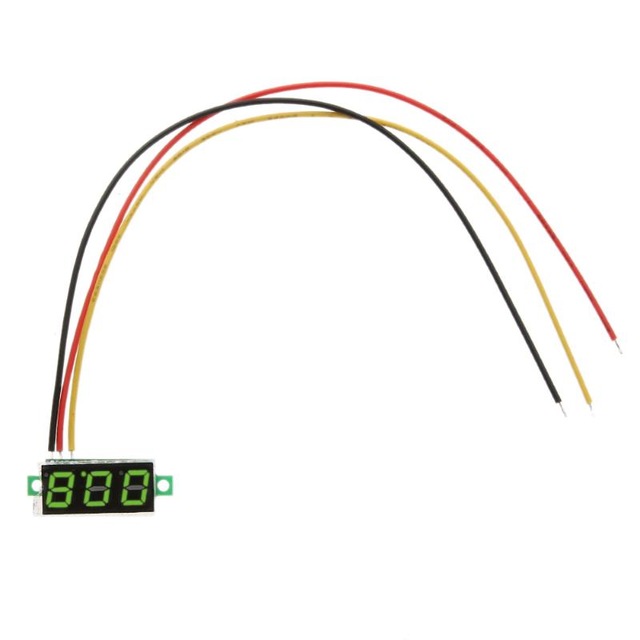

0.28 Inch DC0-100V Digital Voltmeter 3 Wire Voltage Meter Tester

https://www.satisled.com/web/image/product.template/6787/image_1920?unique=99581fd
(0 review)

1.28 1.28 USD 1.28

¥ 7.60

Not Available For Sale


  • Color

This combination does not exist.


Categories :
Voltage Meters
SKU :
1941843
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Features:

  • With 3 wires, easy connection;

  • High precision, low starting working voltage;

  • With reverse protection, prevent burning wires;

  • Fine adjustment function;

  • Directly use the measured voltage as a power supply (extra power supply is needed for 30V or more voltage);

Parameters:

  • Input voltage: 0-100V

  • Measuring range: 0-100V

  • Voltage measurement error: 0.1V

  • Working current: <30mA

  • Display mode: 0.28" LED

  • Refresh rate: about 200ms/ time

  • Line length: 19.5cm/7.68"

  • Operating temperature: -10 ℃ to 65 ℃

  • Working humidity: 10% -80%

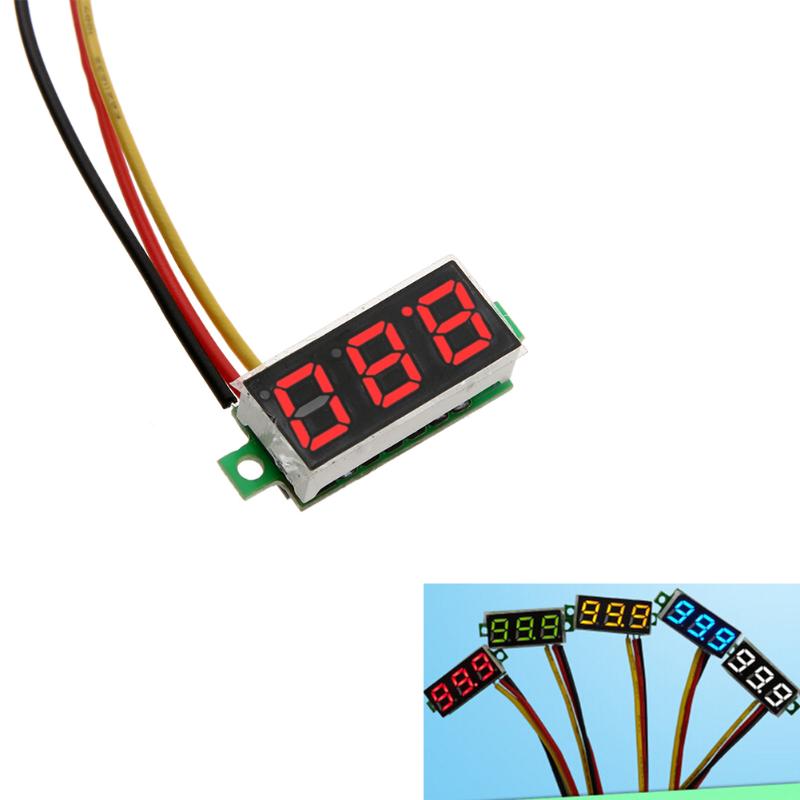

  • Digital display color: 1(red), 2(yellow), 3(green), 4(blue), 5(white)

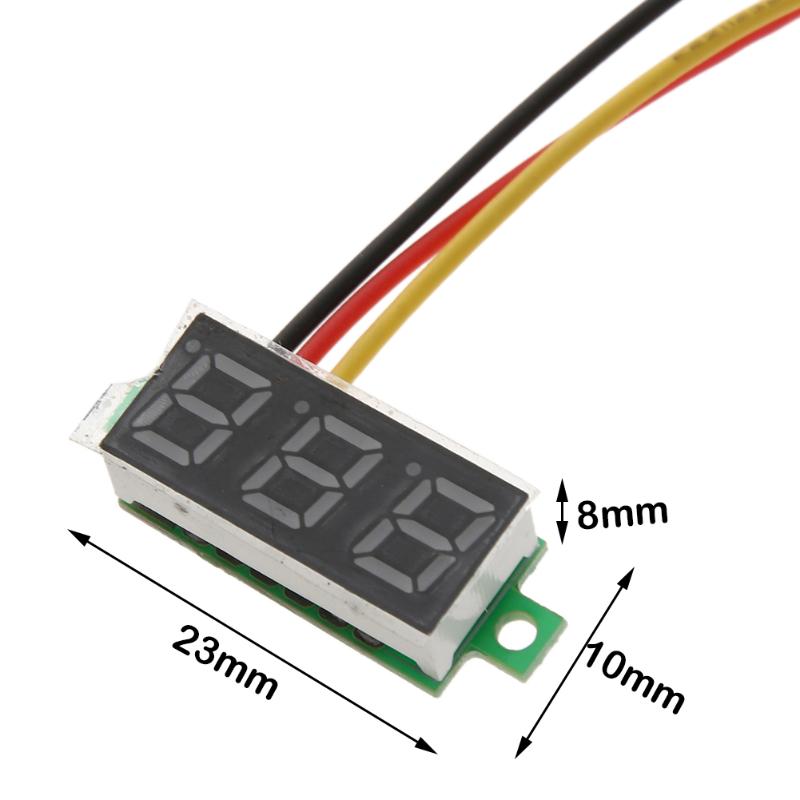

  • Product size: 23 x 10 x 8mm/0.91 x 0.39 x 0.31"

Wire instructions:

  • Red: power + (3.0 30V DC)

  • Yellow: measuring voltage + (0 100V DC)

  • Black: power supply -, measuring voltage -
