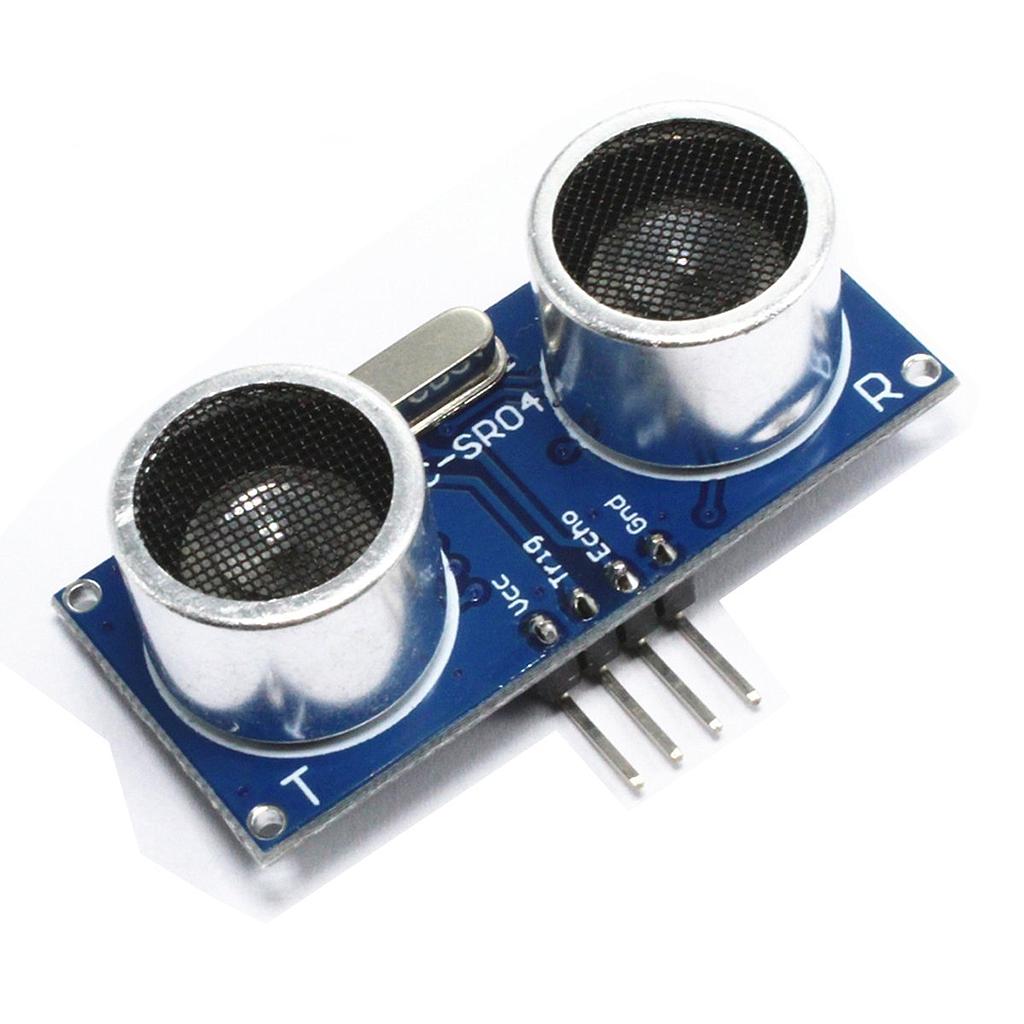

HC-SR04 Ultrasonic Distance Sensor module
Categories :
Ultrasonic Sensor ModulesSKU :
180021
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
$ 0.83 $ 0.83
This module has stable performance and accurate measurement distance. Module high-precision, blind (2cm) ultra-close, stable range is the success of this product to the market a strong basis! This module fully humility GH-311 anti-theft module.

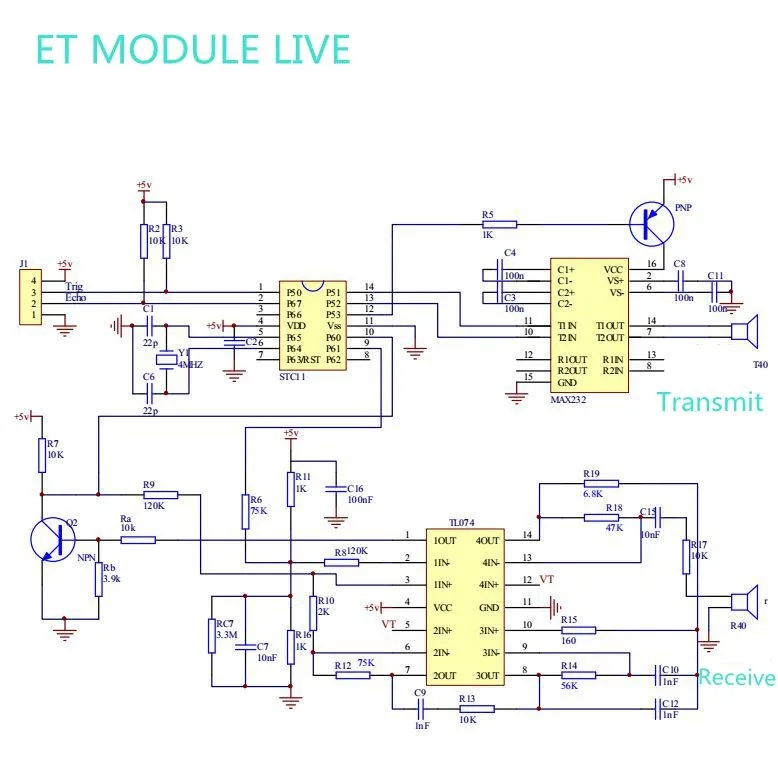

(1) using IO trigger ranging,to at least 10us of high-level signal;
(2) the module automatically sends eight 40khz square wave, automatically detect whether there is signal return;
(3) there is a signal return, through the IO output of a high, high duration is the time from the launch to the return of ultrasound.
Test distance = (high time * sound speed (340M / S)) / 2;
This product is simple to use, a control mouth made a 10US above the high level, you can wait for the reception of high-level output. An output can be opened timer, when the mouth becomes low when you can read The value of the timer, this time for the distance of time, can be calculated from the distance. Such a continuous cycle of measurement, you can move the measured value
The module features:
1: Working voltage: DC5V
2: Quiescent current: less than 2mA
3: Level output: High 5V
4: Level output: Bottom 0V
5: Sensing angle: not more than 15 degrees
6: Detection range: 2cm-450cm
7: High precision: up to 0.3cm
Board connection: VCC-trig (control side), echo (receiver), out (empty feet), GND
Note: TRIP pin is the internal pull-up 10K resistor, with the MCU IO port pull down TRIP pin, and then to a 10us or more pulse signal.
