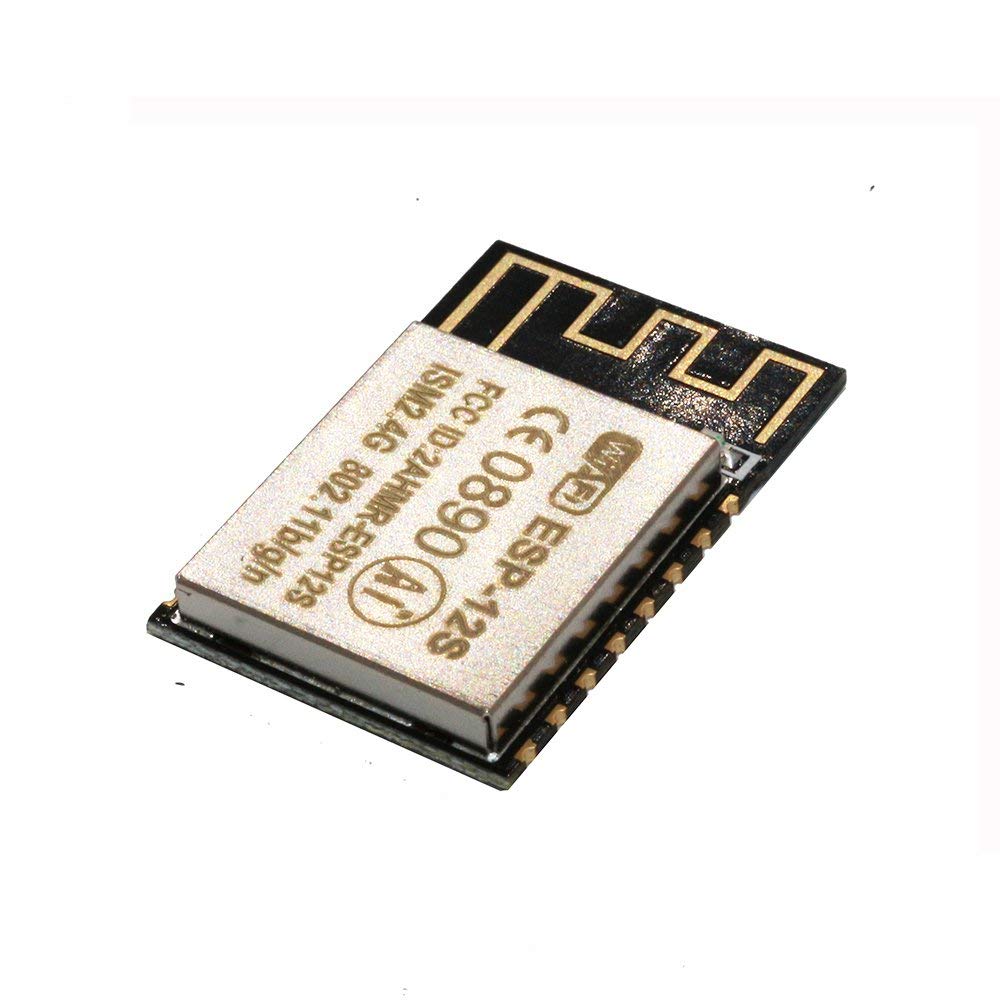

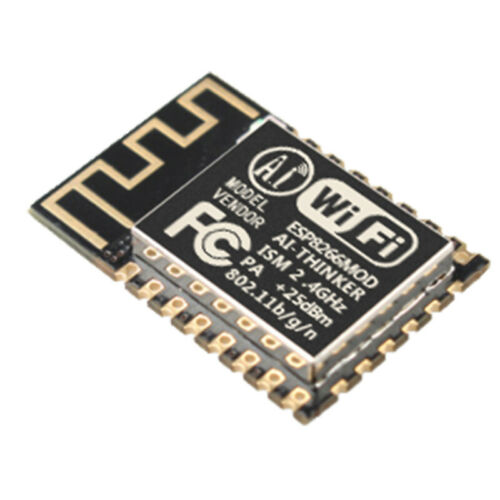

ESP8266 ESP-12S Remote Serial Port WIFI Transceiver Wireless Module

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Fetures:

• Model:ESP8266-12S

• ISM 2.4GHz

• PA +25dBm

• 802.11b/g/n

Warnings:

• 1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.

• 2.It is not 5V tolant,Connect RX or TX on 5V Arduino will destroy this module.

• 3.You must use a logic level converter, or a 3.3V Arduino

• 4.The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module.

• 5.You must provide a separate,higher 3.3V supply(about 300mA or better)
