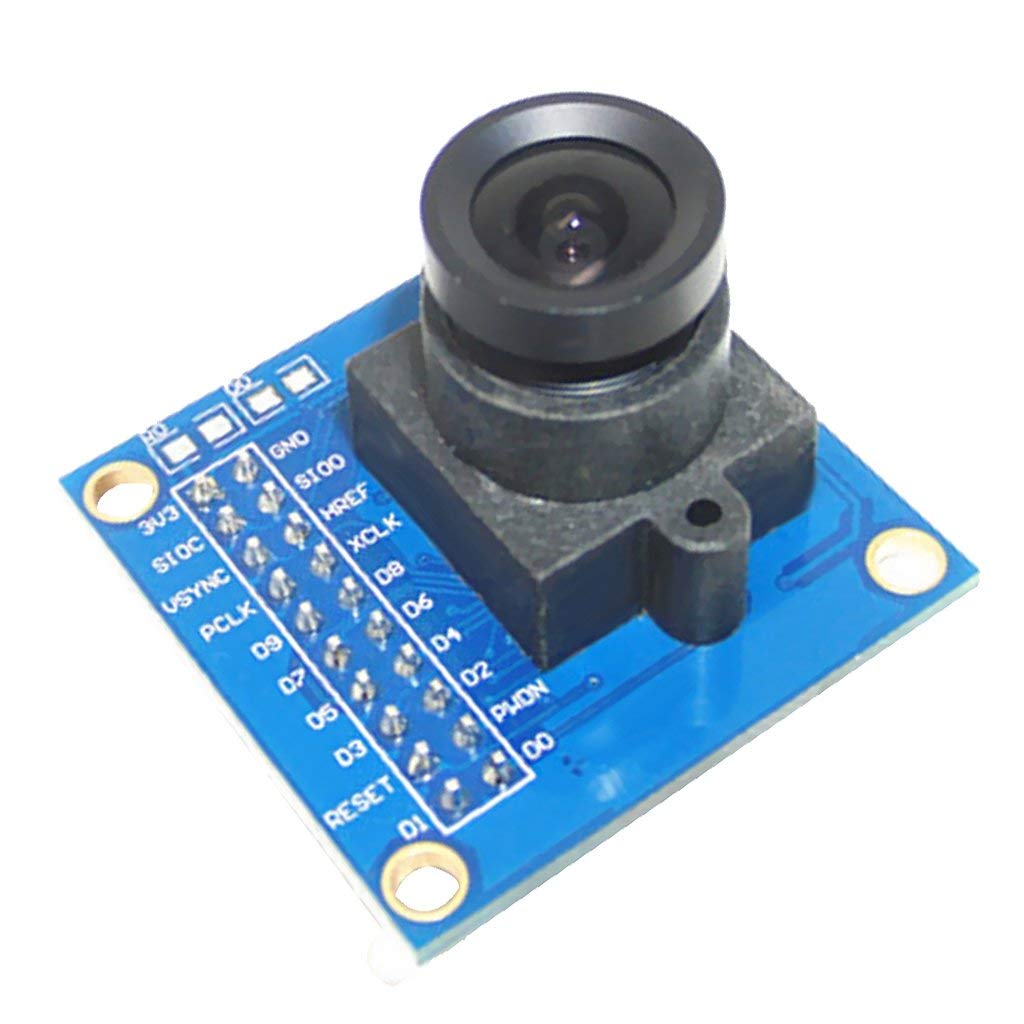

MonkeyJack OV7725 300KP VGA Camera Module 640x480 3.3V SSCB I2C Lens for Arduino

https://www.satistronics.com/web/image/product.template/3702/image_1920?unique=d27fcb4
(0 review)

$ 10.73 10.73 USD $ 10.73

¥ 72.60

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Optical Sensor
    SKU :
    180341
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like

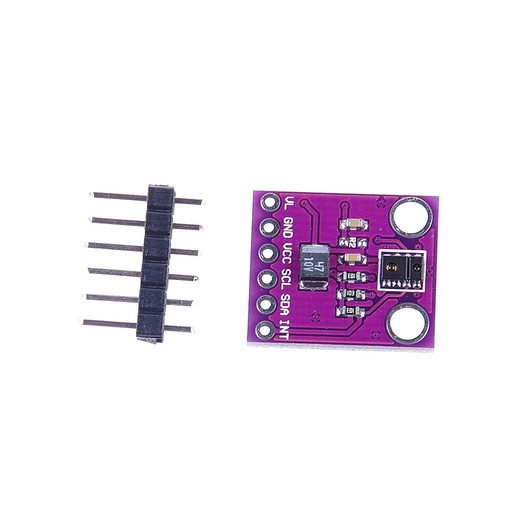

    RGB and Gesture Sensor Proximity Sensor for Arduino APDS-9930
    RGB and Gesture Sensor Proximity Sensor for Arduino APDS-9930
    $ 1.76 $ 1.76
    GY-MAX30102 Heart Rate Click Sensor Breakout Sensors Module for Arduino
    GY-MAX30102 Heart Rate Click Sensor Breakout Sensors Module for Arduino
    $ 9.43 $ 9.43
    TCRT5000 Infrared Reflective IR Photoelectric Switch Barrier Line Track Sensor Module lot(5 pcs)
    TCRT5000 Infrared Reflective IR Photoelectric Switch Barrier Line Track Sensor Module lot(5 pcs)
    $ 2.22 $ 2.22
    HC-SR501 Human Body Pyroelectricity Infrared PIR Motion Detector Sensor Module
    HC-SR501 Human Body Pyroelectricity Infrared PIR Motion Detector Sensor Module
    $ 0.99 $ 0.99
    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    $ 2.93 $ 2.93

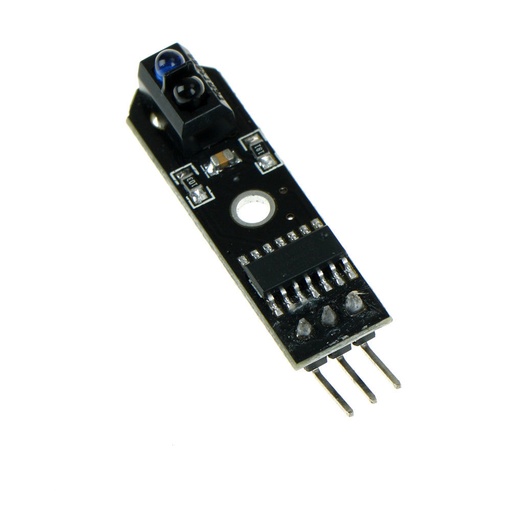

    1 Channel Tracing Module Intelligent Vehicle Tcrt5000 Tracker Sensor Probe
    1 Channel Tracing Module Intelligent Vehicle Tcrt5000 Tracker Sensor Probe
    $ 0.65 $ 0.65

    Description:

    •  1/4'' sensor size

    •  Output support for YUV and YCbCr (4:2:2) formats, RGB (RGB565/555/444), GRB (4:2:2) Raw RGB Data

    • Standard SCCB interface, I2C compatible

    •  High sensitivity for low-light operation

    •  Supports image sizes: QVGA, VGA, and any size scaling down from SXGA to40x30

    Specification:

    • Pixel area: 6 μm x 6 μm

    • Working Temperature: -20℃~70℃

    • Stable work: 0 ℃ to 50 ℃

    • Sensor : OV7725

    • Sensitive array: 640 x480

    • Dormancy < 20 u A

    • Drive Voltage: 3.3V

    • IO voltage : 1.7 V to 3.0 V (internal "to nuclear power 1.8 V)

    •  Dynamic range of 60 dB

    • Browse mode line by line

    • 50dB SNR

    • Electronic exposure lines: 1 through 510

    • The biggest showbiz rate 60 FPS VGA

    • The sensitivity of 3 V/(Lux - SEC)

    Size: Approx. 50x 50x 80mm/ 1.87x 1.97x 3.15inch


    ​
