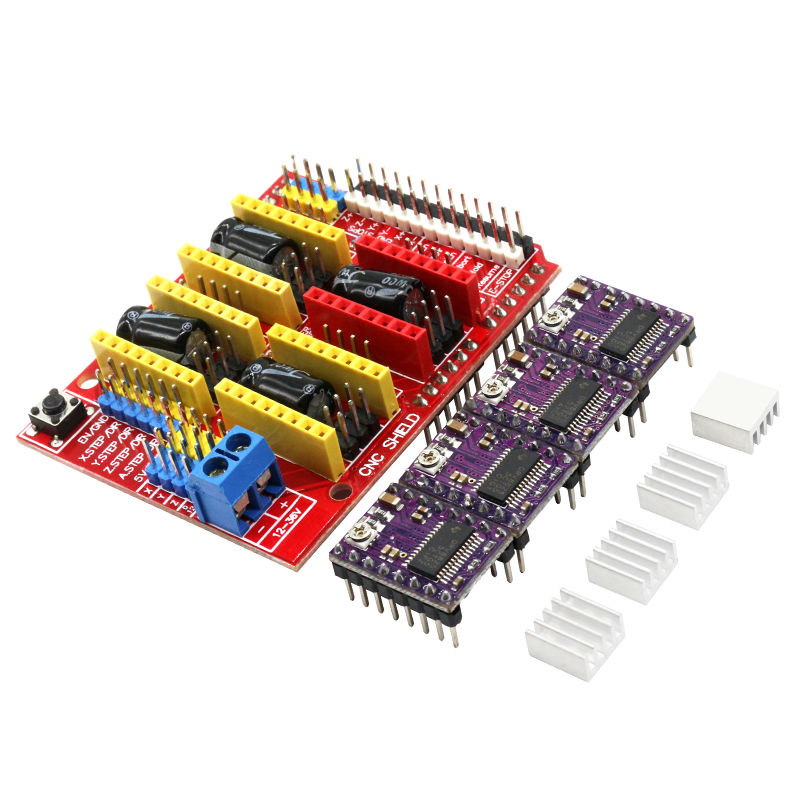

CNC Shield V3 Engraving Machine / 3D Printer / + 4 PCS DRV8825 Driver Expansion Board for Aduino
Categories :3D Printer
A4988 Stepper Motor Driver Board is a breakout board for Allegro's A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
Low RDS (On) Output
Automatic current decay mode detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver. (More generally, rewiring anything while it is powered is asking for trouble).
