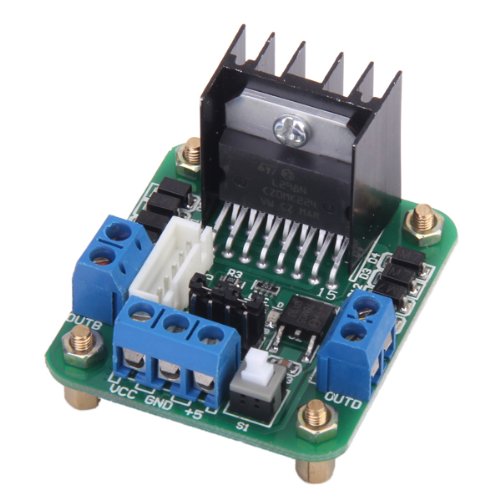

L298N Motor Driver Control Board Module Dual H-bridge Stepper

https://www.satistronics.com/web/image/product.template/3120/image_1920?unique=d27fcb4
(0 review)

$ 3.25 3.25 USD $ 3.25

¥ 22.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Stepper Motor Driver , Power Modules
    SKU :
    180580
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like

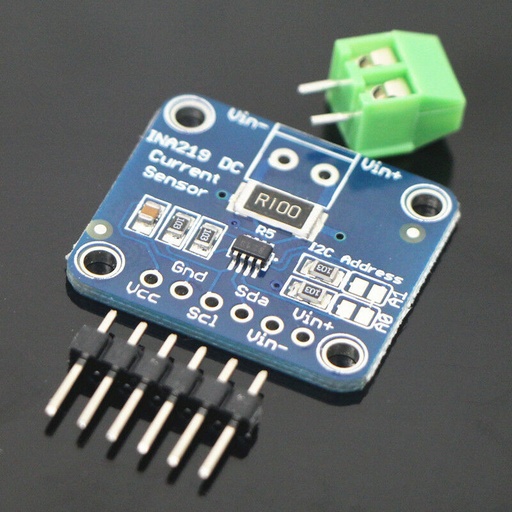

    INA219 I2C Bi-directional DC Current Power Supply Sensor Breakout Module
    INA219 I2C Bi-directional DC Current Power Supply Sensor Breakout Module
    $ 1.92 $ 1.92
    MFRC-522 RFID Wireless IC Module for Arduino
    MFRC-522 RFID Wireless IC Module for Arduino
    $ 1.30 $ 1.30

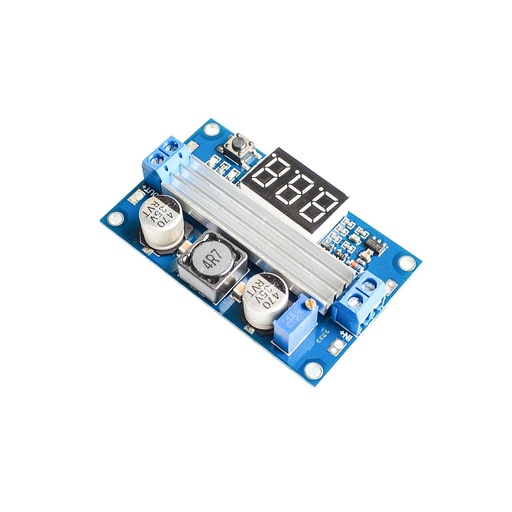

    DC-DC Booster step up module Converter Regulated Power Supply+VoltMeter 3~35V to 3.5~35V
    DC-DC Booster step up module Converter Regulated Power Supply+VoltMeter 3~35V to 3.5~35V
    $ 3.90 $ 3.90
    A73B Infrared Emission Module IR Transmitter for Intelligent Robot Car Accessories
    A73B Infrared Emission Module IR Transmitter for Intelligent Robot Car Accessories
    $ 0.89 $ 0.89
    DC-DC Buck Regulator Power Converter Module 10V 12V 24V 36V Turn 5V/8A 6USB Output
    DC-DC Buck Regulator Power Converter Module 10V 12V 24V 36V Turn 5V/8A 6USB Output
    $ 6.50 $ 6.50
    DC-DC 6V-32V TO 0.8-28V 150W 15A Buck-Boost Voltage Regulator QS-1212CBA-150W
    DC-DC 6V-32V TO 0.8-28V 150W 15A Buck-Boost Voltage Regulator QS-1212CBA-150W
    $ 36.95 $ 36.95

    Parameters:

    • Driver: L298N dual H-bridge DC motor driver IC

    • Drive part of the peak current: 2A

    • Logic terminal power supply: 5 V ~ 7 V (power supply on the board: 5 V)

    • Logic part of the operating current range: 0 ~ 36 mA

    • Control signal input voltage range: Low: 0.3V-1.5V Vin; High: 2.3V Vin Vss

    • DRIVE Power Supply: 5 V ~ 35 V; (If the other must be supplied by the board with electricity, power supply should be 7 V ~ 35 V.)

    • Enable signal input voltage range: Low: - 0.3 V in 1.5V (control signal inactive); High: 2.3V Vin Vss (control signal active)

    • Max. power consumption: 20W (at 75 Celsius)

    • Storage temperature: -25 Celsius ~ 130 Celsius

    ​
