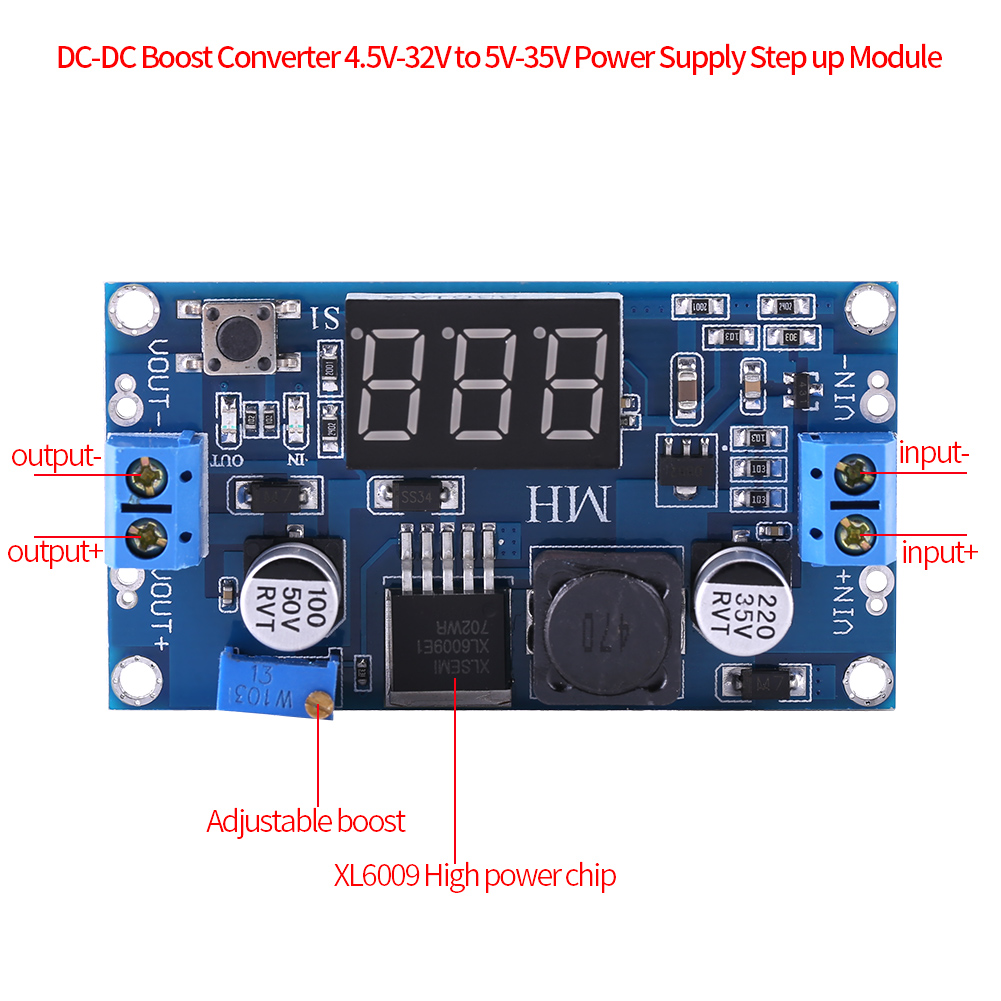

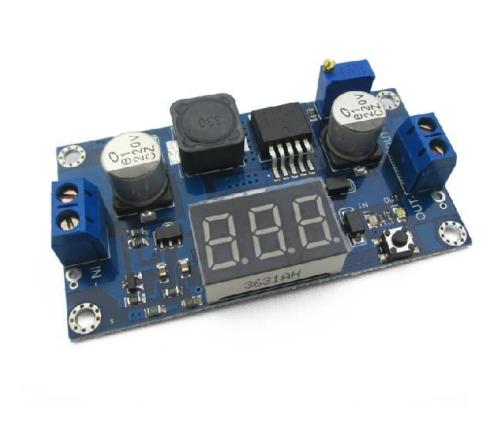

XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter

https://www.qskj.cc/web/image/product.template/5530/image_1920?unique=31bf110
(0 review)

3.48 3.48 USD 3.48

¥ 25.30

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180583
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    • Module Feature: Non-isolation booster

    • Ectifier system:Not synchronous rectifier

    • Input voltage:4.3V-32V

    • Output voltage: 5V-52V

    • Incoming current:4A(maximum)

    • Transfer efficiency:94%(The highest)Normal efficiency for85%

    • Switching frequency:400KHz

    • Output ripple:50mV

    • Load regulation:±0.5%

    • Voltage regulation:±0.5%

    • Operating temperature:-40°~+85°

    • Size:6.98cm*3.80cm

    Function key:

    • Short press: input/output display options

    • Moderate press: Enter the fine-tuning state .Increase or decrease the offset (the default is 0), when the voltage display inaccurate use .Short according to the regulation, long press or long according to restore

    • Long press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click the button again to restore. Normal display

    • Clockwise to adjust output voltage:

    • Clockwise----- increasing voltage

    • Counterclockwise----reduce the voltage
