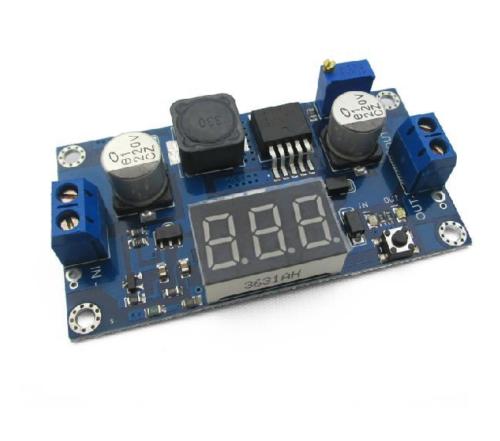

XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter

Description:

• Module Feature: Non-isolation booster

• Ectifier system:Not synchronous rectifier

• Input voltage:4.3V-32V

• Output voltage: 5V-52V

• Incoming current:4A(maximum)

• Transfer efficiency:94%(The highest)Normal efficiency for85%

• Switching frequency:400KHz

• Output ripple:50mV

• Load regulation:±0.5%

• Voltage regulation:±0.5%

• Operating temperature:-40°~+85°

• Size:6.98cm*3.80cm

Function key:

• Short press: input/output display options

• Moderate press: Enter the fine-tuning state .Increase or decrease the offset (the default is 0), when the voltage display inaccurate use .Short according to the regulation, long press or long according to restore

• Long press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click the button again to restore. Normal display

• Clockwise to adjust output voltage:

• Clockwise----- increasing voltage

• Counterclockwise----reduce the voltage
