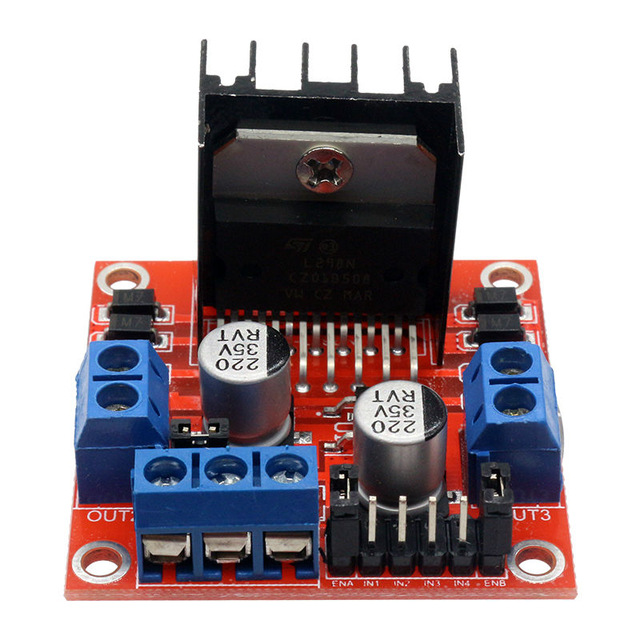

L298N H-Bridge Stepper Motor Driver Module for Arduino

https://www.satistronics.com/web/image/product.template/3119/image_1920?unique=99581fd
(0 review)

$ 1.42 1.42 USD $ 1.42

¥ 10.12

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Stepper Motor Driver , Power Modules
    SKU :
    180593
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like

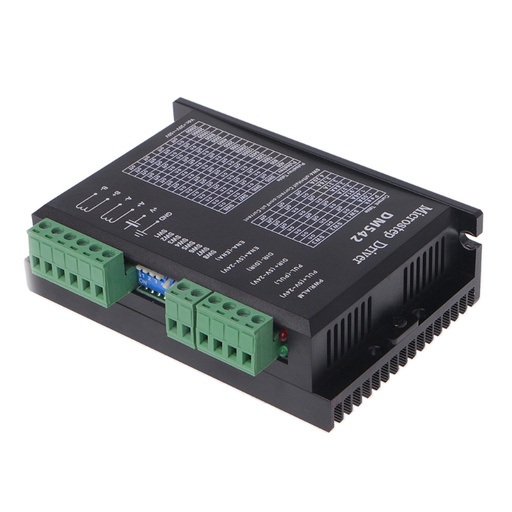

    DM542 Stepper Motor Driver For 57 86 Series 2-phase
    DM542 Stepper Motor Driver For 57 86 Series 2-phase
    $ 15.40 $ 15.40
    PCA9685 Servo Driver Shield V2 For Arduino Replace L293D
    PCA9685 Servo Driver Shield V2 For Arduino Replace L293D
    $ 4.62 $ 4.62
    DC-DC USB Boost Power Regulator Desktop Power Module 5V to 3.3V 9V 12V 24V
    DC-DC USB Boost Power Regulator Desktop Power Module 5V to 3.3V 9V 12V 24V
    $ 3.08 $ 3.08

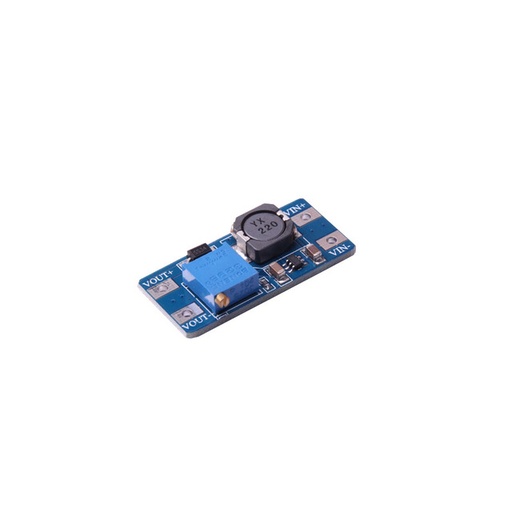

    MT3608 Booster Power Module Board for Arduino DIY Kit
    MT3608 Booster Power Module Board for Arduino DIY Kit
    $ 0.46 $ 0.46

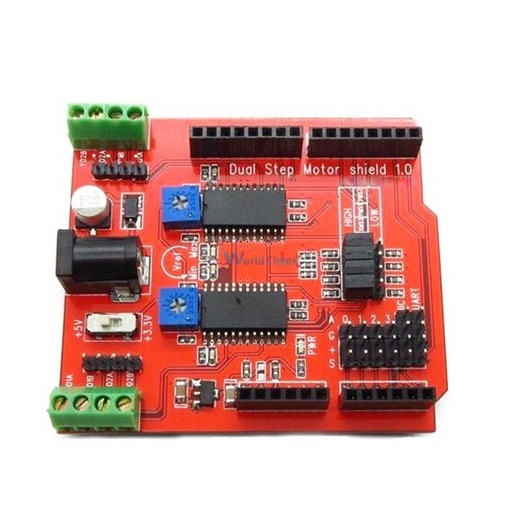

    Dual Step Motor Driver Shield For Arduino IO PWM CNC 3.3V 5V With A3967Chips
    Dual Step Motor Driver Shield For Arduino IO PWM CNC 3.3V 5V With A3967Chips
    $ 9.24 $ 9.24
    28BYJ-48 DC 12V Reduction Step Gear Stepper Motor for Arduino Diy Kit
    28BYJ-48 DC 12V Reduction Step Gear Stepper Motor for Arduino Diy Kit
    $ 0.92 $ 0.92

    Features:

    • Working mode: H bridge (double lines)

    • Control chip: L298N (ST)

    • Logical voltage: 5V

    • Driving voltage: 5V-35V

    • Logical current: 0mA-36mA

    • Driving current: 2A (MAX single bridge)

    • Storage temperature: (-20 °C)-(+135 °C)

    • Maximum power: 25W

    • Weight: 30g

    • Periphery dimension: 43 x 43 x 27mm(L x W x H)

    • Using L298N made by ST company as the control chip, the module has such characteristics as strong driving

    • Ability, low calorific value and strong anti-interference ability.

    • This module can use built-in 78M05 for electric work via a driving power supply part. But to avoid the damage

    • Of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.

    • Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.
