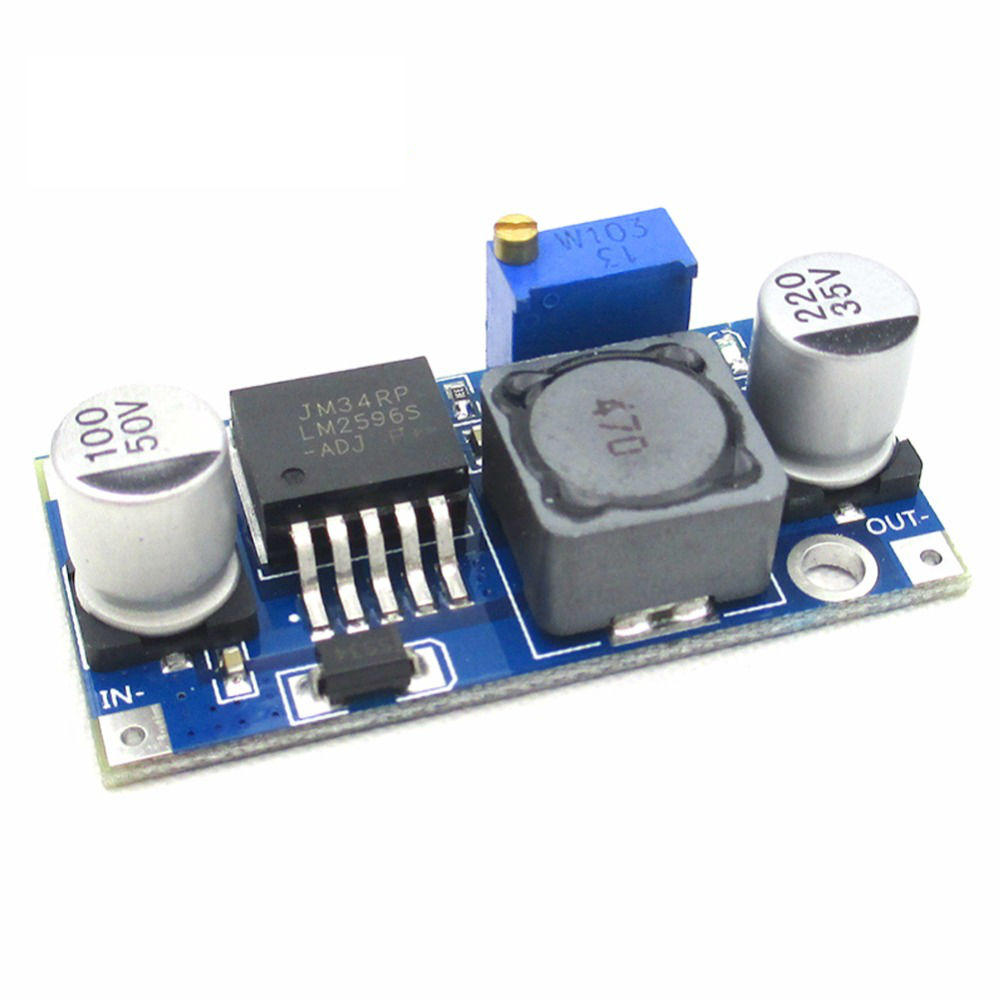

3A 12/24V to 12/5/3.3V LM2596 LM2596S DC-DC Adjustable Step-down Power Supply Module

https://www.satisled.com/web/image/product.template/1063/image_1920?unique=99581fd
(0 review)

0.61 0.61 USD 0.61

¥ 4.40

Not Available For Sale


    This combination does not exist.


    SKU :
    180630
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Description:

    LM2596 LM2596S DC-DC 3A 12/24V to 12/5/3.3V adjustable step-down power Supply module

    • Input voltage :3V ~ 40V

    • The output voltage : 1.5V ~ 35V

    • Output Current :3A( Max)

    • Conversion efficiency:92%( MAX )

    • Output ripple: <30mV

    • Switching frequency: 150KHz

    • Working temperature: -forty Five~ +85

    • Size :45mm * 25mm * 14mm(Long*Width*Hight)

    • The range of input voltage: 3 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

    • The range of output voltage: 1.5 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

    • Power (3-40V), power indicator light, the module is working properly.

    • Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage..

    Note:

    •  Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.

    Specification:

    • Weight: approx 100 g

    • Material: Steel,Plastic
