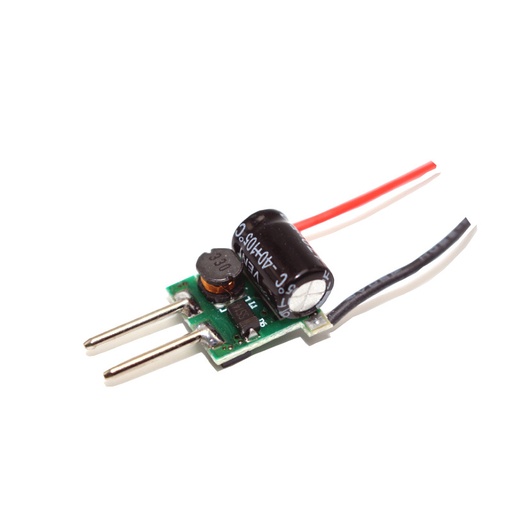

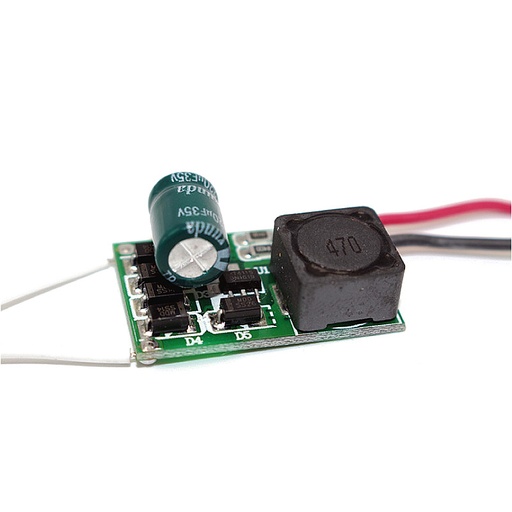

    1-7*1W 300mA Constant Current LED Driver AC/DC24V Input
    1-7*1W 300mA Constant Current LED Driver AC/DC24V Input
    $ 1.26 $ 1.26

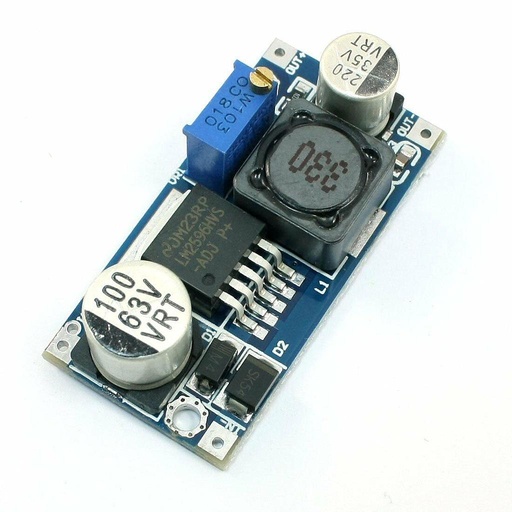

    4.5-50V To 3-35V LM2596HVS DC-DC Adjustable Step Down Buck Converter Power Module
    4.5-50V To 3-35V LM2596HVS DC-DC Adjustable Step Down Buck Converter Power Module
    $ 1.10 $ 1.10

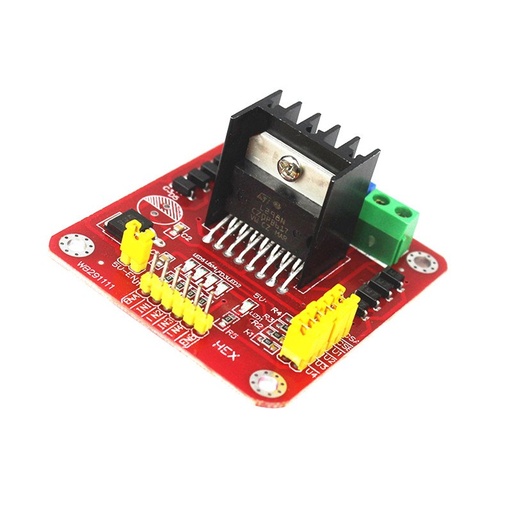

    L298N Motor Driver Controller Board Module Dual H Bridge 1AA700034
    L298N Motor Driver Controller Board Module Dual H Bridge 1AA700034
    $ 2.36 $ 2.36

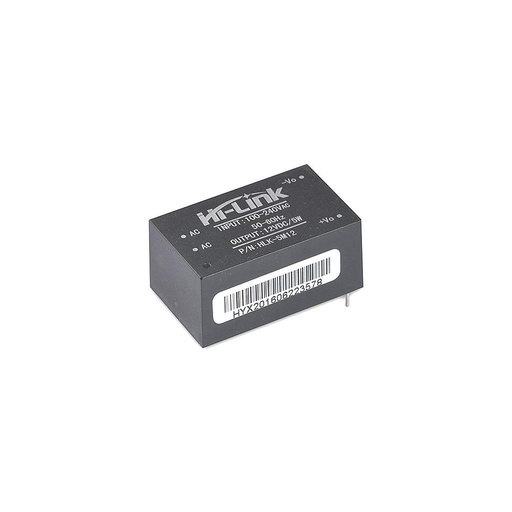

    HLK-5M12 Step Down Buck Power Supply Switch Converter Module AC-DC 220V to 12V 5W
    HLK-5M12 Step Down Buck Power Supply Switch Converter Module AC-DC 220V to 12V 5W
    $ 5.66 $ 5.66

    Description:

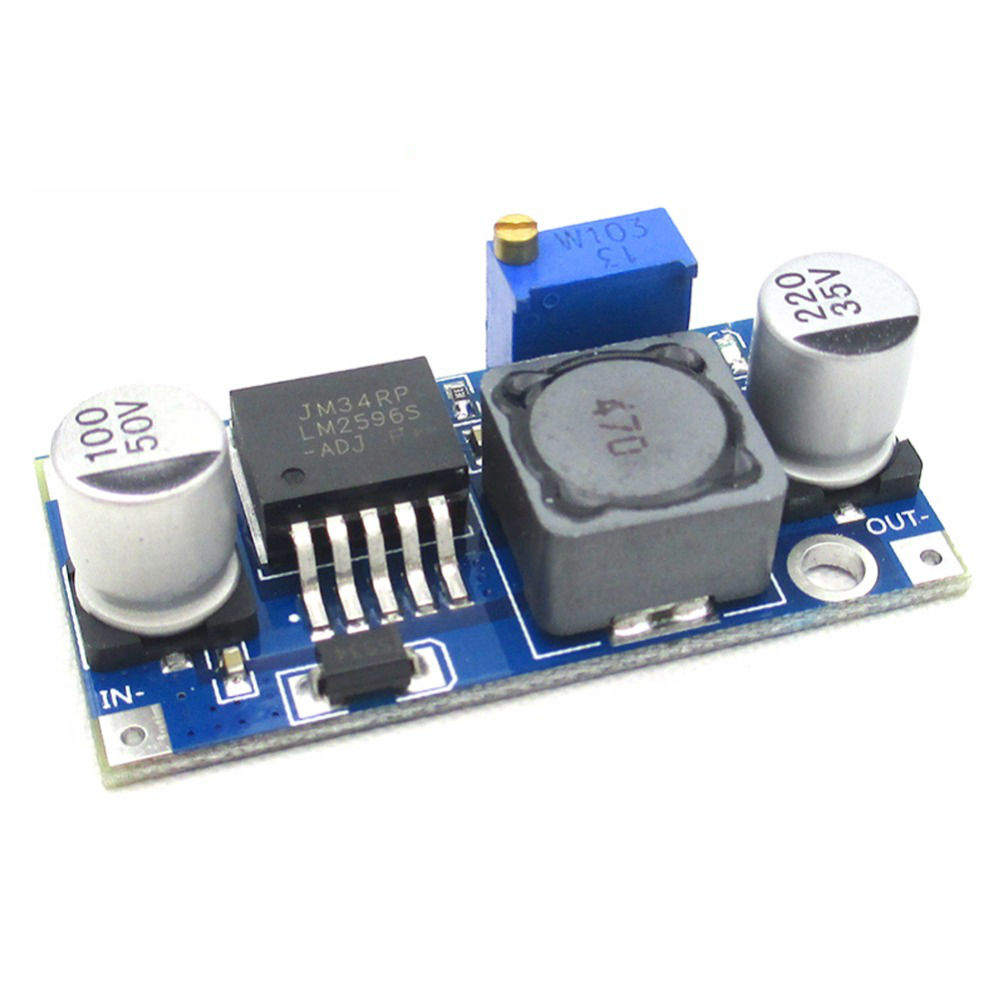

    LM2596 LM2596S DC-DC 3A 12/24V to 12/5/3.3V adjustable step-down power Supply module

    • Input voltage :3V ~ 40V

    • The output voltage : 1.5V ~ 35V

    • Output Current :3A( Max)

    • Conversion efficiency:92%( MAX )

    • Output ripple: <30mV

    • Switching frequency: 150KHz

    • Working temperature: -forty Five~ +85

    • Size :45mm * 25mm * 14mm(Long*Width*Hight)

    • The range of input voltage: 3 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

    • The range of output voltage: 1.5 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

    • Power (3-40V), power indicator light, the module is working properly.

    • Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage..

    Note:

    •  Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.

    Specification:

    • Weight: approx 100 g

    • Material: Steel,Plastic

    ​
