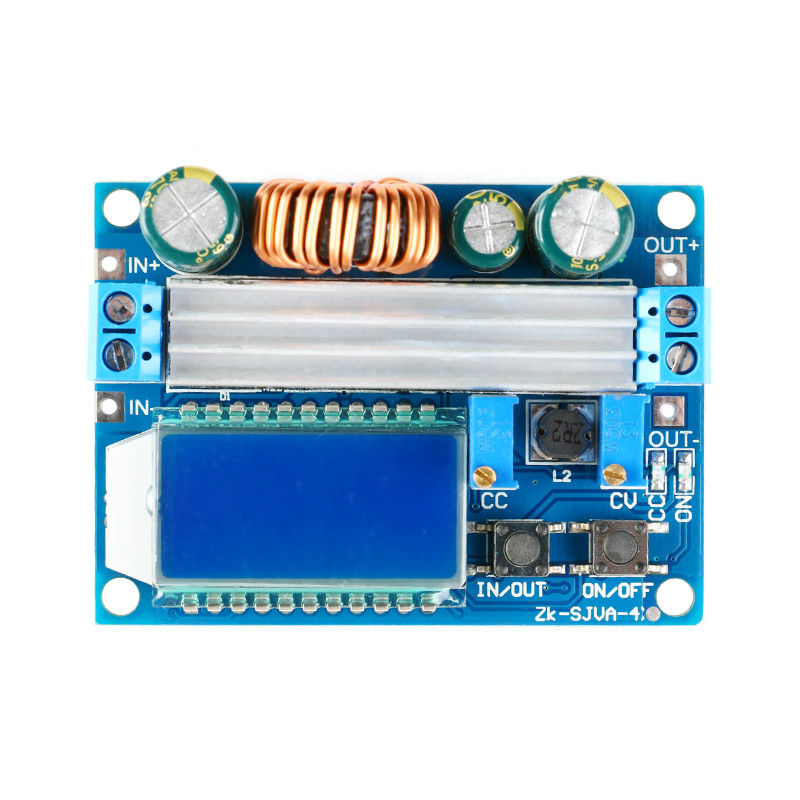

35W Lifting Pressure Step Down Buck Step Up Boost Power Supply Module

https://www.satisled.com/web/image/product.template/1051/image_1920?unique=99581fd
(0 review)

9.78 9.78 USD 9.78

¥ 70.40

Not Available For Sale


    This combination does not exist.


    Categories :
    Power Modules
    SKU :
    180641
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Parameters:

    • Input voltage: 5.5-30V (When the input voltage is 5V, buck-boost can also be achieved, but the voltage and current measurements are inaccurate; under 4.7V, undervoltage protection)

    • Output voltage: 0.5-30V

    • Output current: Can work stably in 3A for a long period of time, and can reach 4A under enhanced heat dissipation

    • Output power: natural heat dissipation 35W, enhanced heat dissipation 50W

    • Voltage display resolution: 0.05V

    • Current display resolution: 0.005A

    • Conversion efficiency: about 88%

    • Soft start: Yes (high power load module may fail at startup)

    • Reverse input protection: Yes

    • Anti-backflow at the output: Yes

    • Short circuit protection: Yes

    • Working frequency: 180KHZ

    • Size: length * width * height 66*48*21mm

    • Mounting hole: diameter 4mm
