35W Lifting Pressure Step Down Buck Step Up Boost Power Supply Module

Price:

$ 1.57
USD
  2. Shop
  3. 35W Lifting Pressure Step Down Buck Step Up Boost Power Supply Module
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
$ 1.57
$ 1.57
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
$ 2.28
$ 2.28

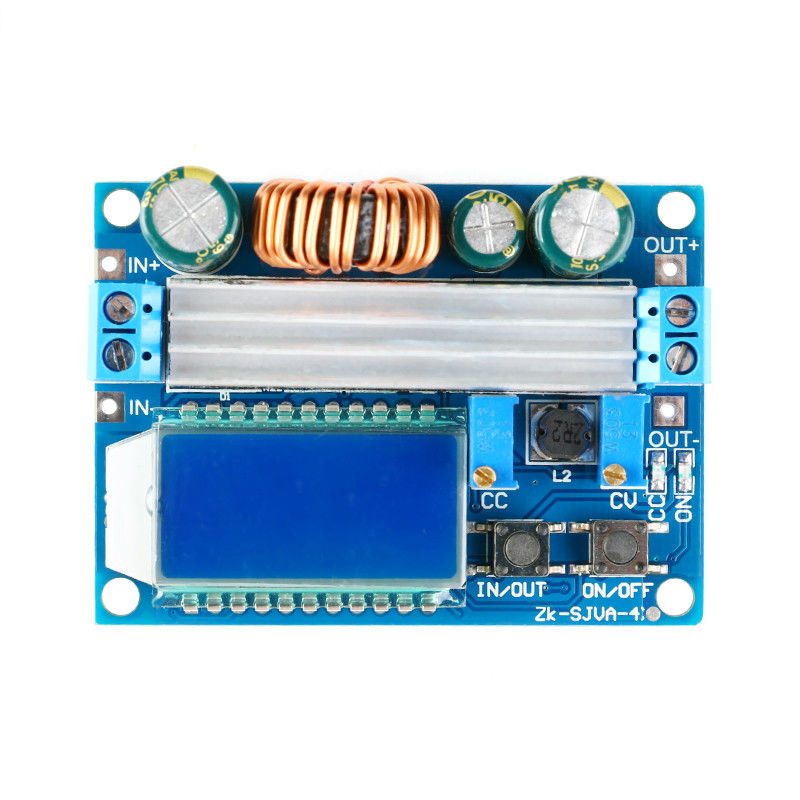

35W Lifting Pressure Step Down Buck Step Up Boost Power Supply Module

https://www.satistronics.com/web/image/product.template/1051/image_1920?unique=3e3d1d1
(0 review)

$ 10.07 10.07 USD $ 10.07

¥ 70.40

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    180641
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    $ 3.62 $ 3.62

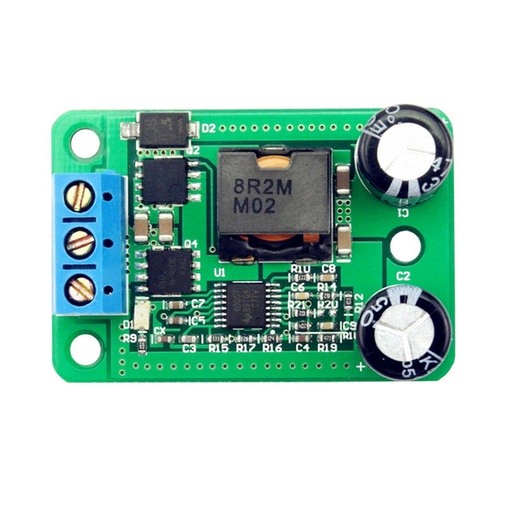

    24V/12V To 5V/5A 25W DC-DC Buck Step Down Power Supply Module Replace 055L LM2596
    24V/12V To 5V/5A 25W DC-DC Buck Step Down Power Supply Module Replace 055L LM2596
    $ 2.99 $ 2.99

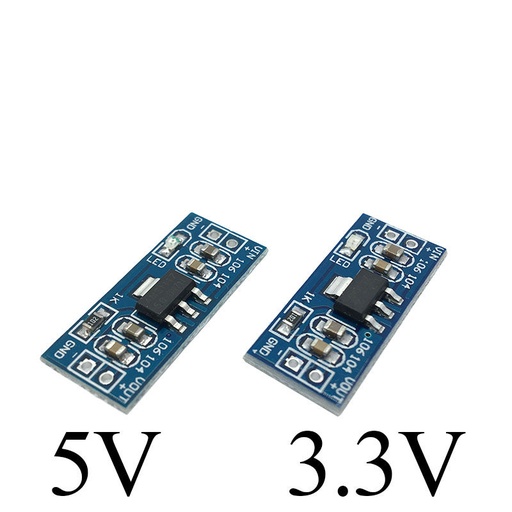

    AMS1117 Power Supply Module for Arduino 3.3V/5V lot(5 pcs)
    AMS1117 Power Supply Module for Arduino 3.3V/5V lot(5 pcs)
    $ 0.71 $ 0.71
    VNH2SP30 Motor Shield Driver Module High Current 30A
    VNH2SP30 Motor Shield Driver Module High Current 30A
    $ 5.98 $ 5.98

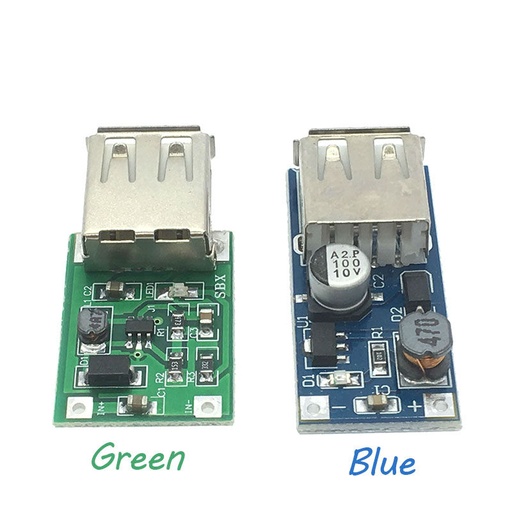

    DC-DC (0.9V-5V) Boost Converter Step Up Module
    DC-DC (0.9V-5V) Boost Converter Step Up Module
    $ 0.35 $ 0.35

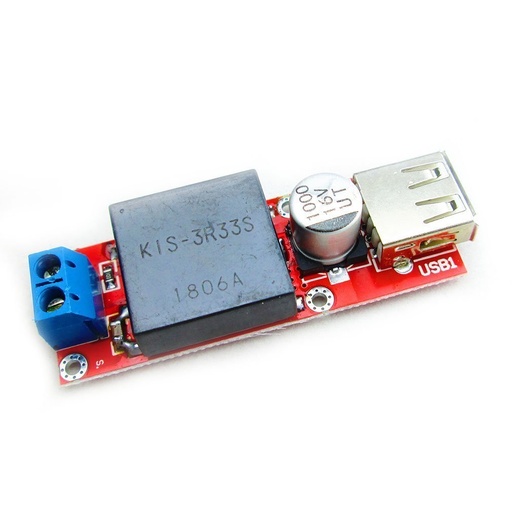

    KIS3R33S DC7V-24V to 5V 3A USB Step Down Module for Arduino
    KIS3R33S DC7V-24V to 5V 3A USB Step Down Module for Arduino
    $ 1.57 $ 1.57

    Parameters:

    • Input voltage: 5.5-30V (When the input voltage is 5V, buck-boost can also be achieved, but the voltage and current measurements are inaccurate; under 4.7V, undervoltage protection)

    • Output voltage: 0.5-30V

    • Output current: Can work stably in 3A for a long period of time, and can reach 4A under enhanced heat dissipation

    • Output power: natural heat dissipation 35W, enhanced heat dissipation 50W

    • Voltage display resolution: 0.05V

    • Current display resolution: 0.005A

    • Conversion efficiency: about 88%

    • Soft start: Yes (high power load module may fail at startup)

    • Reverse input protection: Yes

    • Anti-backflow at the output: Yes

    • Short circuit protection: Yes

    • Working frequency: 180KHZ

    • Size: length * width * height 66*48*21mm

    • Mounting hole: diameter 4mm

    ​
