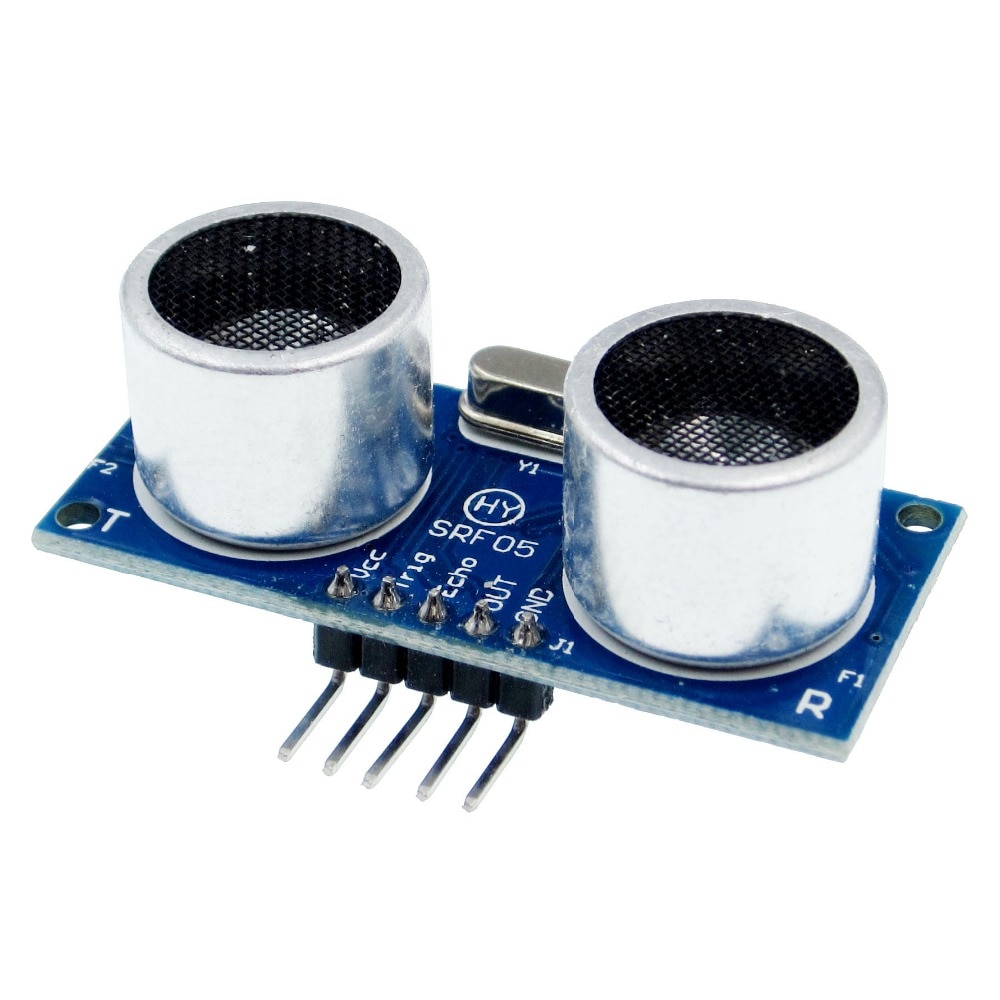

HY-SRF05 SRF05 Ultrasonic Ranging Module Ultrasonic Sensor

https://www.satistronics.com/web/image/product.template/2795/image_1920?unique=d27fcb4
(0 review)

$ 1.40 1.4000000000000001 USD $ 1.40

¥ 9.46

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Ultrasonic Sensor Modules
    SKU :
    180677
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    HC-SR04 Ultrasonic Holder Support Bracket
    HC-SR04 Ultrasonic Holder Support Bracket
    $ 0.16 $ 0.16
    TTP223 Capacitive Touch Switch Button Self-Lock Module for Arduino
    TTP223 Capacitive Touch Switch Button Self-Lock Module for Arduino
    $ 1.02 $ 1.02
    HC-SR04 Ultrasonic Distance Sensor module
    HC-SR04 Ultrasonic Distance Sensor module
    $ 0.89 $ 0.89
    T32 Touch Sensor Module 1 Channel Touch Switch lot(10 pcs)
    T32 Touch Sensor Module 1 Channel Touch Switch lot(10 pcs)
    $ 1.27 $ 1.27
    B17 High Level Non-modulator Laser Receiver Sensor Module for Arduino
    B17 High Level Non-modulator Laser Receiver Sensor Module for Arduino
    $ 0.89 $ 0.89
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    $ 0.89 $ 0.89

    Description

    • Detecting range: 3cm-4M

    • Best in 30 degree angle

    • Electronic brick compatible interface

    • 5VDC power supply

    • Breadboard friendly

    • Dual transducer

    • Arduino library ready

    • Specification:

    • Working Voltage: 5V (DC)

    • Static current: Less than 2mA

    • Output signal: Electric frequency signal, high level 5V, low level 0V

    • Sensor angle: Not more than 15 degrees

    • Detection distance: 2cm-450cm

    • High precision: Up to 0.3cm

    • Working tempter:-20C___+60C

    • Weight: 10

    • Size: 45x 21mm (L x W)

    • Connector Pin:

    • VCC

    • Trig (T)

    • Echo(R)

    • OUT

    • GND

    ​
