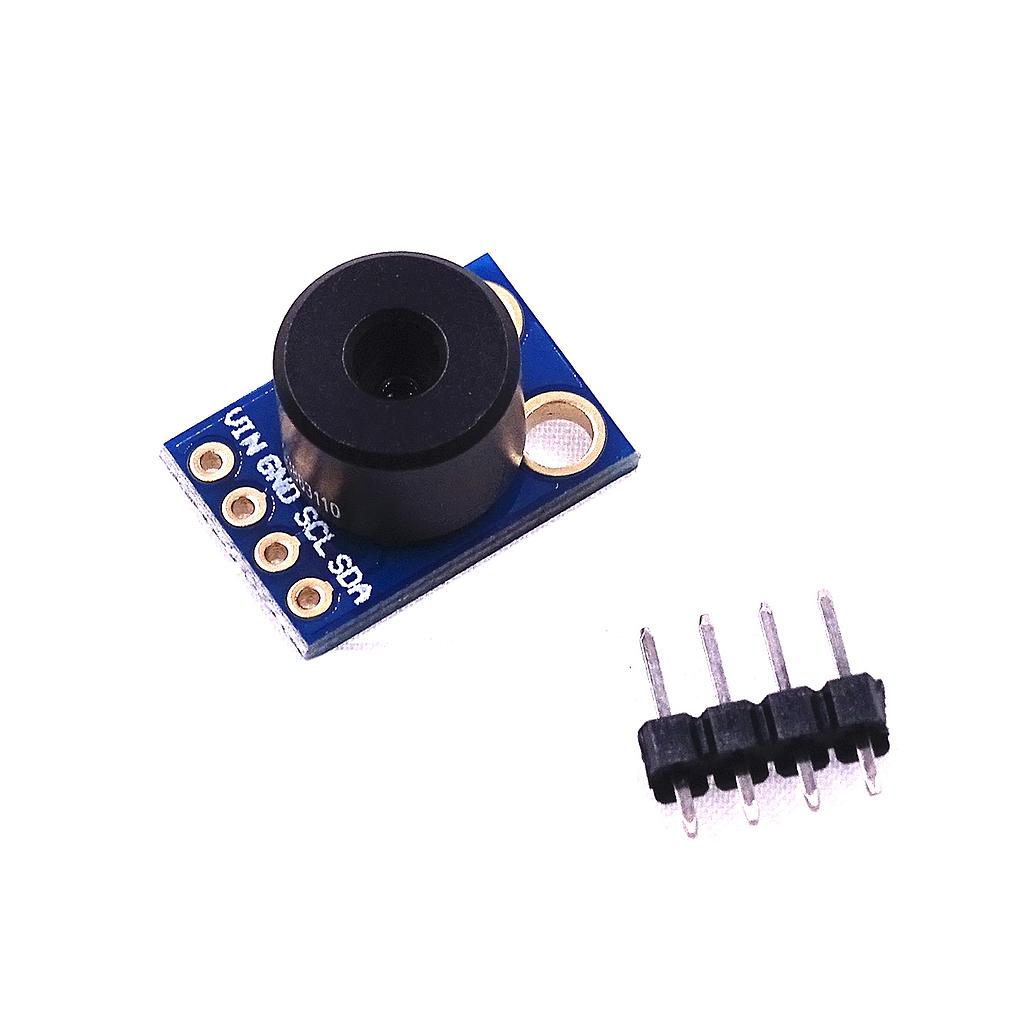

GY-MLX90614-DCI IIC Long Distance Infrared Temperature Sensor Module Small Angle

Parameters:

• Chip:MLX90614ESF-BCC

• Voltage:3-5V

• Communication: standard IIC communication protocol

• Small size, low cost

• Mounted on a breakout board with two types of pins

• 10k Pull up resistors for the I2C interface with optional solder jumpers

• Easy to integrate

• Factory calibrated in wide temperature range:

• -40...+125°C for sensor temperature and

• -70...+380°C for object temperature.

• High accuracy of 0.5°C over wide temperaturerange (0...+50°C for both Ta and To) High (medical) accuracy calibration

• Measurement resolution of 0.02°C

• Single and dual zone versions

• SMBus compatible digital interface

• Customizable PWM output for continuousreading

• Simple adaptation for 8...16V applications

• Sleep mode for reduced power consumption

• Different package options for applications andmeasurements versatility

• Automotive grade
