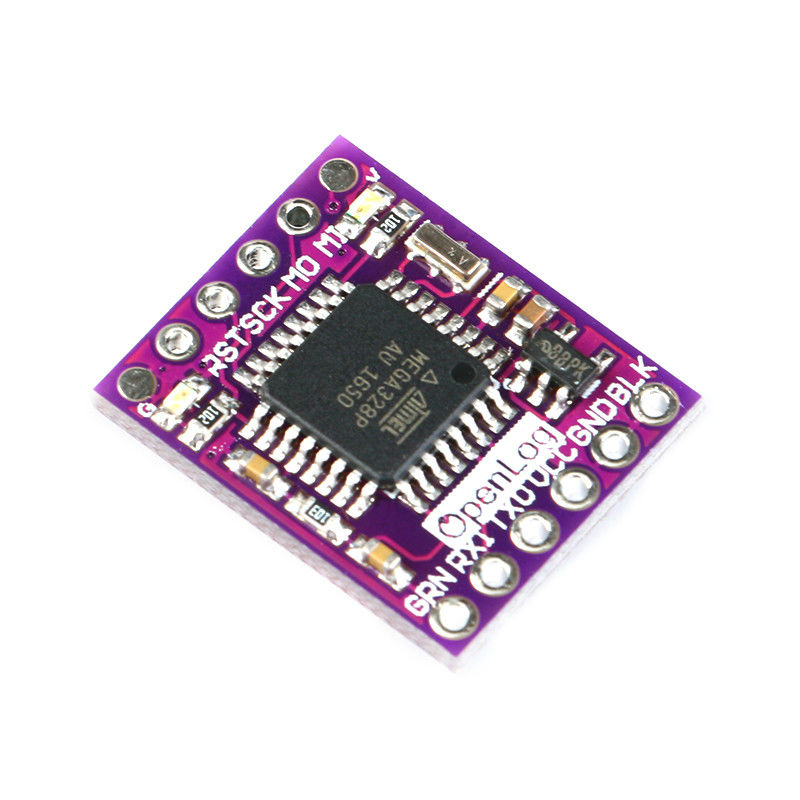

GY-Openlog Cleanflight Naze32 F3 Blackbox Flash Recorder

https://www.satistronix.com/web/image/product.template/2678/image_1920?unique=8cf0d0c
(0 review)

$ 7.25 7.25 USD $ 7.25

¥ 50.60

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    GY Modules
    SKU :
    180739
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    GY-9960-3.3 APDS-9960 RGB Gesture Sensor Interface Detectoin Proximity Sensing Modules 3.3V for Arduino
    GY-9960-3.3 APDS-9960 RGB Gesture Sensor Interface Detectoin Proximity Sensing Modules 3.3V for Arduino
    $ 2.74 $ 2.74
    GY-50 L3G4200D Triple Axis Gyro Angular Velocity Sensor Module For Arduino
    GY-50 L3G4200D Triple Axis Gyro Angular Velocity Sensor Module For Arduino
    $ 2.68 $ 2.68
    GY-291 ADXL345 3-Axis Digital Gravity Sensor Acceleration Module For Arduino
    GY-291 ADXL345 3-Axis Digital Gravity Sensor Acceleration Module For Arduino
    $ 1.09 $ 1.09
    GY-271M 3-Axis Compass Magnetometer Sensor Module Replaces HMC5883L
    GY-271M 3-Axis Compass Magnetometer Sensor Module Replaces HMC5883L
    $ 4.73 $ 4.73
    GY-21 Temperature Sensor Module Low Power CMOS 10*12mm
    GY-21 Temperature Sensor Module Low Power CMOS 10*12mm
    $ 4.73 $ 4.73
    GY-273 Triple Axis Compass Magnetometer Sensor Module For Arduino
    GY-273 Triple Axis Compass Magnetometer Sensor Module For Arduino
    $ 5.04 $ 5.04

    Parameters:

    • Input voltage 3.3V ~ 12V (recommended for 3.3V ~ 5V)

    • Memory format is FAT32, supports up to 64GB of memory

    • UART serial interface

    • Baud rate adjustable

    • The default bootloader is pro mini atmega328P 5V 16mhz

    • Support stored to fat16 / fat32 format tf card, storage capacity up to 32G

    • It has a simple command line interface

    • Change the tf card's config file on your computer (if it's a new card, insert the card for the first time after power-on, the config file will be created automatically) to change settings such as baud rate. You do not need to buy any specialized tools to change the serial settings to use your needs.

    • Three modes: new, add, command

    • Baud rate can be set 300-1000000bps

    • To ensure the operation of the minimum connection vcc, gnd, rx

    • Two led lights indicate the running status

    • Input voltage 3.3V to 12V, preferably 3.3 to 5V.

    • Idle current 2ma, the maximum recording rate 6ma.

    ​
