MPU-6500 GY-6500 3 Axis Accelerometer Sensor Module Replace MPU6000

https://www.satistronix.com/web/image/product.template/3766/image_1920?unique=3487516
(0 review)

$ 2.84 2.84 USD $ 2.84

¥ 19.80

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    GY Modules
    SKU :
    180749
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    GY-VEML6070 UV Sensitivity Detection Sensor Baord Module GY-6070 For Arduino
    GY-VEML6070 UV Sensitivity Detection Sensor Baord Module GY-6070 For Arduino
    $ 4.73 $ 4.73
    GY-Openlog Cleanflight Naze32 F3 Blackbox Flash Recorder
    GY-Openlog Cleanflight Naze32 F3 Blackbox Flash Recorder
    $ 7.25 $ 7.25
    GY-US42 Flight Control Ultrasonic Ranging Module Replace MB1242 / SRF02
    GY-US42 Flight Control Ultrasonic Ranging Module Replace MB1242 / SRF02
    $ 11.19 $ 11.19
    GY-9255 MPU9255 Gyroscope Accelerometer Magnetic Field Sensor Module
    GY-9255 MPU9255 Gyroscope Accelerometer Magnetic Field Sensor Module
    $ 5.99 $ 5.99
    GY-3110 MAG3110 Triple 3 Axis Magnetometer Breakout Electronic Compass Sensor Module
    GY-3110 MAG3110 Triple 3 Axis Magnetometer Breakout Electronic Compass Sensor Module
    $ 3.94 $ 3.94

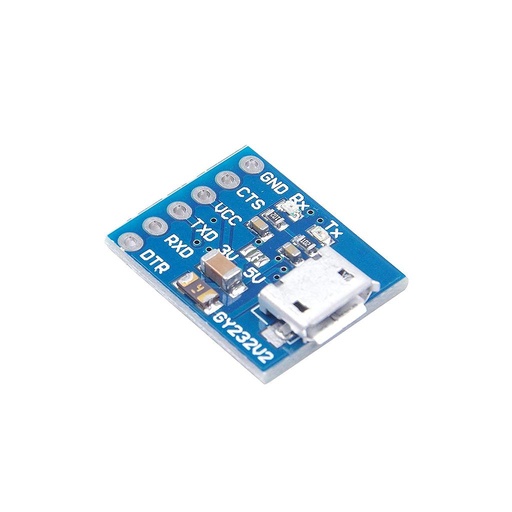

    GY232V2 MICRO FT232RL USB Transfer Serial Line Download Line
    GY232V2 MICRO FT232RL USB Transfer Serial Line Download Line
    $ 5.51 $ 5.51

    Features

    • This module contains 16-bit ADC output of 3 axis accelerator and 3 axis gyro

    • Model: GY-6500

    • Chip:   MPU6500

    • Power voltage: 3 - 5V

    • Communication mode: I2C/SPI Communication Protocol

    • Gyro range: +/-250, +/-500, +/-1000, +/-2000 dps

    • Accelerator range: +/-2G, +/-4G, +/-8G, +/-16G

    • Register:   1MHz

    • SPI / I2C: 400KHz

    • Gyro working current: 3.2mA

    • Gyro sleeping current:  8uA

    • Accelerator working current: 450uA

    • Accelerator sleeping current: 8uA

    • Size:  15mm*25mm

    ​
