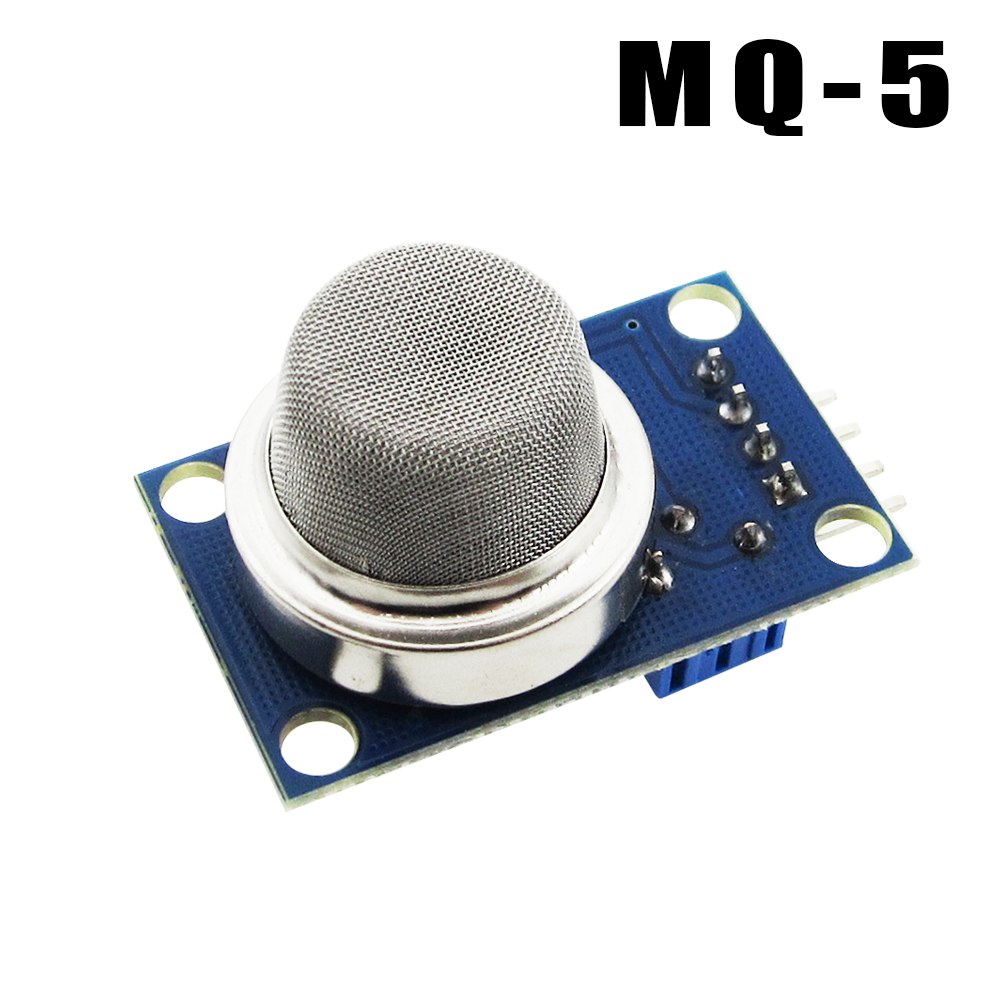

MQ-5 Gas Sensor Module

https://www.satistronics.com/web/image/product.template/3783/image_1920?unique=d27fcb4
(0 review)

$ 1.30 1.3 USD $ 1.30

¥ 8.80

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Gas / PM2.5/ Alcohol
    SKU :
    180829
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like

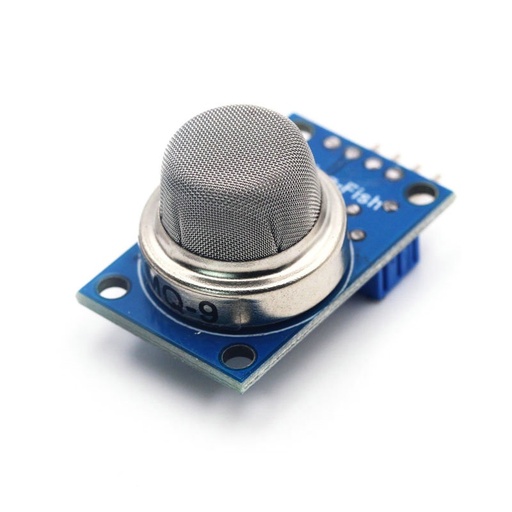

    MQ9 Carbon Monoxide Alarm Combustible Gas Sensor Module for Arduino
    MQ9 Carbon Monoxide Alarm Combustible Gas Sensor Module for Arduino
    $ 1.63 $ 1.63
    MQ-3 Alcohol decector sensor Module
    MQ-3 Alcohol decector sensor Module
    $ 2.44 $ 2.44

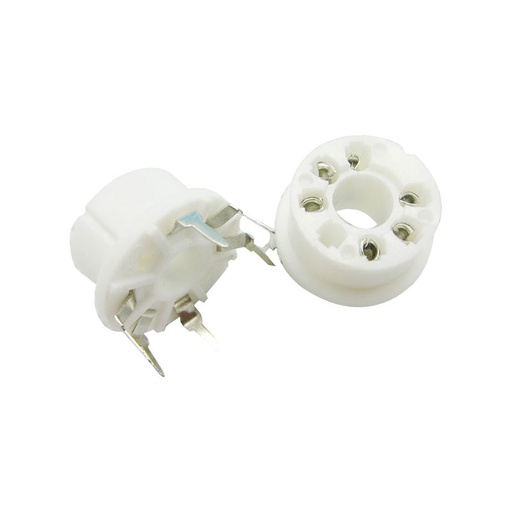

    6 Pin MQ Series Sensors MQ-2 MQ-3 MQ-5 MQ-9 Cradle Socket Base
    6 Pin MQ Series Sensors MQ-2 MQ-3 MQ-5 MQ-9 Cradle Socket Base
    $ 0.26 $ 0.26
    MQ4 Gas Methane Sensor Module
    MQ4 Gas Methane Sensor Module
    $ 1.30 $ 1.30

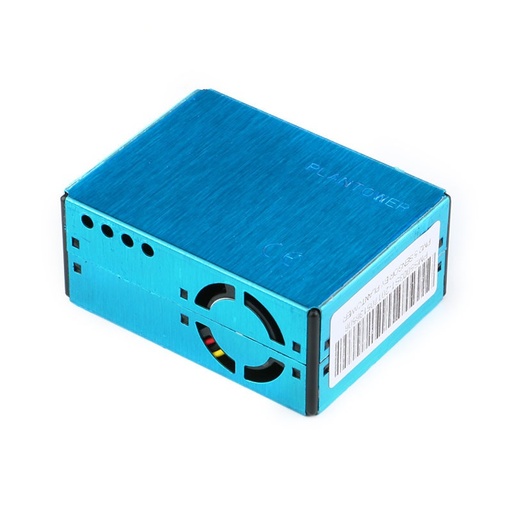

    PMS5003ST PM2.5 Formaldehyde Temperature and Humidity laser Sensor Digital Module
    PMS5003ST PM2.5 Formaldehyde Temperature and Humidity laser Sensor Digital Module
    $ 42.27 $ 42.27

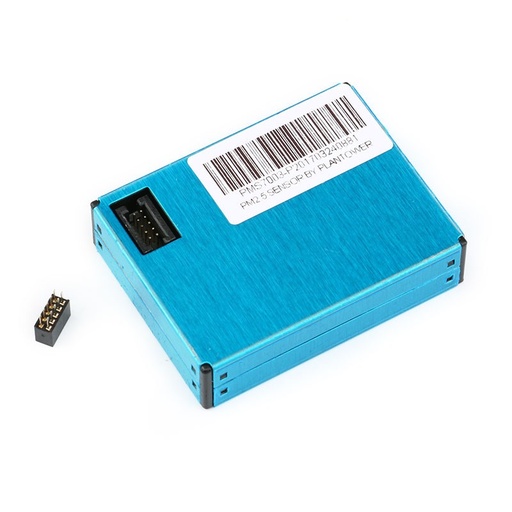

    PMS7003 PM2.5 Air Particle Dust laser Sensor Module
    PMS7003 PM2.5 Air Particle Dust laser Sensor Module
    $ 24.39 $ 24.39

    Description

    • MQ-5 is a highly sensitive gas sensor which is capable of detecting liquefied gas, methane, propane, butane, and other combustible gases in the air.

    • MQ-5 gas sensor module is very useful for gas leak detector, other industrial combustible gas detector and gas monitoring devices to be used at home.

    • It has excellent resistance to ethanol and other smoke interference.

    Features

    • High quality dual panel design

    • Dual signal output (analog, TTL level)

    • Onboard LED indicator

    • Higher voltage when concentration is higher

    • Higher sensitivity to liquefied petroleum gas, natural gas

    • Reliable stability and long life

    • Adjustable sensitivity via potentiometer

    Specifications

    • Detecting Concentration: 300 to 10000 ppm

    • Input Voltage: 5 VDC

    • Power: 150 mA

    • Digital Output Voltage: TTL digital 0 and 1 (0.1 V and 5 V)

    • Analog Output Voltage (relatively clean): 0.1 V to 0.3 V

    • Analog Output Voltage (highest concentration): 4 V

    • PCB Size: 32 x 20 x 22 mm

    ​
