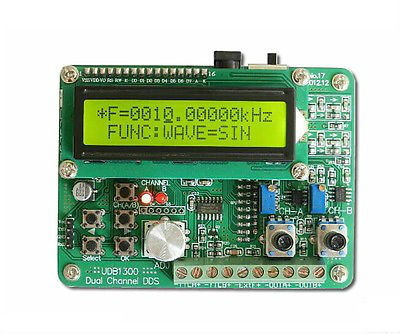

UDB1308S Dual DDS Source TTL Signal Generator Sweep Frequency Counter Module 60MHz

Parameters:

• Signal Output function:

• Output amplitude >=9Vp-p (signal output,no load)(MAX)

• About 0.1Vp-p(MIN)

• Output impedance 50 omega +/-10%

• DC offset +/-2.5V(no load)

• Display LCD1602

• Frequency range 0.01Hz - 2MHz(UDB1302)

• 0.01Hz - 5MHz(UDB1305)

• 0.01Hz - 8MHz(UDB1308)

• Resolution 0.01Hz(10mHz)

• Frequency Stability +/-1x10-6

• Frequency accuracy +/-5x0-6

• Sine wave distortion <=0.8%(reference frequency is 1kHz)

• Trinagle linearity >=98%(0.01Hz-10kHz)

• Rise and fall time of square wave <=100ns

• Square Wave Duty range 1%-99%

• TTL Output function：

• Frequency range 0.01Hz - 2MHz( UDB1302S)

• 0.01Hz - 5MHz( UDB1305S)

• 0.01Hz - 8MHz( UDB1308S)

• Amplitude >3Vp-p

• Fan Out >20 TTL loads

• COUNTER function：

• Counter Range 0-4294967295

• Frequency Meter Range 1Hz-60MHz

• Input Voltage Range 0.5Vp-p -20Vp-p

• SWEEP function(as for UDB100xS series)

• Frequency range fM1 to fM2

• Sweep time 1s-99s

• Others function:

• Save and Load Parameter M0-M9(M0:default load)
