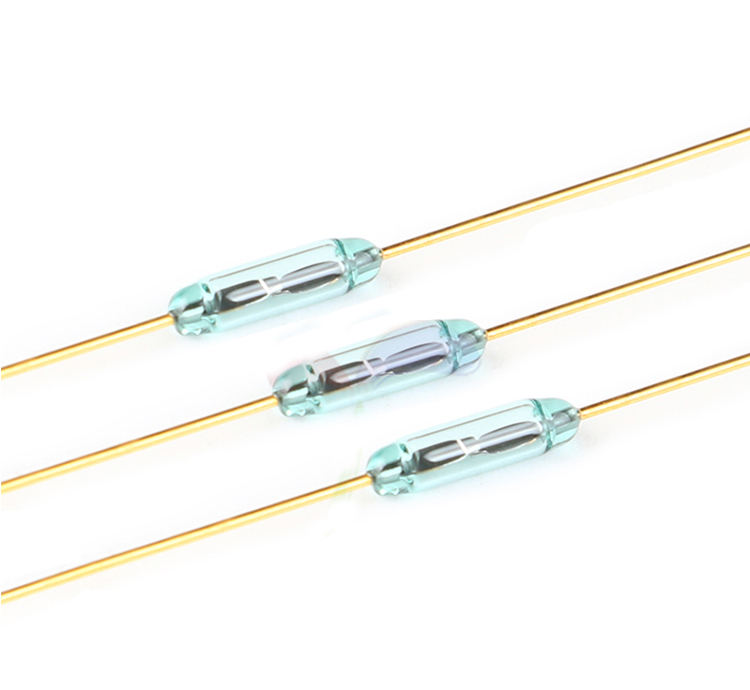

MKA-07101 1.8*7mm Reed Switch Sensor Normally Open lot(10 pcs)

https://www.satistronics.com/web/image/product.template/3660/image_1920?unique=d27fcb4
(0 review)

$ 4.23 4.23 USD $ 4.23

¥ 28.60

Not Available For Sale

($ 0.42 / Unit(s))

    This combination does not exist.

    Contact Us
    Categories :
    Hall Sensor | Reed Switch
    SKU :
    1814746
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    GPS-14B 14mm Reed Switch Sensor Normally Close lot(10 pcs)
    GPS-14B 14mm Reed Switch Sensor Normally Close lot(10 pcs)
    $ 6.18 $ 6.18
    Reed Switch Sensor Module
    Reed Switch Sensor Module
    $ 0.72 $ 0.72
    RI-01C 1.8*13.5mm Reed Switch Sensor Normally Open lot(10 pcs)
    RI-01C 1.8*13.5mm Reed Switch Sensor Normally Open lot(10 pcs)
    $ 2.96 $ 2.96
    GPS-14A 14mm Reed Switch Sensor Normally Open lot(10 pcs)
    GPS-14A 14mm Reed Switch Sensor Normally Open lot(10 pcs)
    $ 4.88 $ 4.88
    XD-78 Reed Switch Sensor Module Magnetron Module for Arduino
    XD-78 Reed Switch Sensor Module Magnetron Module for Arduino
    $ 0.59 $ 0.59
    4*28MM Reed Switch Sensor Normally Open lot(10 pcs)
    4*28MM Reed Switch Sensor Normally Open lot(10 pcs)
    $ 2.77 $ 2.77

    Parameters:

    • Switching current: 0.1-0.2A

    • Switching voltage: 100-125V

    • Contact load: 10W

    • Startup value: 10-35AT

    • Contact method: A

    • Resistance: 620ohm

    • Load: 24V-250MA-106

    • Electrical life: 5V-10MA-2X106

    • Contact Capacitor MAX: 0.3PF

    • Reset sensitivity value MIN: 5AT

    • Working frequency max : 400hz

    • Response frequency: 3000HZ

    • Release time: 0.4ms

    • Bouncing time: 0.2ms

    • Action time: 0.6ms

    • Insulation resistance MIN: 109OHM

    • Contact resistance MAX: 200MOHM

    ​
