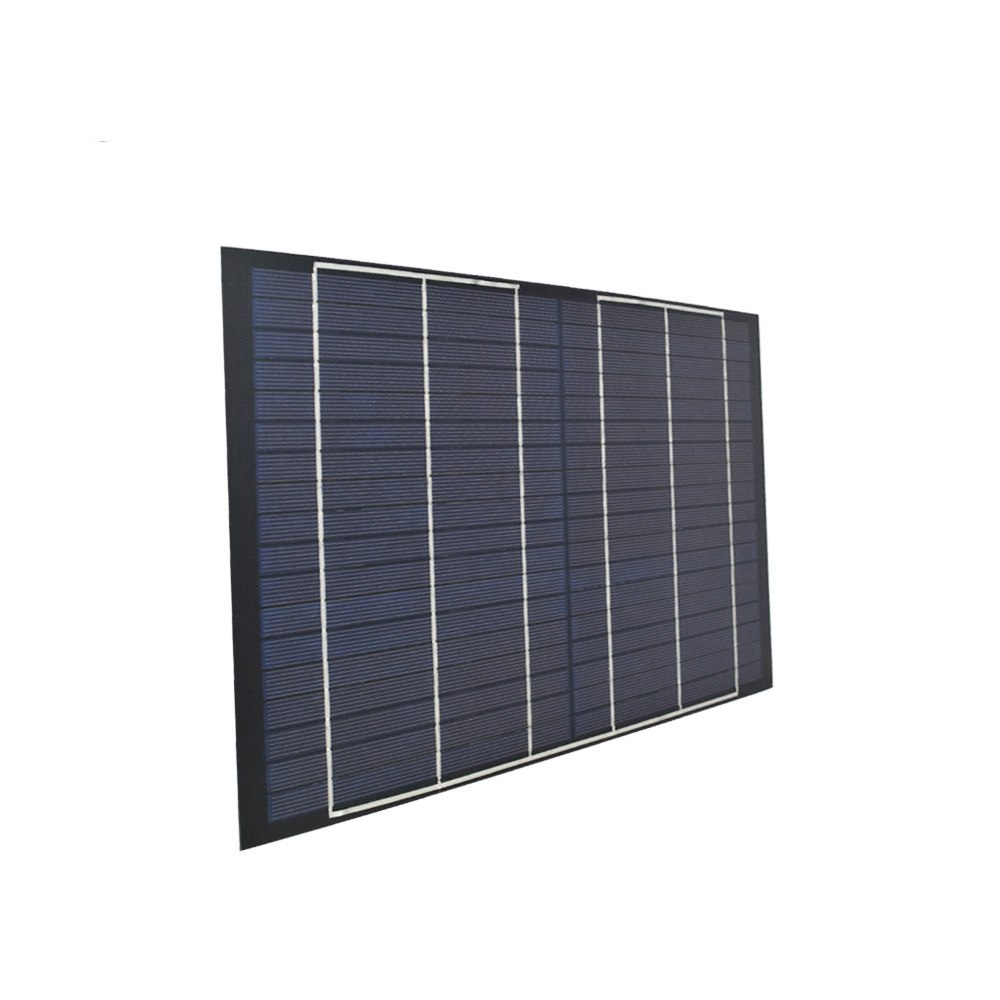

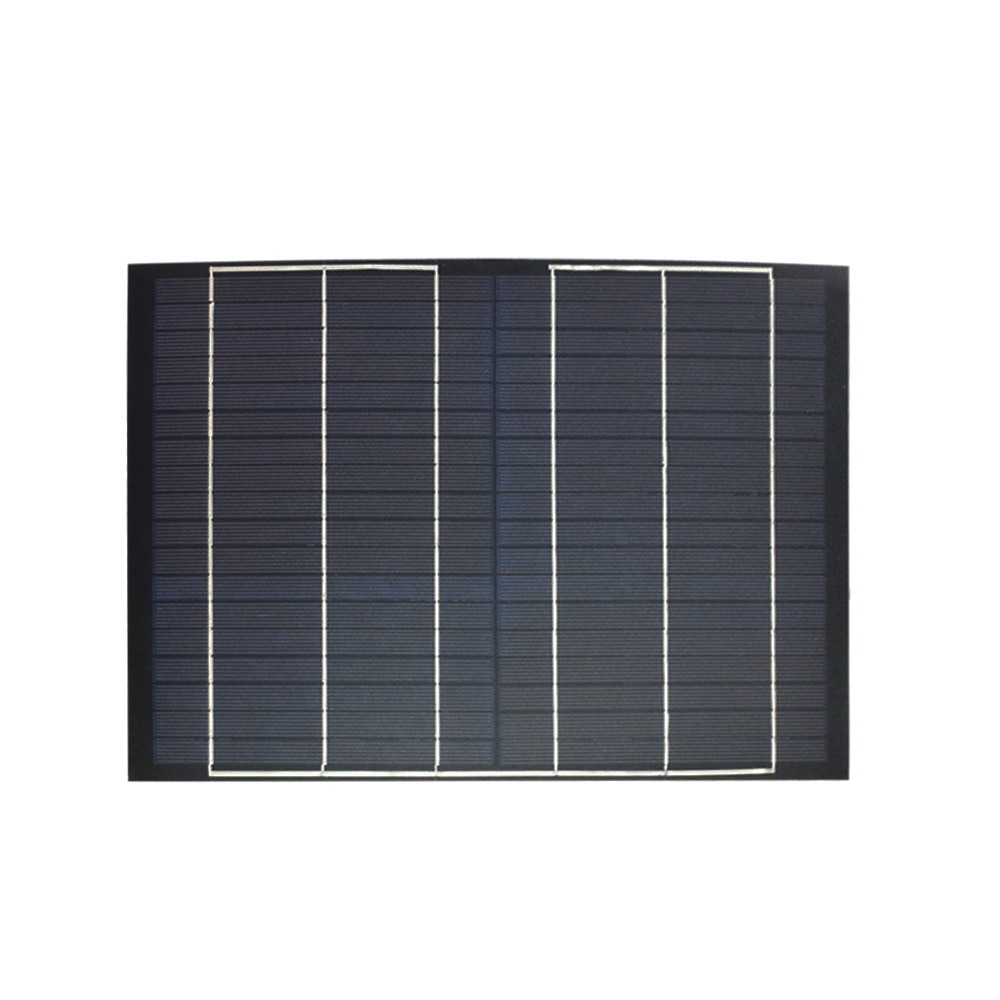

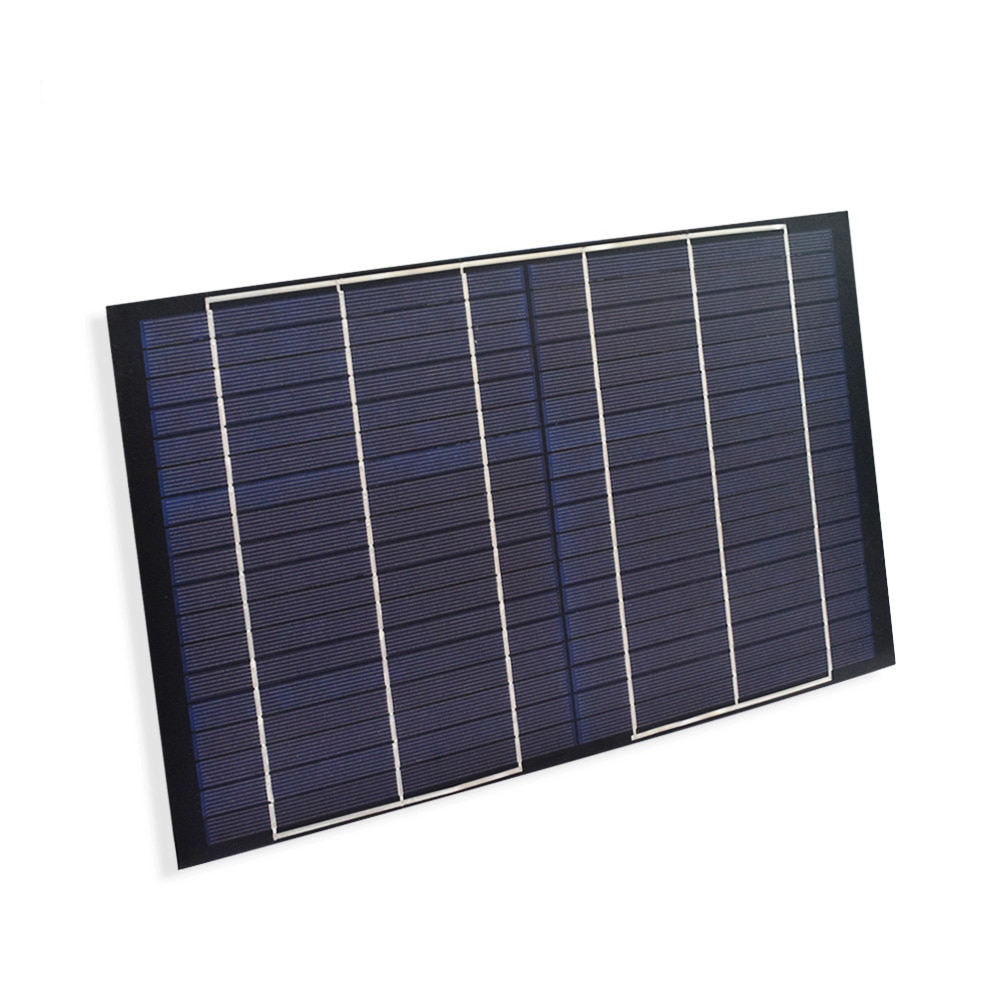

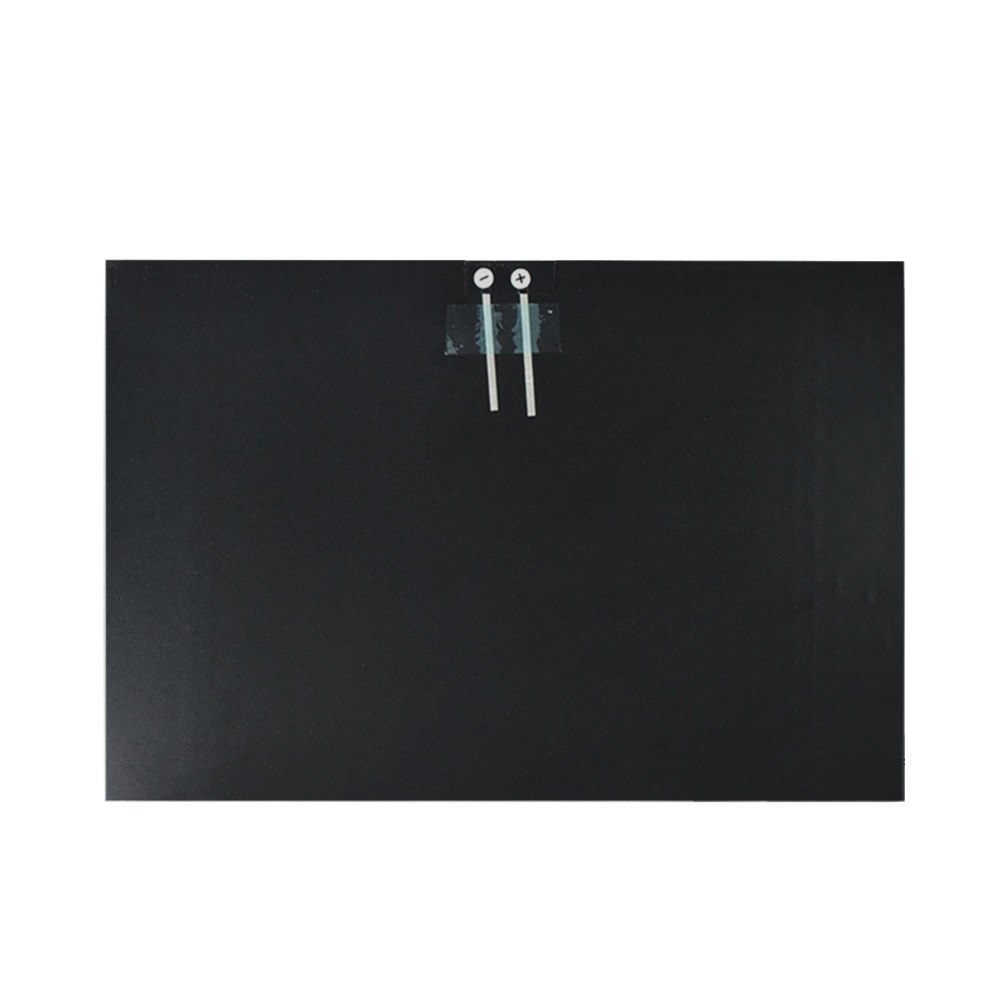

10W 18V Polysilicon Mini Solar Panel for 12V Battery Light

https://www.satistronics.com/web/image/product.template/567/image_1920?unique=d27fcb4
(0 review)

$ 17.73 17.73 USD $ 17.73

¥ 119.90

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Flexible Solar Panel
    SKU :
    1936127
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    6W 6V Monocrystalline Flexible Solar Panel
    6W 6V Monocrystalline Flexible Solar Panel
    $ 15.62 $ 15.62
    100W 18V Flexible Solar Panel Battery Charger
    100W 18V Flexible Solar Panel Battery Charger
    $ 201.71 $ 201.71
    30W 18V Monocrystalline Flexible Solar Panel Battery Charger
    30W 18V Monocrystalline Flexible Solar Panel Battery Charger
    $ 93.70 $ 93.70
    10W 6V Flexible Solar Panel Battery Charger
    10W 6V Flexible Solar Panel Battery Charger
    $ 16.92 $ 16.92
    0.5W 2V Amorphous Silicon Thin Film Flexible Solar Panel
    0.5W 2V Amorphous Silicon Thin Film Flexible Solar Panel
    $ 7.81 $ 7.81
    20W 18V Polysilicon Flexible Solar Panel
    20W 18V Polysilicon Flexible Solar Panel
    $ 18.22 $ 18.22

    Parameters:

    • Maximum power(Pmax): 10W

    • Output tolerance: + 3%

    • Maximum system voltage: 700V DC

    • Open circuit voltage(Voc): 21.6V

    • Short circuit current(Isc): 6.12A

    • Maximum power voltage(Vmp): 18V

    • Maximum power current(Imp): 0.56A

    • Cell efficiency: 17.5%

    • Operating temperature(NOCT): 45±2℃

    • Temperature range: -20℃～+80℃

    • Number of cells: 36pcs

    • Size: 340*220*2.5 mm

    ​
