200W 12V Solar System 50W Solar Panel 20A Controller Cable Connector

https://www.satisled.com/web/image/product.template/6093/image_1920?unique=9611700
(0 review)

235.62 235.62 USD 235.62

¥ 1,702.80

Not Available For Sale


    This combination does not exist.


    Categories :
    Solar Panel System
    SKU :
    1936343
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

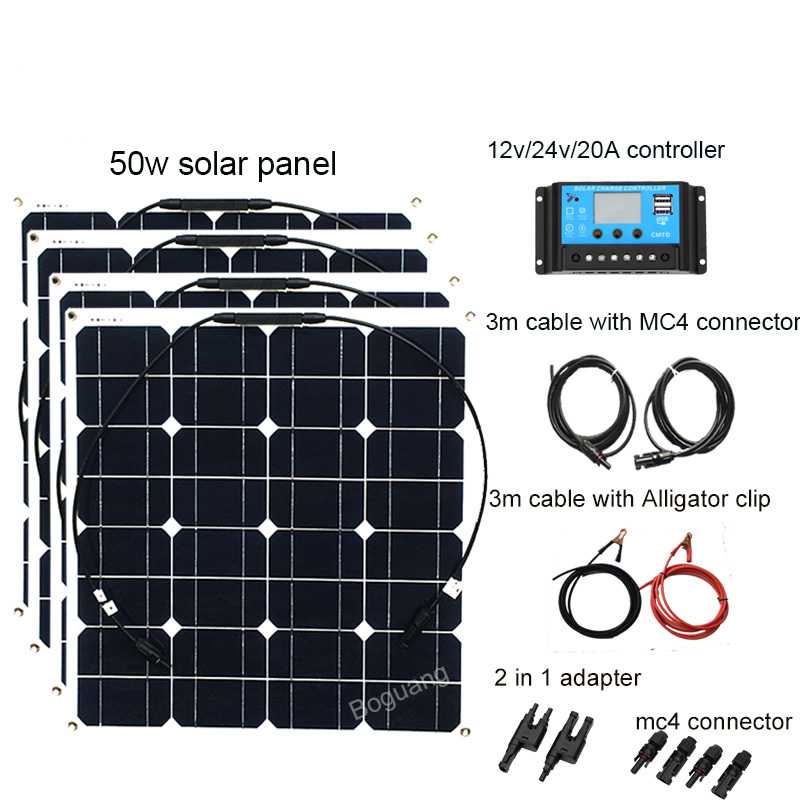

    Packing list:

    • 4 pcs 50W soalr panel

    • 1 pcs 12v/24v/20A  controller

    • 2 set 3m cable with MC4 connector(2.5mm2)

    • 2 set 2 in 1 cable adapter

    • 1 set  3m cable with Alligator clip(2.5mm2)

    • 2 set MC4 connector

    Parameters:

    • Pmax(Power at Maximum under STC): 50W

    • Ipm(Current at Max Power, A): 3.1A

    • Vmp(Voltage at Max Power, V): 16V

    • Voc(Voltage at Open Circuit, V): 19.2V

    • Isc(Current at Short Circuit,A): 3.3A

    • Max System Voltage: 1000VDC

    • Solar Cell Efficiency: 18.5%

    • Size:545*534*3mm

    • STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree



    Installation Drawings:
