300W Solar System 100W Solar Panel 30A Solar Controller Cable 3 in 1 Adapter

https://www.satisled.com/web/image/product.template/6100/image_1920?unique=9611700
(0 review)

380.02 380.02 USD 380.02

¥ 2,745.60

Not Available For Sale


    This combination does not exist.


    Categories :
    Solar Panel System
    SKU :
    1936378
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • Basic component for 12V /24V resident off-grid system. Multiple panels can be wired in series for 24v battery charging.

    • Off grid inverter: faster and more sensitive reaction; Perfect electrical protection function; Aluminum alloy housing, not rust, heat-resisting, cold-resistant as well as anti-corrosion.

    • 10A charge controller: The regulator is only suitable for lead-acid,lithium ions and LiFePO4 battries.

    • Designed for RVs, cabins, homes, boats, back-up and remote power use

    • Solar charging will provide on average 800 Watt Hours (Wh) or 70 Amp hours of charge per day (depends on sunlight availability)

    Parameter of inverter:

    • Input voltage: DC 12V/24V

    • Output voltage: AC110V/220V

    • Frequency: 50Hz

    • Max Output power:1000W

    • Continuous power:500W (can not used to more than 500W loads)

    • Inverter efficiency:95%

    • Volume: 225*150*80MM

    • Net weight: 0.8KG

    • Accessories: One power cord with clip, one manual

    Product specifications:

    • Maximum power(Pmax): 100W

    • Output tolerance: + 3%

    • Maximum system voltage: 700V DC

    • Open circuit voltage(Voc): 19.2V

    • Short circuit current(Isc): 6.87A

    • Maximum power voltage(Vmp): 16V

    • Maximum power current(Imp): 6.25A

    • Cell efficiency: 19.5%

    • Operating temperature(NOCT): 5±2℃

    • Temperature range: -20℃~+80℃

    • Number of cells: 32pcs

    • Size: 1050*540*3 mm

    • Standard Test Conditions: lrradiance 1000w/m2, temperature 25℃,AM=1.5

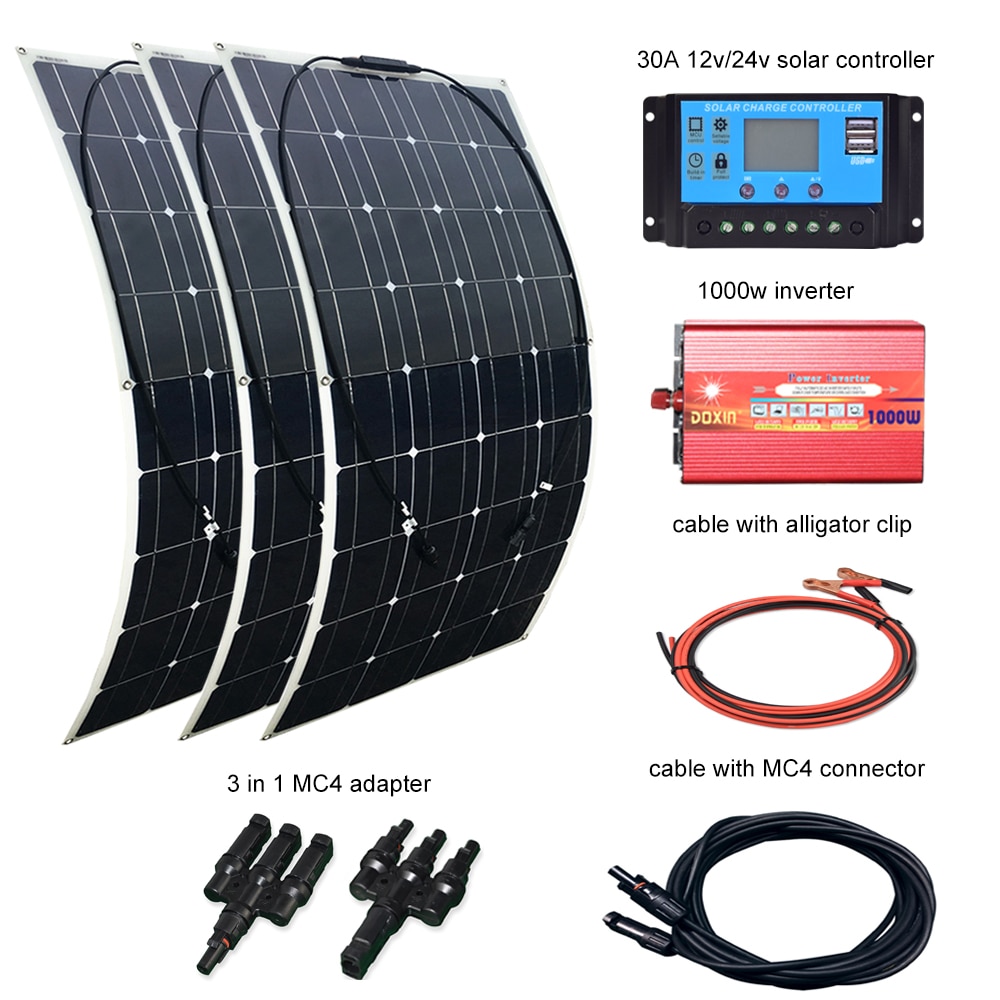

    Package Includes:

    • 3X Solar Panel 100W

    • 1X 30A controller

    • 1X  12V/24V(220V/110V) 1000W Inverter

    • 1X 1 set 3m cable with MC4 connector(2.5mm2)

    • 1X 1 set 3m cable with alligator clip(2.5mm2)

    • 1x 1 set  3 in 1 adapter

    • 1X Operation Manual
