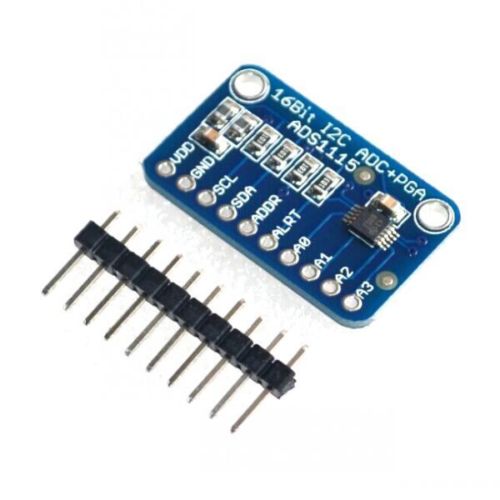

ADS1115 I2C 16 Bit Module ADC 4 channel with Pro Gain Amplifier for Arduino RPi

https://www.satistronics.com/web/image/product.template/6180/image_1920?unique=99581fd
(0 review)

1.94 1.94 USD 1.94

¥ 14.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Other Modules
    SKU :
    1940780
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • ADC Bit rate: 16 Bit

    • Interface Type: I2C

    • Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs

    • Input voltage: 2.0-5.5v

    • Channel input voltage :0-VDD

    • Continuous Mode: Only 150μA

    • Single-Shot Mode: Auto Shut-Down

    • PROGRAMMABLE DATA RATE:8sps-860sps

    • Input range programmed control, 7 types input ranges:

    • -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,

    • -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V

    • I2C 7-bit addresses between 0x48-0x4B

    • Size:18mm*28mm

    Applications:

    • Portable instrumentation

    • Consumer goods

    • Battery monitoring

    • Temperature measurement

    • Factory automation and process controls
