5A XL4015 DC-DC Adjustable Step-down Module 4~38V 96%

Price:

$ 1.72
Electronic Components Store for Everything!
USD
  2. Shop
  3. 5A XL4015 DC-DC Adjustable Step-down Module 4~38V 96%
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.37
$ 2.37
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
$ 2.29
$ 2.29

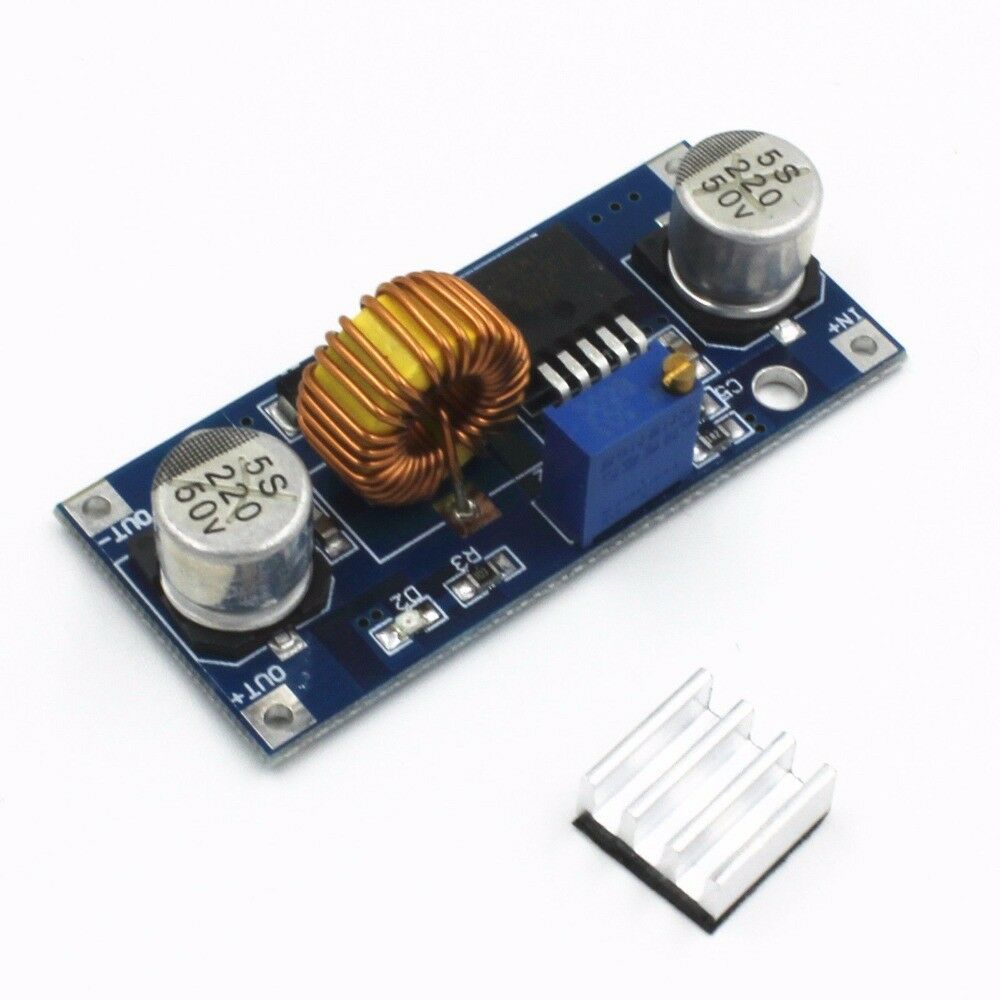

5A XL4015 DC-DC Adjustable Step-down Module 4~38V 96%

https://www.satistronix.com/web/image/product.template/6181/image_1920?unique=3e3d1d1
(0 review)

$ 1.18 1.18 USD $ 1.18

¥ 8.20

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Battery & Cases
    SKU :
    1940781
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    AA Size Transparent 3 Slots Battery Storage Box Case Holder With Switch Leads
    AA Size Transparent 3 Slots Battery Storage Box Case Holder With Switch Leads
    $ 0.52 $ 0.52
    9V 6F22 Battery Charging Box Fully Sealed Battery Holder Case with Switch
    9V 6F22 Battery Charging Box Fully Sealed Battery Holder Case with Switch
    $ 0.72 $ 0.72
    9V Battery Snap Clip Connector With Wire BS-EC RoHS COMF lot(100 pcs)
    9V Battery Snap Clip Connector With Wire BS-EC RoHS COMF lot(100 pcs)
    $ 4.31 $ 4.31
    Wire Leaded Battery Holder Case Box Without Cover For 2 x D Size 3V Batteries
    Wire Leaded Battery Holder Case Box Without Cover For 2 x D Size 3V Batteries
    $ 0.57 $ 0.57
    2032 3V 200mA Button Battery with Solder Foot lot(10 pcs)
    2032 3V 200mA Button Battery with Solder Foot lot(10 pcs)
    $ 1.87 $ 1.87
    18650 CR123A 16340 Battery Case Color Optional Blue/White/Green/pruple/Orange lot(10 pcs)
    18650 CR123A 16340 Battery Case Color Optional Blue/White/Green/pruple/Orange lot(10 pcs)
    $ 1.72 $ 1.72

    Description

    • This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.

    • Module highlights:5A  high power、high efficiency and low ripple with power indicator !

    Parameters

    • Input voltage range：4～38VDC(Note:input voltage not exceeding 38V)

    • Output voltage range：1.25-36VDC adjustable

    • Output current: 0-5A

    • Output power: 75W

    • High efficiency up to 96%

    • Built in thermal shutdown function

    • Built in current limit function

    • Built in output short protection function

    • Input reverse polarity protection: None (if required, high current diode in series with the input).

    • L x W x H =5.4*2.3*1.5CM

    Application

    • The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV，portable instrument power supply，telecom/networking equipment,24V vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.

    ​
