Q62 VS1053 MP3 Module Development Board with Amplifier/Decode/Record Function

https://www.satistronics.com/web/image/product.template/6205/image_1920?unique=99581fd
(0 review)

11.76 11.76 USD 11.76

¥ 84.00

Not Available For Sale


    This combination does not exist.


    SKU :
    1940835
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Product Description:

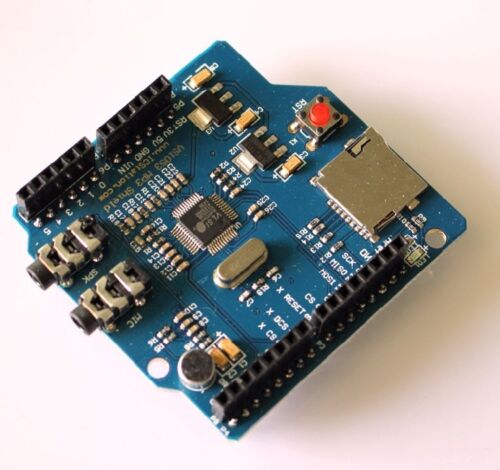

    • This MP3 shield board is designed based on VS1053B from VLSI.

    • using this shiled you can plug in your arduino UNO/MEGA direcly as showing in pic,

    • dont' need need to hook up with jumpers,

    • it's becomes more easy to play music compared with the tiny mp3 breakout board.

    • VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,

    • including Ogg Vorbis/MP3/AAC/WMA/MIDI audio.

    • For the best headphone listening experience,

    • the VS1053 includes EarSpeaker spatial processing which

    • accurately simulates how a room with stereo loudspeakers would sound.

    • In addition to being able to decode all major formats,

    • VS1053 is capable of recording in Ogg Vobis file.

    • With the TF card slot on the other side of the board,

    • you can play mp3 files from TF card using this breakout.

    • It is easily to drop it in your project or make a mp3 player using your Arduino or other microcontroller.

    • Features Can play a variety of music formats,

    • support for OGG encoding real-time recording SPI interface,

    • the control signal lines are led out A headphone and stereo output

    • A microphone for recording A line_in input interface

    • Power indicator 3.3V and 2.8V of LDO chip AMS-1117 on board,

    • provides up to 800mA current

    • A single power supply: +5 VDC 12.288 Mhz crystal TF cart slot.

    Features:

    • Can play a variety of music formats, support for OGG encoding real-time recording

    • SPI interface, the control signal lines are led out

    • A headphone and stereo output

    • A microphone for recording

    • A line_in input interface

    • Power indicator

    • 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current

    • A single power supply: +5 VDC

    • 12.288 Mhz crystal

    • TF card slot
