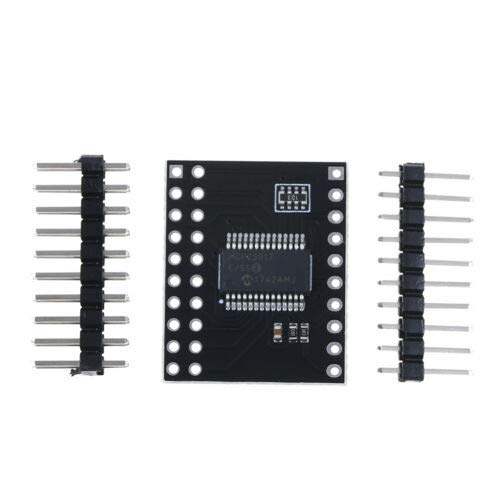

MCP23017 Bidirectional 16-Bit I/O Expander with I2C IIC Serial Interface Module
Categories :
Interface ICsSKU :
1940970
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like
SP3232EEN SOP-16 Chips Interface Receiver Transceiver
$ 0.12 $ 0.12
MAX3232CPE DIP-16 Chips Interface Receiver Transceiver
$ 0.17 $ 0.17
Davicom DM9000CEP LQFP-48 Ethernet Controller IC
$ 2.33 $ 2.33
WCH CH552T Chip TSSOP-20 16KB 8Bit
$ 0.52 $ 0.52
Features:
16-Bit Remote Bidirectional I/O Port: I/O pins default to input
High-Speed I2C Interface (MCP23017): 100kHz, 400kHz, 1.7MHz
High-Speed SPI Interface (MCP23S17): 10 MHz (maximum)
Three Hardware Address Pins to Allow Up to Eight Devices On the Bus ConfigurableInterrupt Output Pins: Configurable as active-high, active-low or open-drain
INTA and INTB Can Be Configured to Operate Independently or Together Configurable Interrupt Source: Interrupt-on-change from configured register defaults or pin changes
Polarity Inversion Register to Configure the Polarity of the Input Port Data
External Reset Input
Low Standby Current: 1 μA (max.)
Operating Voltage: 1.8V to 5.5V @ -40°C to +85°C; 2.7V to 5.5V @ -40°C to +85°C; 4.5V to 5.5V @ -40°C to +125°C
