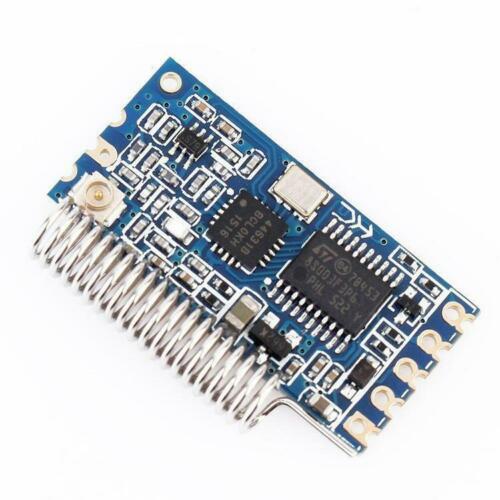

HC-12 SI4463 433MHz Wireless Serial Port Module 1000m Replace Bluetooth

https://www.satistronics.com/web/image/product.template/6388/image_1920?unique=d27fcb4
(0 review)

$ 3.40 3.4 USD $ 3.40

¥ 23.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Wireless Modules
    SKU :
    1941086
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    433Mhz RF transmitter and receiver kit for Arduino
    433Mhz RF transmitter and receiver kit for Arduino
    $ 1.00 $ 1.00
    315/433MHz Wireless RF Remote Receiver Module LR35A LR45A
    315/433MHz Wireless RF Remote Receiver Module LR35A LR45A
    $ 1.14 $ 1.14
    ESP32-CAM ESP32 5V WIFI Bluetooth Development Board with OV2640 Camera Module
    ESP32-CAM ESP32 5V WIFI Bluetooth Development Board with OV2640 Camera Module
    $ 14.79 $ 14.79
    HC-08 Bluetooth Serial Port Module Bluetooth 4.0 Low Power Consumption Microampere Level Current
    HC-08 Bluetooth Serial Port Module Bluetooth 4.0 Low Power Consumption Microampere Level Current
    $ 5.40 $ 5.40
    Top ESP8266 Wifi Module Serial WirelessTransceiver Send Receive ESP-WROOM-02
    Top ESP8266 Wifi Module Serial WirelessTransceiver Send Receive ESP-WROOM-02
    $ 2.96 $ 2.96
    2.4G NRF24L01+PA+LNA SMA Antenna Wireless Transceiver Communication Module
    2.4G NRF24L01+PA+LNA SMA Antenna Wireless Transceiver Communication Module
    $ 5.03 $ 5.03

    Parameters:

    • HC-12 SI4463 wireless microcontroller serial, 433 long-range, 1000M with antenna for Bluetooth

    • HC-11 can not be connected to communicate with the HC-12, they work independently, in pairs.

    • Supply voltage 3.2V ~ 5.5V. (If you want to work in the module launch state for a long time, it is recommended when the supply voltage exceeds 4.5V series with a 1N4007 diode, to avoid heating module built LDO)

    • Default communication distance (open test): about 600m (adjustable to achieve the maximum communication distance of 1000m, the air baud rate 5000bps).

    • The default idle current: 16MA (modules in different operating current of the different operating modes).

    • Module Size: 27.8mm × 14.4mm × 4mm.

    • Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power (can be set)

    • The default factory settings: operating mode FU3, baud rate 9600bps, communication channel CH001 (433.4M).

    ​
