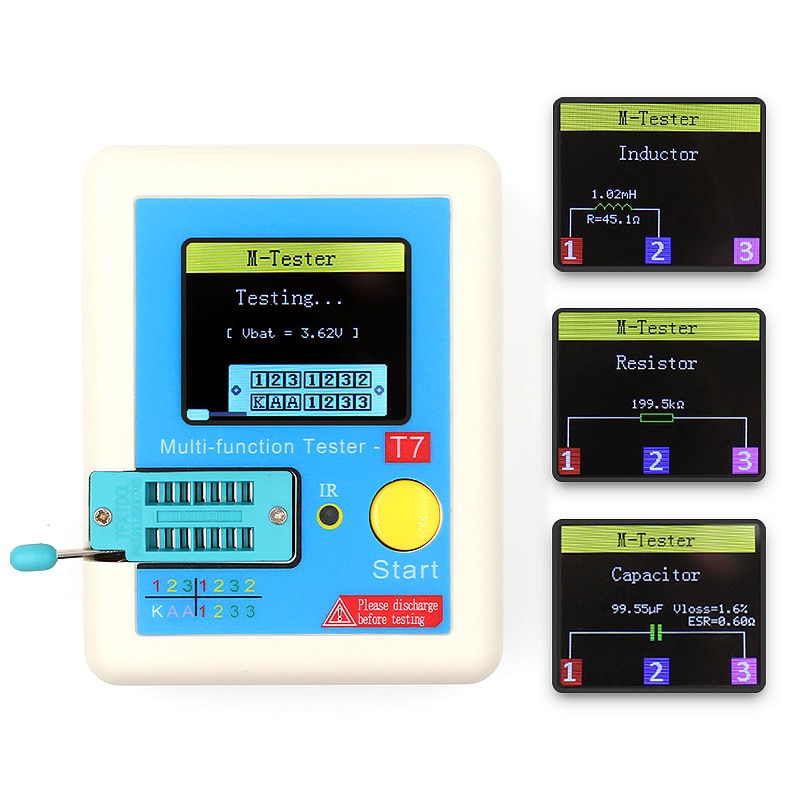

LCR-T7 TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP IR Multifunction Transistor Tester

https://www.satisled.com/web/image/product.template/6495/image_1920?unique=711d32c
(0 review)

15.41 15.41 USD 15.41

¥ 112.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Transistor Tester
    SKU :
    1941198
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    TC-V2.12k is a TFT graphic display Multifunction Tester.

    Transistor Tester

    • Automatic detection of zener diode  0.01-30V

    • Self test with automatic calibration

    IR decoder

    • Support Hitachi IR coding

    • IR waveform display

    • Infrared receiving instruction

    Other

    • Measurement results using TFT graphic display(160x128)

    • One key operation

    • Auto Power Off(Timeout Settable)

    • Support Chinese and English

    Parameters:

    Operation Instruction:

    1.1 Key operational definitions

          Multi-function key has two actions:

    • Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

    • Long press: Press the key more than 1.5 seconds

    1.2 Power on

          In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

    • Power on & measurement interface

    1.3 Detect transistor:

    • In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

    • Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

      We do not recommend using the tester to meas ure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!


    Component placement

           Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
