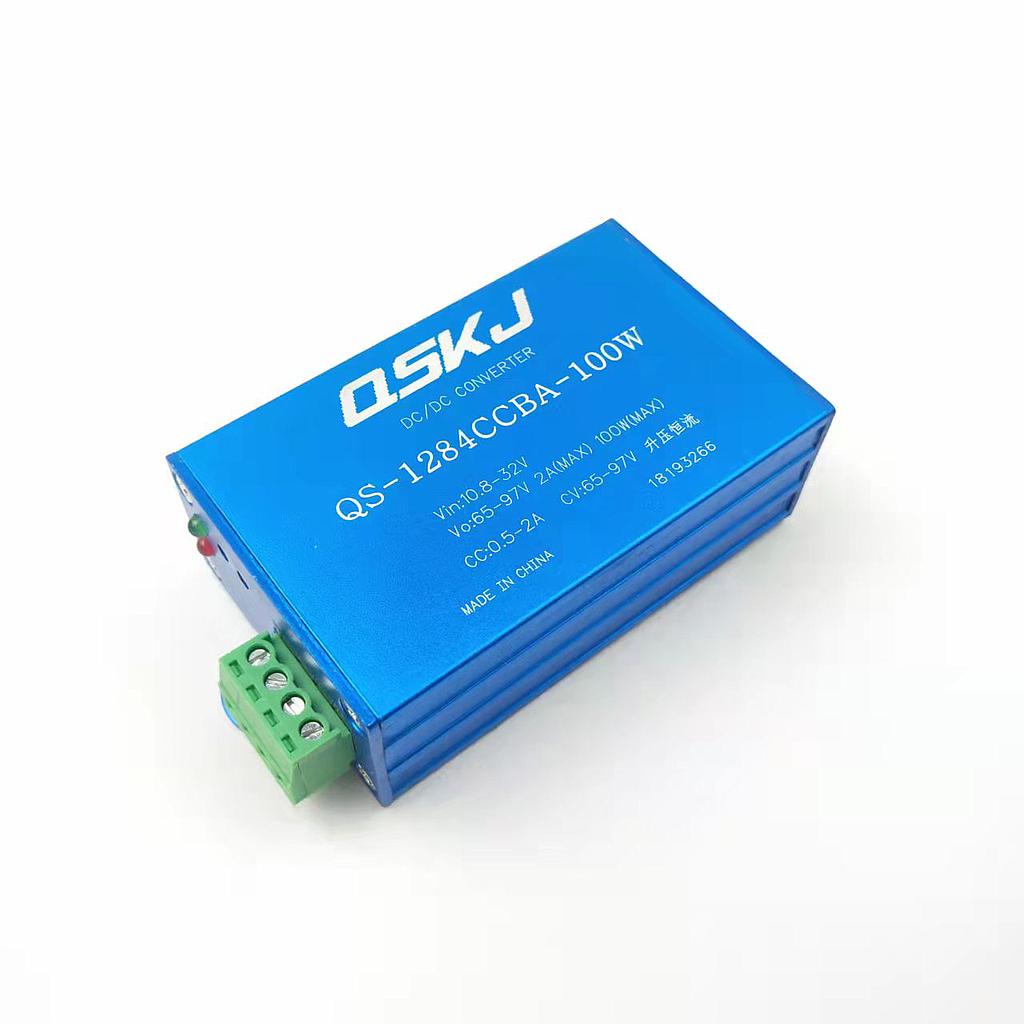

DC-DC Boost Converter 10.8-35V to 65-97V Step Up Power Supply QS-1284CCBA-100W

https://www.satistronics.com/web/image/product.template/6715/image_1920?unique=99581fd
(0 review)

12.60 12.6 USD 12.60

¥ 90.00

Not Available For Sale


    This combination does not exist.


    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1284CCBA-100W

    Parameters:

    • Module Properties: non-isolated constant current and voltage can be automatically boost

    • Input Voltage :10.8-35V

    • output voltage: (1) adjustable (65-97V)

    • (2) fixed output (arbitrary choice between 65-97V)

    • output constant current range :0.5-2A (100W MAX) (continuously adjustable)

    • conversion efficiency: typical 92%

    • full load temperature rise : 50°c

    • load current: Typical 60MA

    • Load regulation: ± 2%

    • voltage regulation rate: ± 0.5%

    • dynamic response speed: 5% 200uS

    • short circuit protection: No output short circuit strict

    • undervoltage Protection: None

    • Input reverse polarity protection: Yes.

    • Installation: screw (diameter 3 mm), 2 mounting holes, 2 fixed hole spacing of 82 mm

    • Connection mode: you can plug terminals, pressure lines, does not require welding

    • Case: All aluminum, casting process, can work under adverse conditions

    • Output Power: input 12V100W maximum output power (input voltage greater than 24V, output 150W MAX)

    • Operating temperature: Industrial grade (-40°c to +85°c) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation) shell surface temperature can not exceed 90 degrees

    Applications:

    • Battery voltage regulator, 12V battery to it (10-14V) output voltage regulation in 12V, 24V battery output voltage in 12V.

    • Solar charge regulator, solar cells can now stabilize fluctuations in voltage and can charge the battery to avoid battery overshoot.

    • Constant current institutions can charge the battery, driving high power LED

    • The system before the class, ultra-high efficiency design, environmental protection, heat a small capacity loss.

    • 1-4 high-power LED strings can be used to drive the battery charging, battery voltage, car voltage regulators, power equipment, etc.
