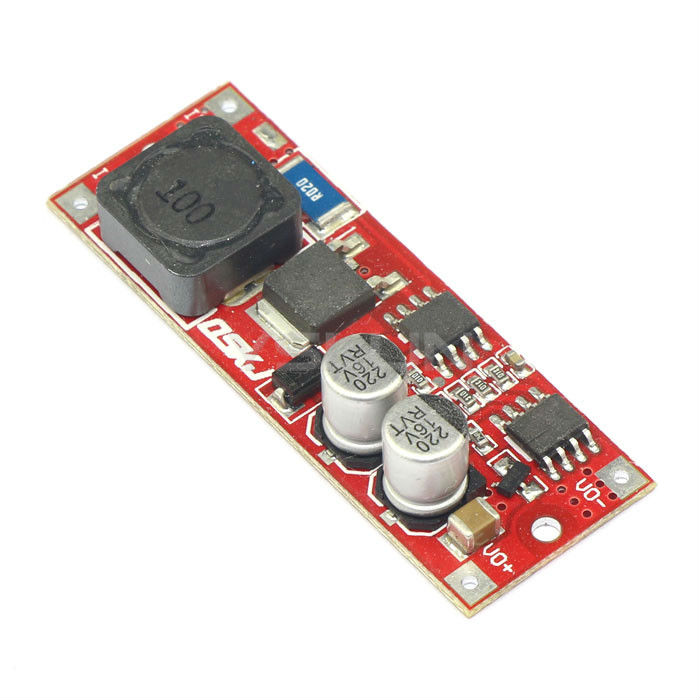

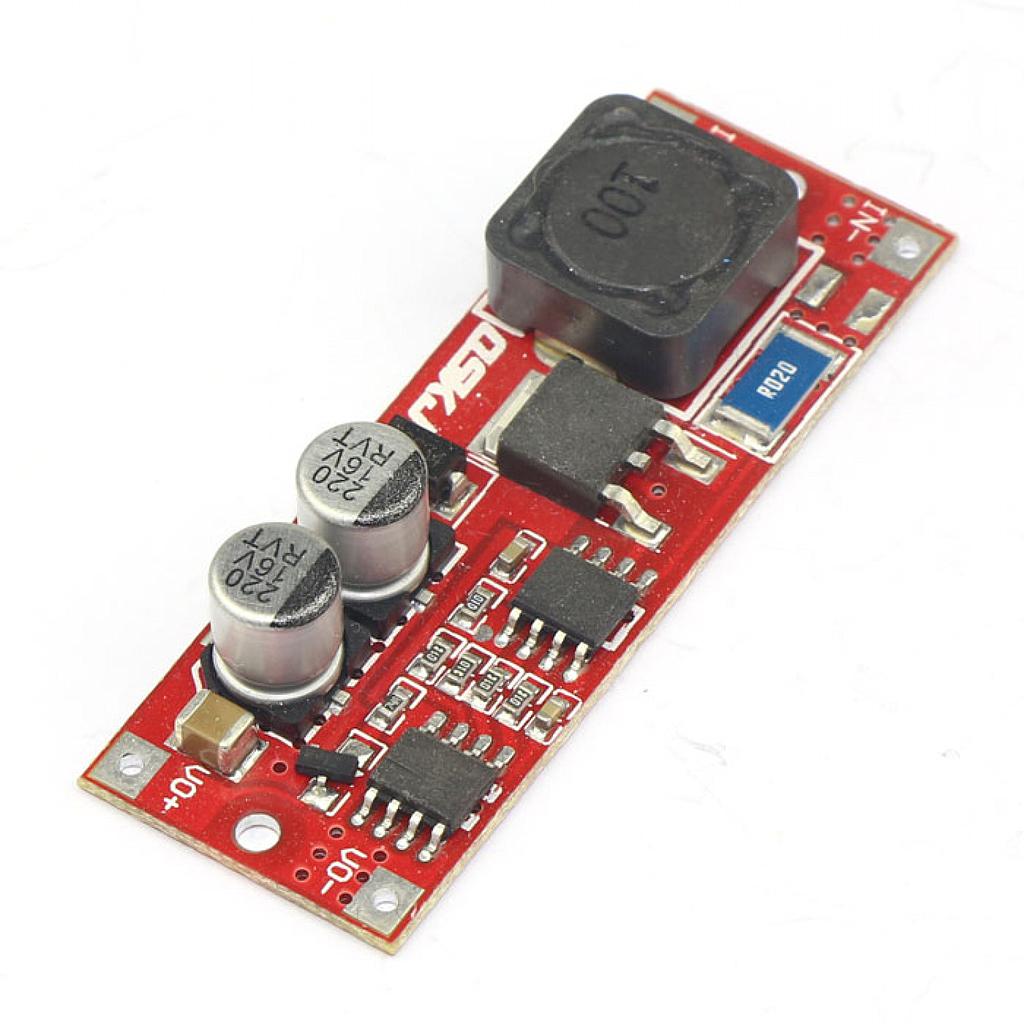

25W Voltage Regulator DC 8-12.6V to 10-14V Boost Converter QS-1113BAT-25W

https://www.satistronics.com/web/image/product.template/6716/image_1920?unique=99581fd
(0 review)

9.45 9.450000000000001 USD 9.45

¥ 68.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Step Up Boost Module
    SKU :
    1941720
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Brand: QSKJ

    Model:  QS-1113BAT-25W

    Parameters:

    • Module Properties: non-isolated step up module

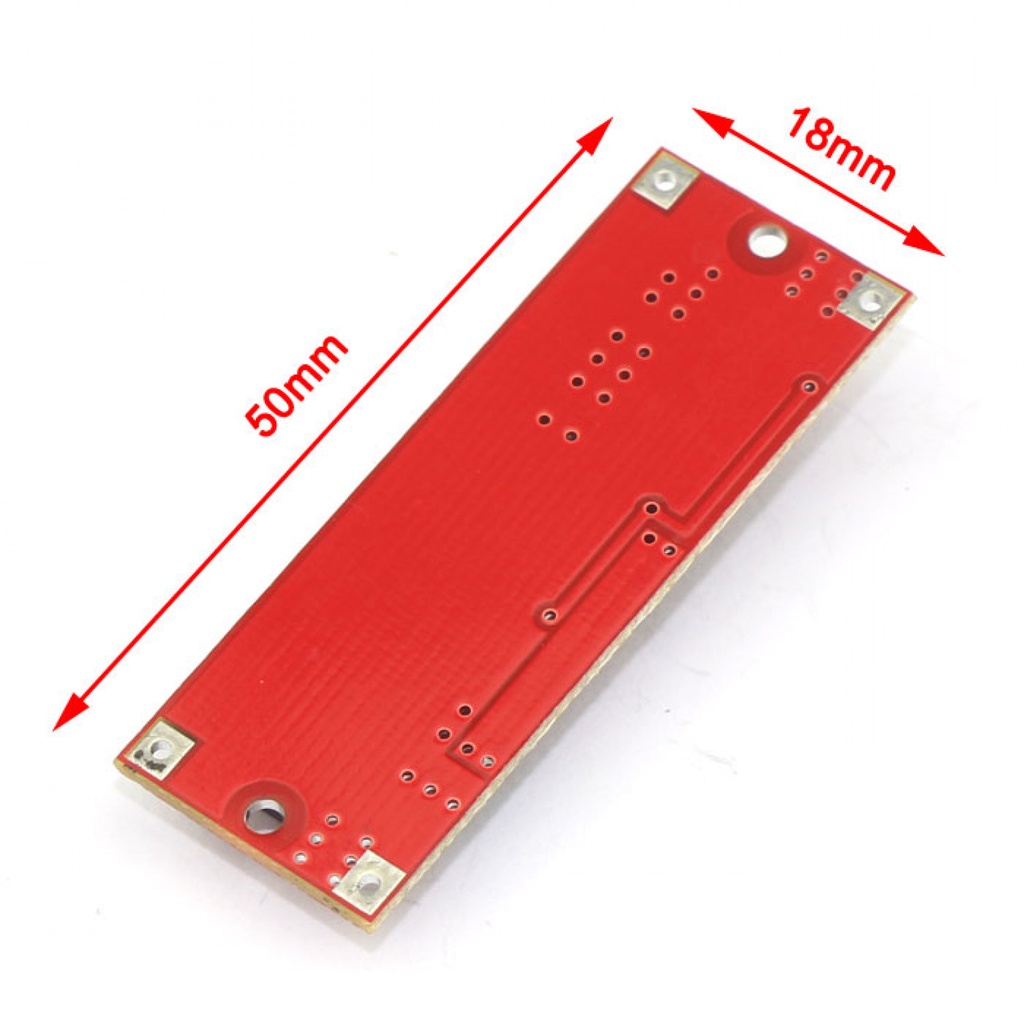

    • PCB size:50 x 18mm

    • Input voltage:8-12.6V (3pcs Lithium Battery voltage)

    • Output voltage:10-14V (10pcs Ni-MH battery voltage)

    • Output Current:1.8A

    • Output Power:25W (Max.)

    • Conversion efficiency: up to 93%

    • Load Regulation: ±1%

    • Full load temperature rise: 40 °c

    • Undervoltage protection: None

    • Installation: welding

    • IN+: input positive

    • IN-: input negative

    • OUT+:output positive

    • OUT-: output negative

    • Boot mode: Power-on

    • Short-circuit protection: None (If need please install fuses at input port)

    • Input reverse polarity protection: None (If need please install diode at input port)

    • Close: EN pin is connected to 0V level (output voltage is approximately equal to input voltage)

    • Operating temperature: Industrial grade (-40°c to 85°c) (ambient temperature exceeds 40°c, please reduce power, or enhance heat dissipation)

    Application: 3pcs Lithium batteries to replace 10pcs Ni-MH batteries.
