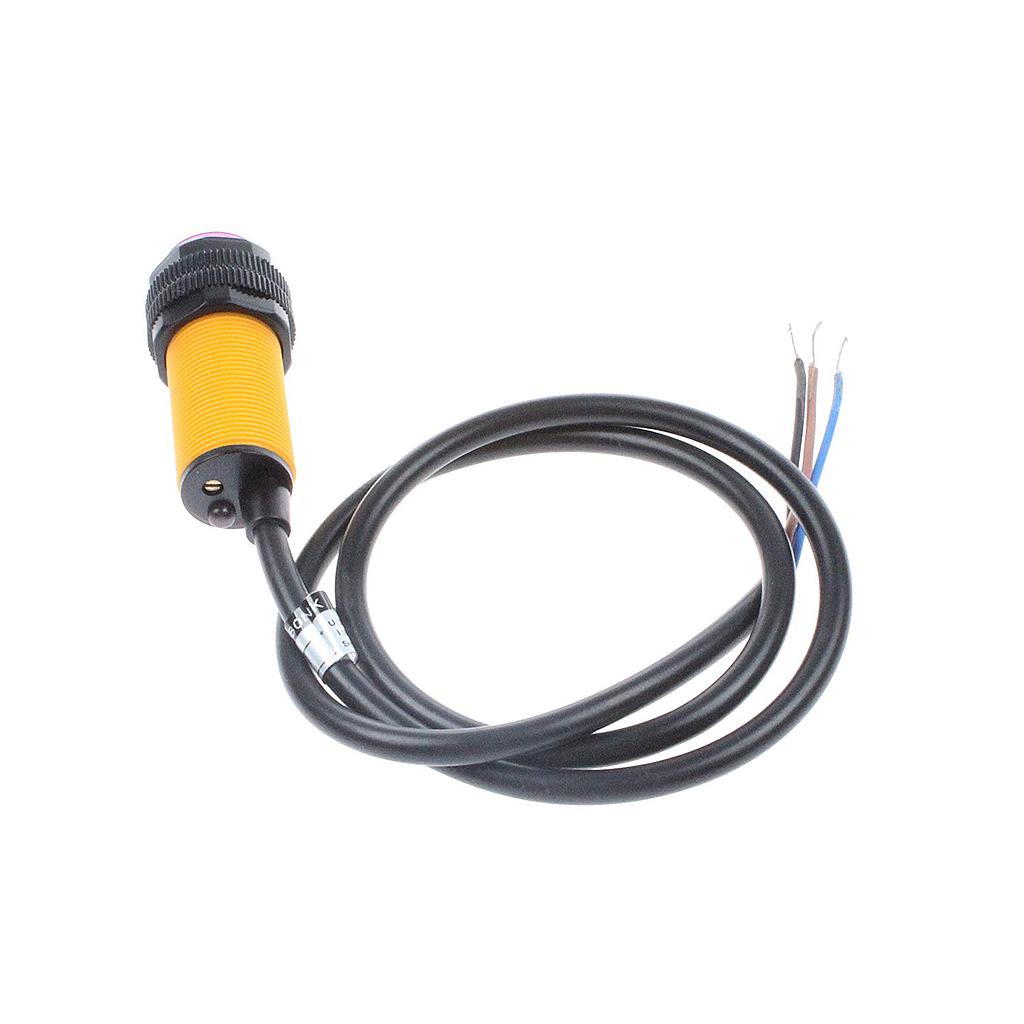

E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor

Price:

$ 6.51
Electronic Components Store for Everything!
USD
  2. Shop
  3. E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.77
$ 2.77

E18-D80NK Adjustable Infrared Obstacle Avoidance Detection Sensor

https://www.satistronics.com/web/image/product.template/6776/image_1920?unique=d27fcb4
(0 review)

$ 2.07 2.07 USD $ 2.07

¥ 14.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Ultrasonic Sensor Modules
    SKU :
    1941830
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    B17 High Level Non-modulator Laser Receiver Sensor Module for Arduino
    B17 High Level Non-modulator Laser Receiver Sensor Module for Arduino
    $ 0.89 $ 0.89
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    KY-003 Hall Magnetic Sensor Module for Arduino AVR PIC
    $ 0.89 $ 0.89
    HC-SR04 Ultrasonic Distance Sensor module
    HC-SR04 Ultrasonic Distance Sensor module
    $ 0.89 $ 0.89
    K63 Smart Car Infrared Barrier Module Obstacle Avoidance Sensor Module
    K63 Smart Car Infrared Barrier Module Obstacle Avoidance Sensor Module
    $ 0.74 $ 0.74
    Digital Thermal Sensor Module Temperature Sensor Module for Arduino
    Digital Thermal Sensor Module Temperature Sensor Module for Arduino
    $ 0.89 $ 0.89
    JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor for Arduino
    JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor for Arduino
    $ 6.51 $ 6.51

    Product Description:

    This is a set of transmitter and receiver in one of the photoelectric sensor. A detection distance can be adjusted according to the requirements. The sensor has a detection distance, visible interference by small, easy to assemble, easy to use features, can be widely used robot obstacle avoidance, line piece and many occasions.

    Parameters:

    • The output current DC / SCR / Relay Control output: 100mA / 5V power supply

    • Current consumption DC <25mA

    • Response time <2ms

    • Point angle: ≤15 °, adjustable effective distance 3-80CM

    • Detect objects: transparent or opaque

    • Working environment temperature: -25 ℃ ~ + 55 ℃

    • Standard sensing object: sunlight 10000LX less incandescent 3000LX the following

    • Case Material: Plastic

    • Electrical Characteristics: U: 5VDC ; I: 100mA ; Sn: 3-80CM

    • Size: Diameter: 17MM ; Sensor length: 45MM ; Cable Length: 45CM

    Applications:

    • Production line cargo automatic counting equipment

    • Multifunctional reminder

    • Maze robot

    • Kitchen automation system

    • Security and anti-theft system

    ​
