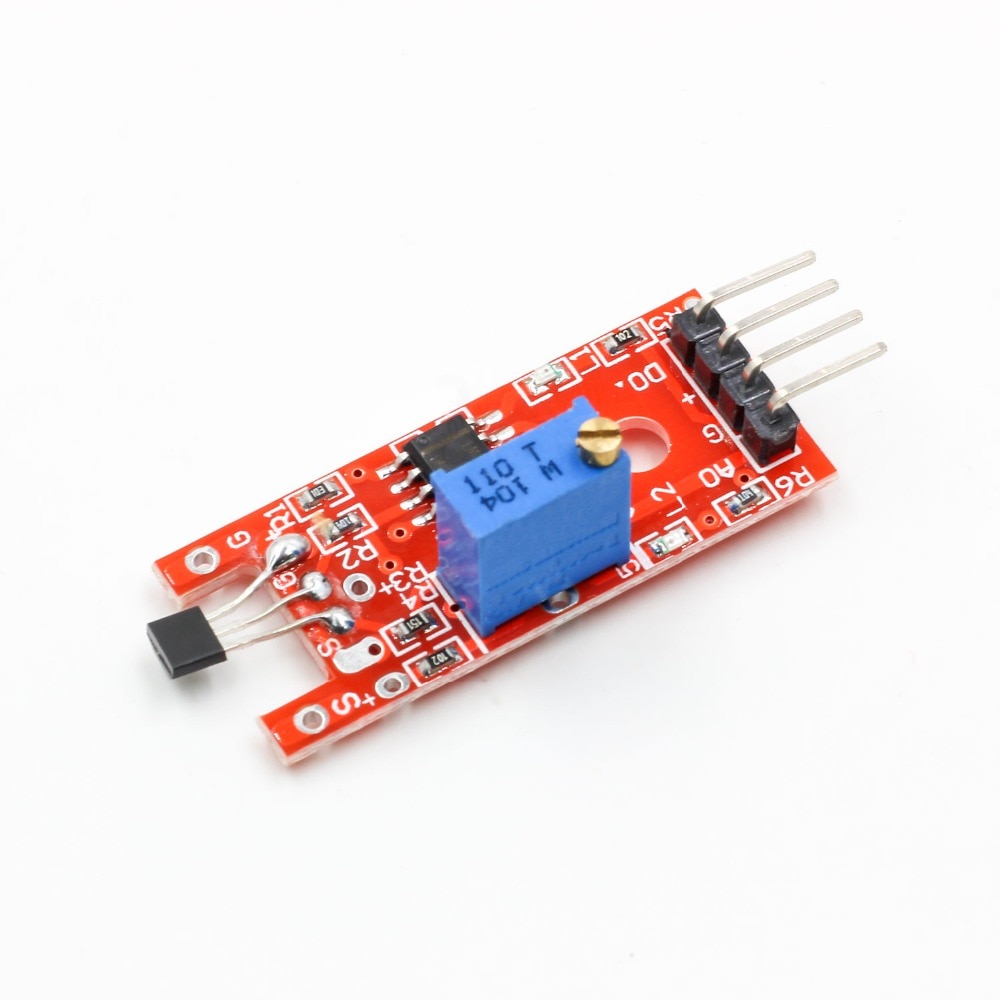

KY-024 Raspberry Compatible Hall Magnetic Sensor Module for Arduino
Categories :
Other ModulesSKU :
1941893
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like
SYN6288 Speech Synthesis Module TTS Pronunciation Live
$ 15.79 $ 15.79
MPU6500 6 DOF Accelarate Sensor Module SPI Interface
$ 1.87 $ 1.87
TTP224 4-Channel Touch Switch Module Button Arduino
$ 0.72 $ 0.72
AD9850 DDS Signal Generator Module 0-40MHz Test Equipment
$ 14.36 $ 14.36
Product Description:
Linear Hall magnetic module and number 13 comes with LED build a simple circuit to produce magnetic field warning lamp. Use digital 13 interface comes with the LED. The linear Hall magnetic module connected digital 3 interfaces. When the linear Hall magnetic module senses detected the key signal. LED lights on, otherwise off.
Routines source code:
int Led = 13 ;// define LED Interface
int buttonpin = 3; // define the linear Hall magnetic sensor interface
int val ;// define numeric variables val
void setup()
{
pinMode(Led, OUTPUT) ;// define LED as output interface
pinMode(buttonpin, INPUT) ;// define linear Hall magnetic sensor as output interface
}
void loop ()
{
val = digitalRead(buttonpin) ;// digital interface will be assigned a value of 3 to read val
if(val == HIGH) // When the linear Hall magnetic sensor detects the signal, LED flashes
{
digitalWrite(Led, HIGH);
}
else
{
digitalWrite (Led, LOW);
}
}
