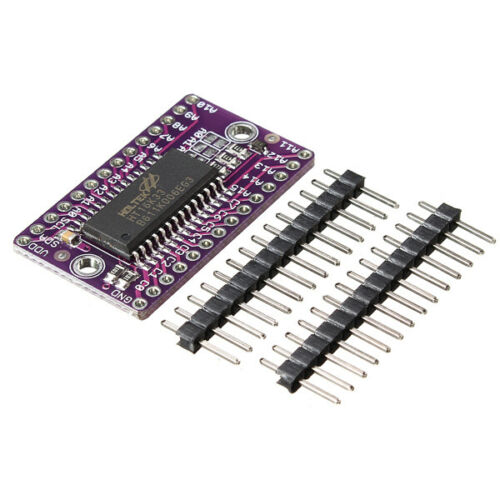

E35 CJMCU HT16K33 LED Driver Module Development Board

https://www.satistronics.com/web/image/product.template/6858/image_1920?unique=d27fcb4
(0 review)

$ 1.33 1.33 USD $ 1.33

¥ 9.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Other Modules
    SKU :
    1941932
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    W5100 LAN Ethernet Shield Network Module Board for Arduino
    W5100 LAN Ethernet Shield Network Module Board for Arduino
    $ 7.69 $ 7.69
    ADUM5402 TTL to RS485 Module with Isolated Single Chip Serial Port
    ADUM5402 TTL to RS485 Module with Isolated Single Chip Serial Port
    $ 14.79 $ 14.79
    GA6 A6 Mini GPRS GSM Wireless Extension Board Module for Arduino Better than SIM800L
    GA6 A6 Mini GPRS GSM Wireless Extension Board Module for Arduino Better than SIM800L
    $ 7.32 $ 7.32
    CJMCU-204 USB 2.0 HUB 4-Port Controller Module for Electronic Components
    CJMCU-204 USB 2.0 HUB 4-Port Controller Module for Electronic Components
    $ 4.14 $ 4.14
    ADC0809 DIY Kits AD 8 Channel Analog to Digital Conversion Module
    ADC0809 DIY Kits AD 8 Channel Analog to Digital Conversion Module
    $ 4.14 $ 4.14
    SOP16 to DIP16 Programmer Adapter IC Socket Converter Board
    SOP16 to DIP16 Programmer Adapter IC Socket Converter Board
    $ 4.44 $ 4.44

    Product description:

    • The HT16K33 is a memory mapping and multi-function LED controller driver.

    • The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scan circuit.

    • The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems.

    • The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus.

    Parameters:

    • Operating voltage: 4.5V~5.5V.

    • Integrated RC oscillator.

    • I2C-bus interface.

    • 16*8 bits RAM for display data storage.

    • Max. 16 x 8 patterns, 16 segments and 8 commons

    • R/W address auto increment.

    • Max. 13 x 3 matrix key scanning.

    • 16-step dimming circuit.

    • Selection of 20/24/28-pin SOP package types.

    • Material: plastic

    • Product detailed size: 40mmX20mm

    ​
