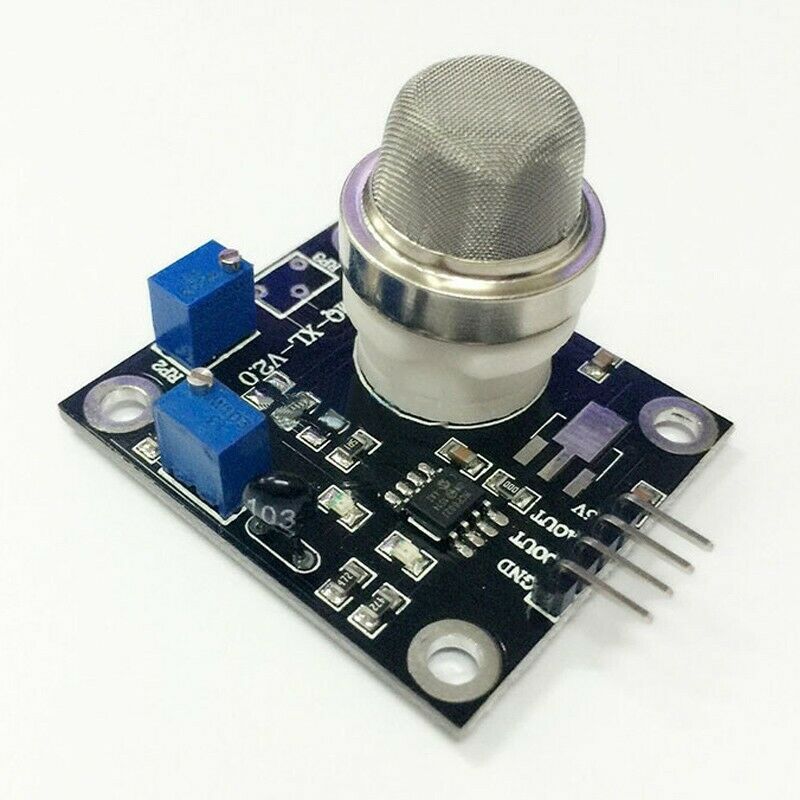

XD-46 MQ137 Ammonia NH3 Sensor Module Analog Level Signal Output

Price:

$ 1.63
Electronic Components Store for Everything!
USD
  2. Shop
  3. Modules & Sensors
  4. XD-46 MQ137 Ammonia NH3 Sensor Module Analog Level Signal Output
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.77
$ 2.77

XD-46 MQ137 Ammonia NH3 Sensor Module Analog Level Signal Output

https://www.satistronics.com/web/image/product.template/6860/image_1920?unique=d27fcb4
(0 review)

$ 38.45 38.45 USD $ 38.45

¥ 260.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Gas / PM2.5/ Alcohol
    SKU :
    1941934
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    MG811 CO2 Carbon Dioxide Gas Sensor Module Detector with Analog Signal Output
    MG811 CO2 Carbon Dioxide Gas Sensor Module Detector with Analog Signal Output
    $ 0.15 $ 0.15
    GY-MCU680V1 Temperature and Humidity Air Pressure /Quality Sensor Module
    GY-MCU680V1 Temperature and Humidity Air Pressure /Quality Sensor Module
    $ 16.27 $ 16.27
    MQ-8 Hydrogen Gas Methane Detection Sensor
    MQ-8 Hydrogen Gas Methane Detection Sensor
    $ 0.73 $ 0.73
    MQ9 Carbon Monoxide Alarm Combustible Gas Sensor Module for Arduino
    MQ9 Carbon Monoxide Alarm Combustible Gas Sensor Module for Arduino
    $ 1.63 $ 1.63
    MQ9 (CO) Carbon Monoxide Combustible Gas Sensor
    MQ9 (CO) Carbon Monoxide Combustible Gas Sensor
    $ 3.25 $ 3.25
    MQ-9 Carbon Monoxide Gas Sensor
    MQ-9 Carbon Monoxide Gas Sensor
    $ 1.63 $ 1.63

    Features:

    • With level signal output and alarm signal indicator
    • With analog signal output, voltage range: 0-5V
    • Effective low level output signal can be used to drive PNP transistors. And it can be connected to the OP port of micro-controller
    • The analog output voltage increases with the increase of the concentration. The higher the concentration, the higher the voltage
    • High sensitivity to ammonia, trimethylamine and ethanolamine gases
    • Long service life and reliable stability
    • Fast to response and recover after preheating
    • With mounting holes, it is convenient for fix and install
    • Plug-to-play probe for easy testing
    • With temperature compensation function, it works perfectly

    Parameters:

    • Test Gas: Ammonia
    • Detection Range: 5 to 500 ppm
    • Working Voltage: DC 5V
    • Working Current: 180mA
    • Output Voltage: 0 to 5V
    • Sensitivity: > 3%
    • Circuit Voltage: ≤DC 5V
    • Load Resistance: Adjustable 10K
    • Component Power Consumption: ≤0.9W
    • Life Span: 5 Years
    • Working Temperature: -10 to 50℃ (Nominal temperature 20℃)
    • Operating Humidity: 95%RH (Nominal humidity 65%RH)
    • Response Time: ≤1S (Warm-up in 30-50mins)
    • Recovery Time: ≤30S
    • Size: 40 x 35 x 28mm

    Applications: Mainly used for qualitative testing, suitable for home, industrial environment, portable gas detection equipment, and detection of ammonia-containing gas.

    ​
