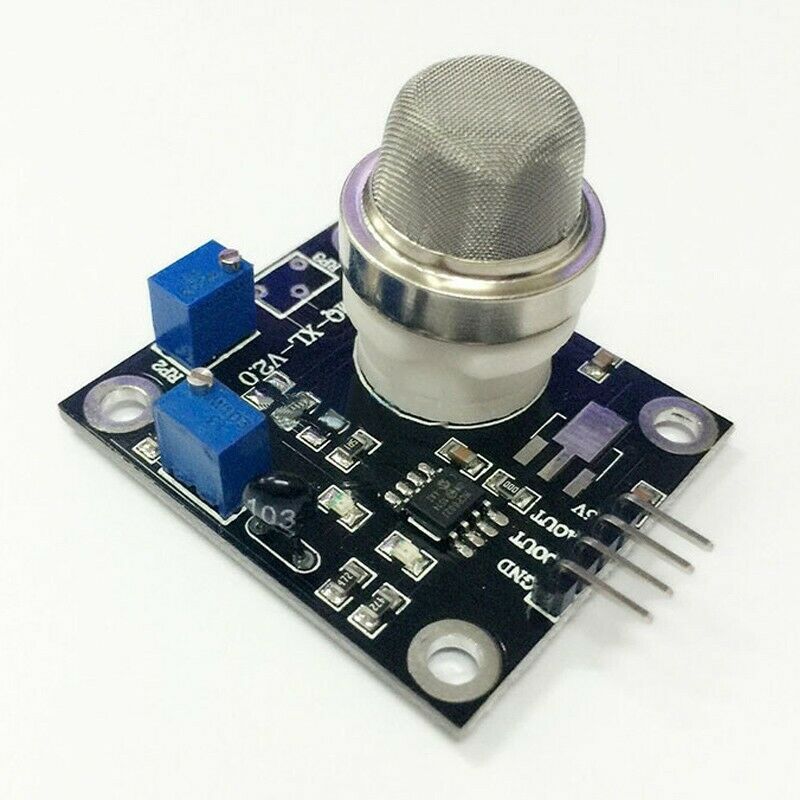

XD-46 MQ137 Ammonia NH3 Sensor Module Analog Level Signal Output

https://www.satistronix.com/web/image/product.template/6860/image_1920?unique=d8c7308
(0 review)

35.91 35.910000000000004 USD 35.91

¥ 260.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Gas / PM2.5/ Alcohol
    SKU :
    1941934
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Features:

    • With level signal output and alarm signal indicator

    • With analog signal output, voltage range: 0-5V

    • Effective low level output signal can be used to drive PNP transistors. And it can be connected to the OP port of micro-controller

    • The analog output voltage increases with the increase of the concentration. The higher the concentration, the higher the voltage

    • High sensitivity to ammonia, trimethylamine and ethanolamine gases

    • Long service life and reliable stability

    • Fast to response and recover after preheating

    • With mounting holes, it is convenient for fix and install

    • Plug-to-play probe for easy testing

    • With temperature compensation function, it works perfectly

    Parameters:

    • Test Gas: Ammonia

    • Detection Range: 5 to 500 ppm

    • Working Voltage: DC 5V

    • Working Current: 180mA

    • Output Voltage: 0 to 5V

    • Sensitivity: > 3%

    • Circuit Voltage: ≤DC 5V

    • Load Resistance: Adjustable 10K

    • Component Power Consumption: ≤0.9W

    • Life Span: 5 Years

    • Working Temperature: -10 to 50℃ (Nominal temperature 20℃)

    • Operating Humidity: 95%RH (Nominal humidity 65%RH)

    • Response Time: ≤1S (Warm-up in 30-50mins)

    • Recovery Time: ≤30S

    • Size: 40 x 35 x 28mm

    Applications: Mainly used for qualitative testing, suitable for home, industrial environment, portable gas detection equipment, and detection of ammonia-containing gas.
