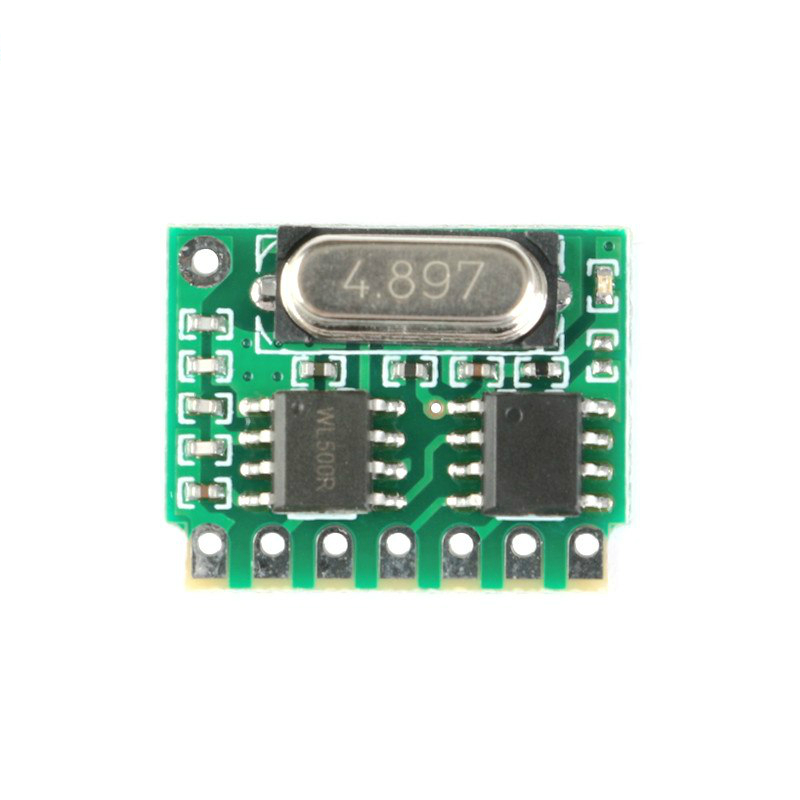

315/433MHz Receiver Module Wireless Board

• Operating frequency: 315MHz/433.92MHz Other frequency can be customized

• Modulation method: ASK/00K

• Receiver sensitivity: -108dBm

• Data rate: up to 10kpbs

• Drive capability per IO port: <=20mA

• Operating temperature range: -40~85 degrees Celsius

Features:

• Intelligent identification chip type, support EV1527, PT2262 learning code / fixed code (welding code) IC remote control mixed use

• Compatible with most learning codes and fixed code (weld code) chips on the market, including EV1527, PT2262, HX2262, SC2260, SC5211, HS2240, etc.

• Intelligently adapts to the oscillation resistance of the transmitting end, without considering the oscillation resistance of the transmitting end, and has strong versatility and is more convenient to use.

• Good local oscillator radiation suppression ability, multiple modules can work together and will not interfere with each other, does not affect the receiving distance

• TYJM01A-K supports four modes of operation: Latch, L4, T4, M4, and H4.

• Learning and mode conversion through the learning button trigger

• Supports 4 outputs, the module comes with learning indicator and VT data valid indication, the operation is more intuitive and convenient

• Decoder chip built-in EEPROM, support up to 32 sets of remote control memory

• Wide operating voltage range: 2V ~ 5.5V

• Module size: 18.8X14.8X5mm, small size, easy installation
