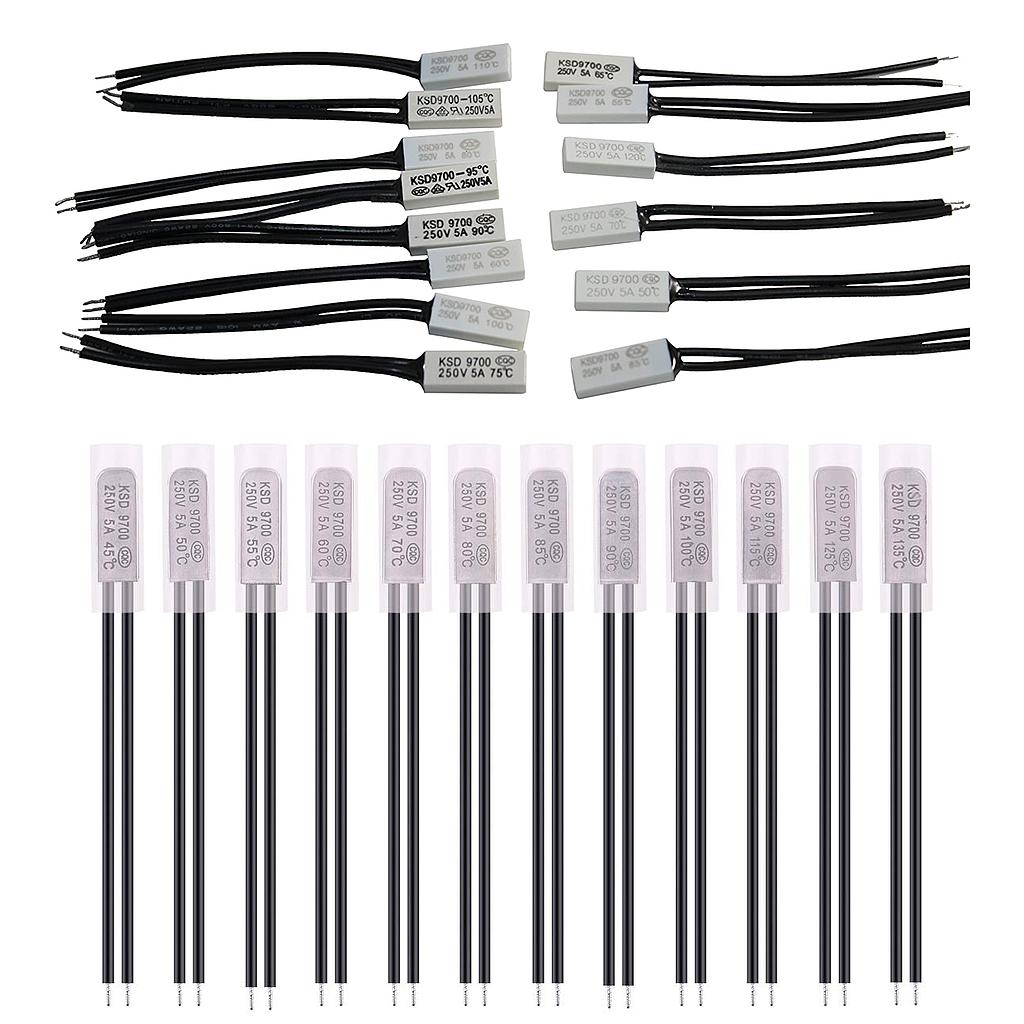

KSD9700 5A 35℃-150℃ Thermostat Temperature Switch N/O Thermal Protector Controller

Price:

$ 0.89
Electronic Components Store for Everything!
USD
  2. Shop
  3. KSD9700 5A 35℃-150℃ Thermostat Temperature Switch N/O Thermal Protector Controller
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.76
$ 2.76

KSD9700 5A 35℃-150℃ Thermostat Temperature Switch N/O Thermal Protector Controller

https://www.satistronics.com/web/image/product.template/7025/image_1920?unique=d27fcb4
(0 review)

$ 0.89 0.89 USD $ 0.89

¥ 6.00

Not Available For Sale

  • Switch Type
  • Temperature
  • Shell Type

This combination does not exist.

Contact Us
Categories :
Thermal Switch
SKU :
2144615
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery
You may also like

Specifications

  • Rated Voltage: AC250V 50～60Hz

  • Rated Current: 5A of Resistive Load

  • Switch Type and Number of poles: 1 pole opener

  • IP-Protection Degree: IP65(Plastic), IP00(metal)

  • Action Type: 1A

  • Operation Cycles: 10000 cycle

  • Insulation material PTI value:175V

  • Resistance of Contact:≤50mΩ(original state)

  • Resistance of Insulated:>100MΩ(DC500V normality)

  • Test Voltage : ≥ 1250V/1min(nomality)

  • 1 or 2 Temperature Control Switch

  • Model : KSD9700

  • Material  :  Plastic case

  • Contact : NC(Normal Closed)/NO(Normal Opened)

  • Temperature : 35C~150C

  • Rated Power : 250V 5A

  • Lead Wire Length : 7.3cm / 2.9"

  • Head Dimension : 20 x 7.5 x 3.5mm/0.78" x 0.3" x 0.14"(L*W*T)

​
