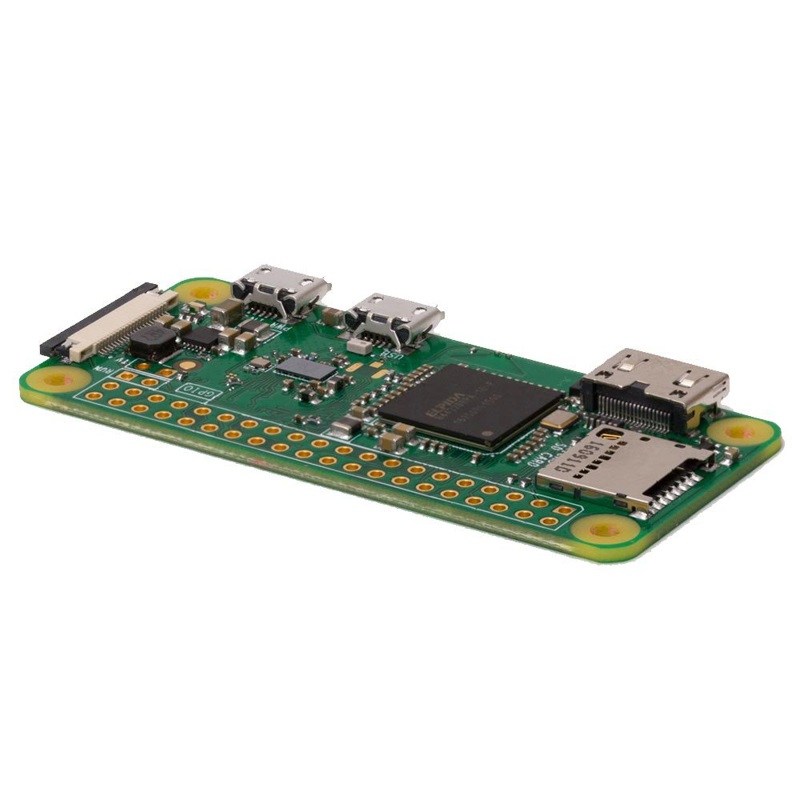

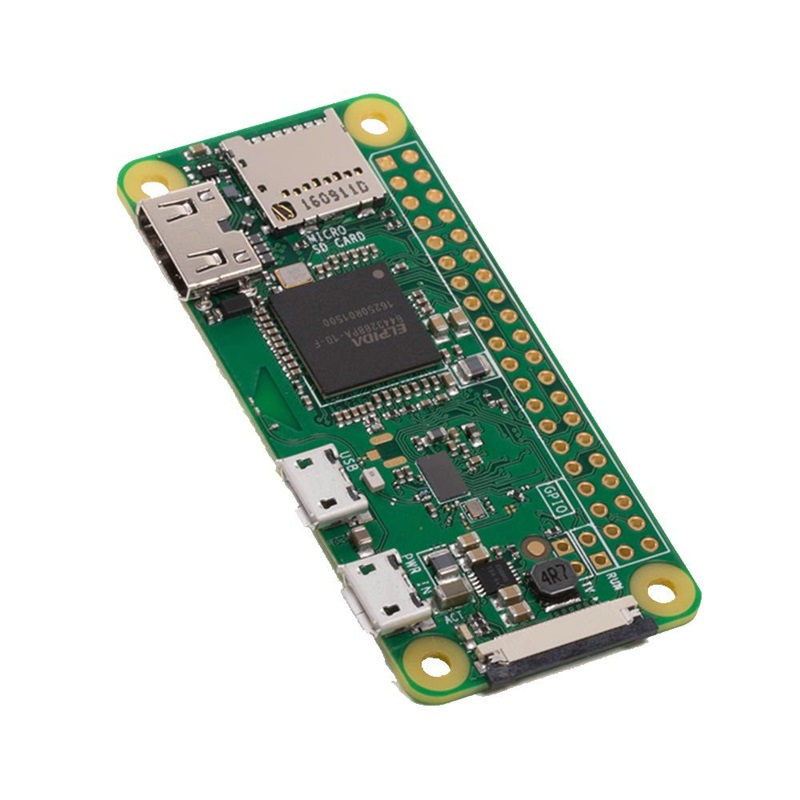

Latest Raspberry Pi Zero/ZERO W/WH Wireless Pi 0 with WIFI and Bluetooth

https://www.qskj.cc/web/image/product.template/3144/image_1920?unique=23c53c7
(0 review)

19.52 19.52 USD 19.52

¥ 137.00

Not Available For Sale


  • Type

This combination does not exist.


SKU :
1940932
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Description:

What is the Raspberry Pi Zero?

  • While the Raspberry Pi 2 marks the top end of the platform's tech specs, the Pi Zero takes the opposite approach. This is, for all intents and purposes, an entry-level model that's been reduced both in price and size (being three times smaller than the original Raspberry Pi 1 series).

Raspberry Pi Zero Technical Specifications

  • CPU: Broadcom BCM2835, which can run at up to 1GHz.

  • RAM: 512MB

  • Power: 5V, supplied via micro USB connector, drawing 160mA (even when connected to an HD display).

  • Dimensions: 65mm x 30mm x 5mm

  • Video & Audio: 1080P HD video output. Audio output via mini-HDMI connector.

  • Storage: MicroSD card.

  • Operating System: Linux, installed via NOOBS.

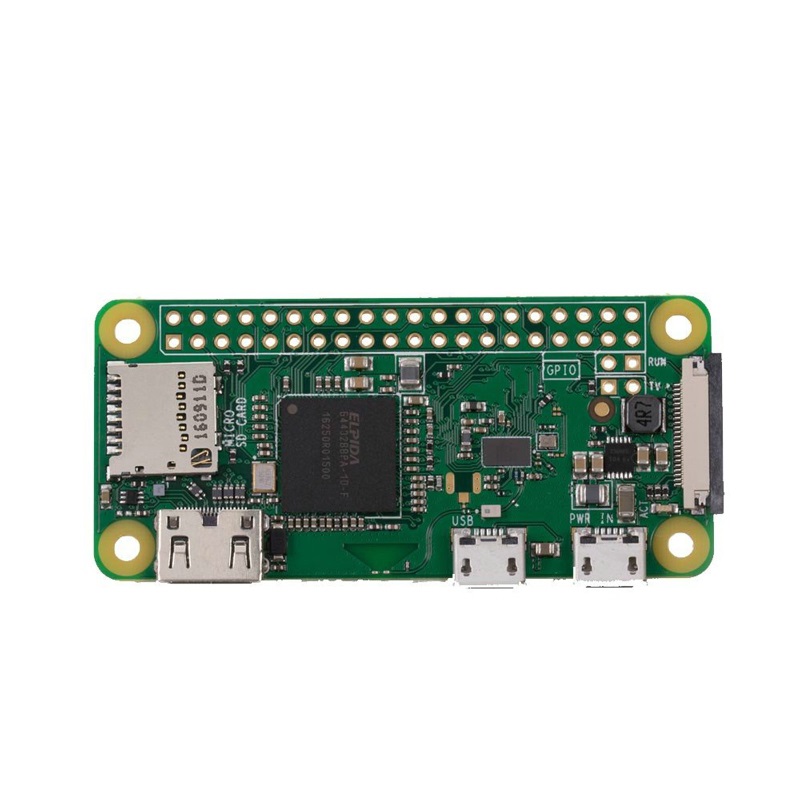

  • The Raspberry Pi Zero: Inputs and Outputs

  • MicroSD Card Slot: The Pi Zero gets its storage space from a MicroSD card, which you'll need to install the operating system on.

  • Mini HDMI: Video output for the Pi Zero is by way of a mini-HDMI connector. In terms of their operation, these connectors perform identically to their larger versions. N.B. A mini-HDMI to standard HDMI adapter is included with the Pi Zero from element14.

  • Micro USB: You'll notice there are two micro USB connectors on the Pi Zero. One is for data (the connector on the left, if the MicroSD card slot is on the left), and one is for power. Don't get them mixed up. A micro USB "On the Go" to USB adapter is included with the Pi Zero from element14 so you can connect a USB hub, and therefore all your peripherals (keyboard, mouse etc).

  • GPIO: The Pi Zero has the same 40 pin General Purpose Input/Output connections as the Model A+, B+ and RPi2, but the connector pins are unpopulated. So if you want to use the GPIO, you'll either have to solder the required pins in place, or solder your connections directly to the Pi Zero.

  • RUN Mode Pins: There are two unpopulated RUN mode pins, which can be used to connect a reset button to the Pi Zero. Again, you'll either have to add the pins yourself, or solder a button straight to the board.

  • Composite Video: Here's an interesting one. There's an RCA composited video output via two (unpopulated) pins, so you can hook the Pi Zero up to older display equipment that accepts a phono plug as an input.


What is the Raspberry Pi Zero W?

  • Now with WiFi! Not to be mistaken with the standard Raspberry Pi Zero, this new model has WiFi and Bluetooth built in!

Raspberry Pi Zero W (Wireless) Details:

  • BCM2835 (same as Pi 1) but up-clocked to 1GHz, so 40% faster

  • 512MB RAM

  • Mini HDMI

  • USB On-The-Go port

  • Micro USB power

  • HAT-compatible 40-pin header

  • Composite video and reset headers

  • CSI camera connector

  • 802.11b/g/n Wireless LAN

  • Bluetooth 4.1

  • Bluetooth Low Energy (BLE)

  • Specifications:

  • CPU: Broadcom BCM2835, which can run at up to 1GHz.

  • RAM: 512MB

  • Power: 5V, supplied via micro USB connector, drawing 160mA (even when connected to an HD display).

  • Dimensions: 65mm x 30mm x 5mm

  • Video & Audio: 1080P HD video output. Audio output via mini-HDMI connector.

  • Storage: MicroSD card.

  • Operating System: Linux, installed via NOOBS.

Inputs and Outputs:

  • MicroSD Card Slot: The Pi Zero gets its storage space from a MicroSD card, which you'll need to install the operating system on.

  • Mini HDMI: Video output for the Pi Zero is by way of a mini-HDMI connector. In terms of their operation, these connectors perform identically to their larger versions.

  • Micro USB: You'll notice there are two micro USB connectors on the Pi Zero. One is for data (the connector on the left, if the MicroSD card slot is on the left), and one is for power. Don't get them mixed up.

  • GPIO: The Pi Zero has the same 40 pin General Purpose Input/Output connections as the Model A+, B+ and RPi2, but the connector pins are unpopulated. So if you want to use the GPIO, you'll either have to solder the required pins in place, or solder your connections directly to the Pi Zero.

  • RUN Mode Pins: There are two unpopulated RUN mode pins, which can be used to connect a reset button to the Pi Zero. Again, you'll either have to add the pins yourself, or solder a button straight to the board.

  • Composite Video: Here's an interesting one. There's an RCA composited video output via two (unpopulated) pins, so you can hook the Pi Zero up to older display equipment that accepts a phono plug as an input.


 What is the Raspberry Pi Zero WH?

  • The Raspberry Pi Zero W / WH extends the Pi Zero family. Launched at the end of February 2017, the Pi Zero W has all the functionality of the original Pi Zero, but comes with added WiFi and Bluetooth connectivity.

  • Now this new Raspberry Pi Zero WH offers all the benefits of the Pi Zero W, plus 40PIN pre-soldered GPIO headers. It's perfect for everyone who doesn't own a soldering iron or who wants the soldering legwork done for them.

  • Description:
    Broadcom BCM2835

  • 1GHz ARM11 single-core processor

  • 512MB RAM

  • Added wireless connectivity

  • 802.11 b/g/n wireless LAN

  • Bluetooth 4.1

  • Bluetooth Low Energy (BLE)

  • 40PIN pre-soldered GPIO headers

  • Micro SD card slot

  • Mini-HDMI port (1080p60 video output)

  • Micro-USB power

  • Micro-USB OTG port

  • CSI camera connector

  • Composite video header

  • Composite reset header

  • Dimension: 65mm x 30mm x 11.6mm
