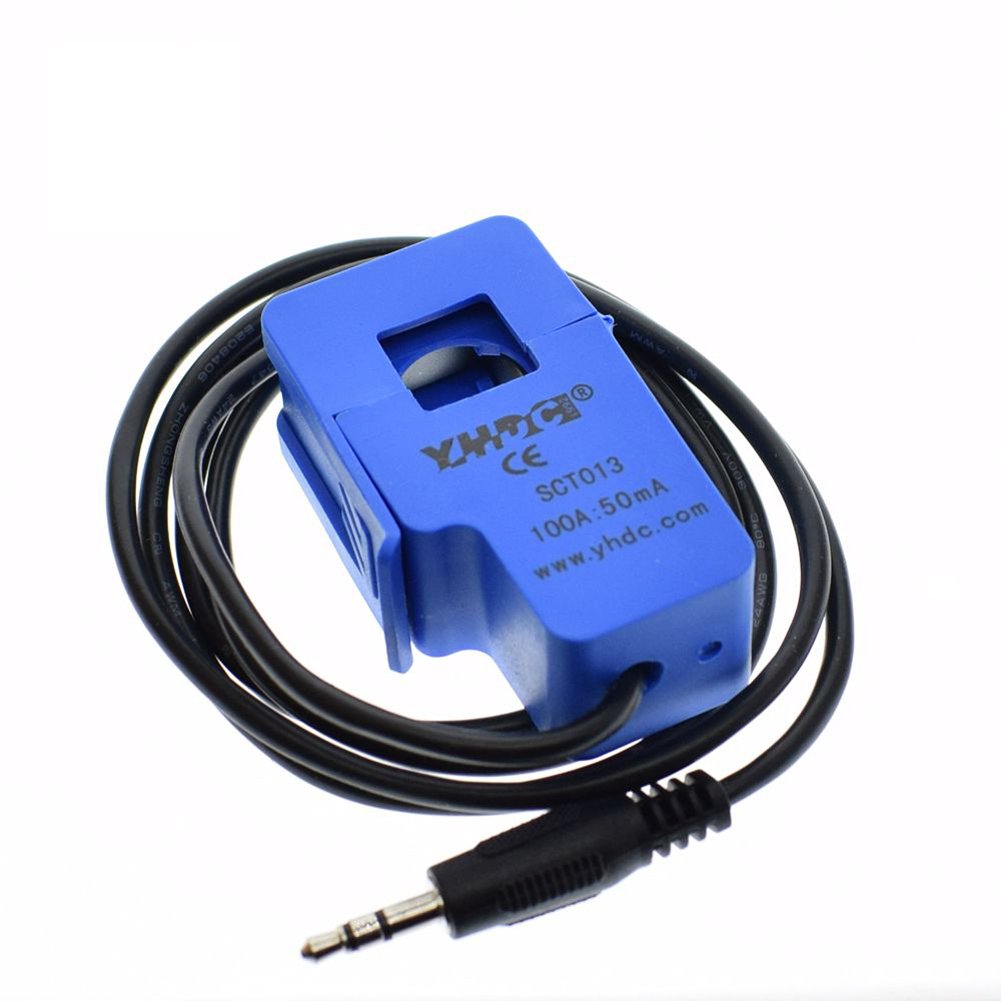

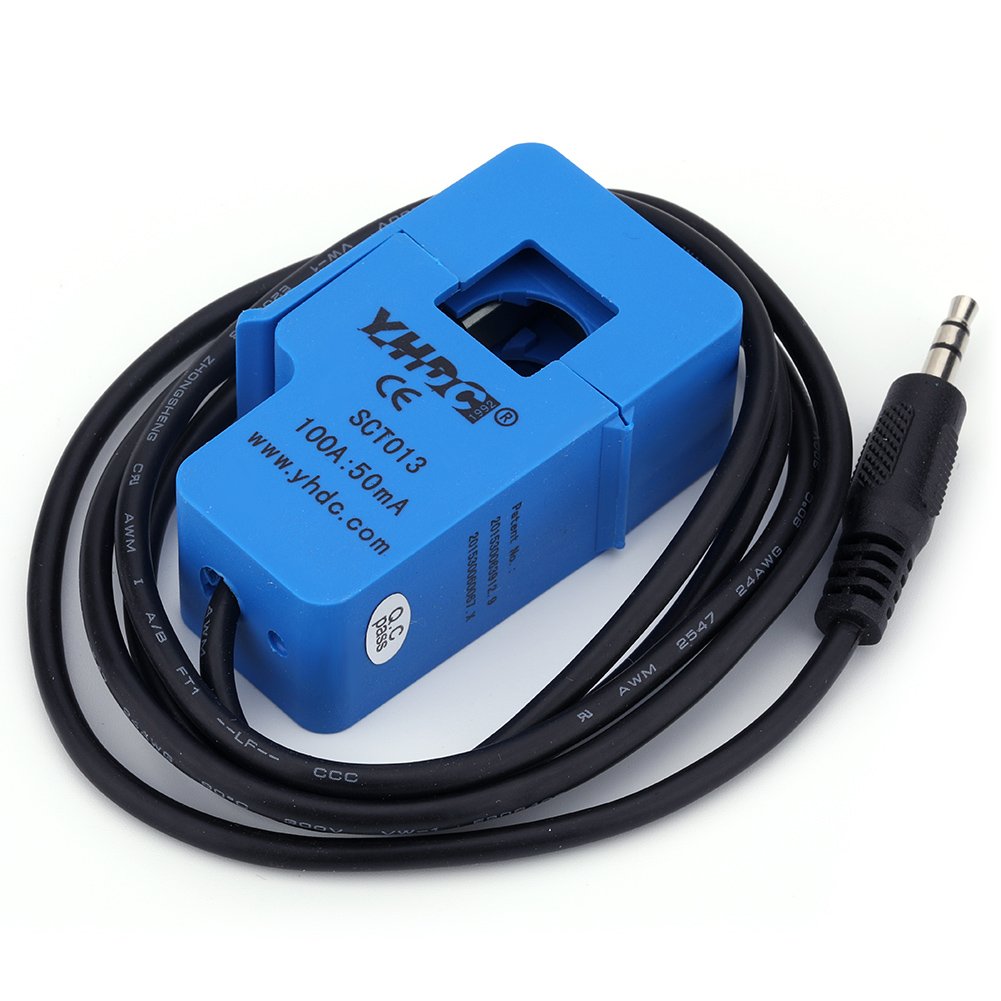

SCT-013-000 30A/50A/100A Non-invasive AC Current Sensor Split-Core Clamp Current Transformer for Raspberry pi

https://www.qskj.cc/web/image/product.template/6775/image_1920?unique=8074831
(0 review)

4.41 4.41 USD 4.41

¥ 32.00

Not Available For Sale


  • Current

This combination does not exist.


Categories :
Current Transformers
SKU :
1941827
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Features:

  • This ac current sensor used for measuring alternating current, particularly used for whole building consumption or generation.

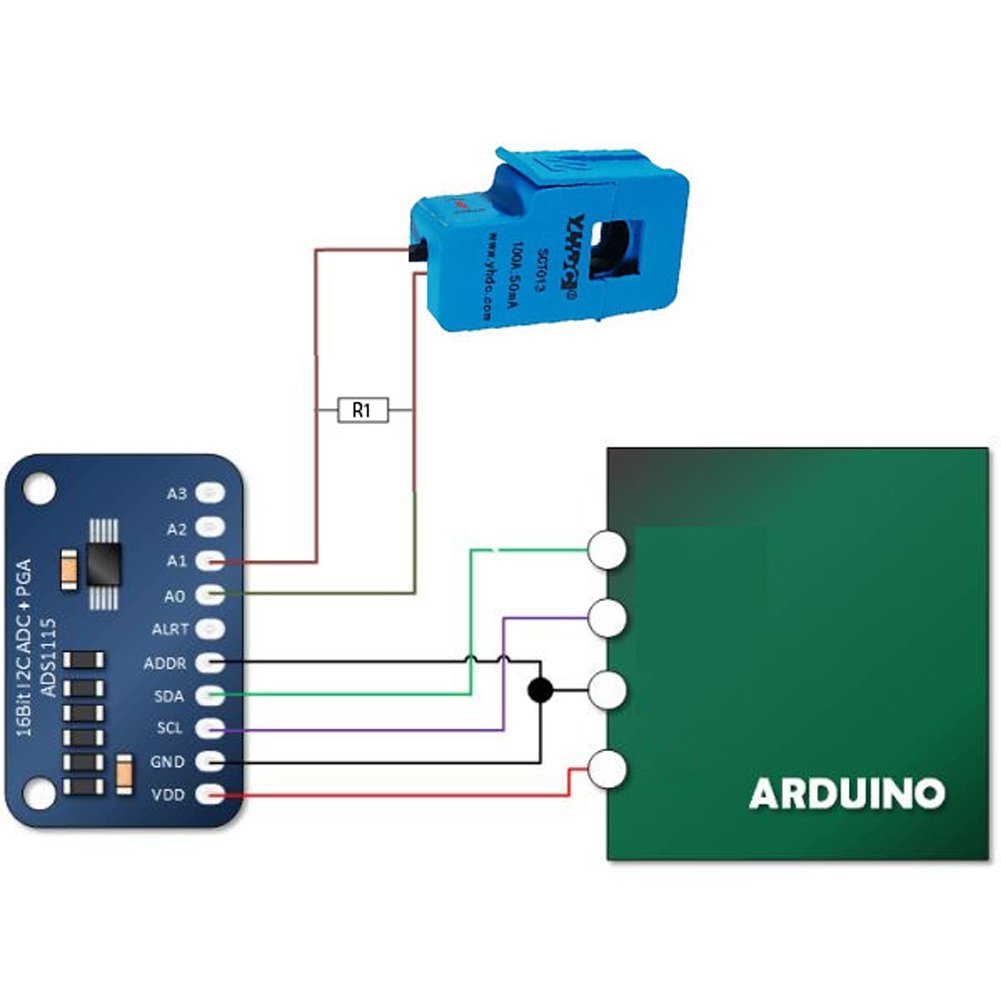

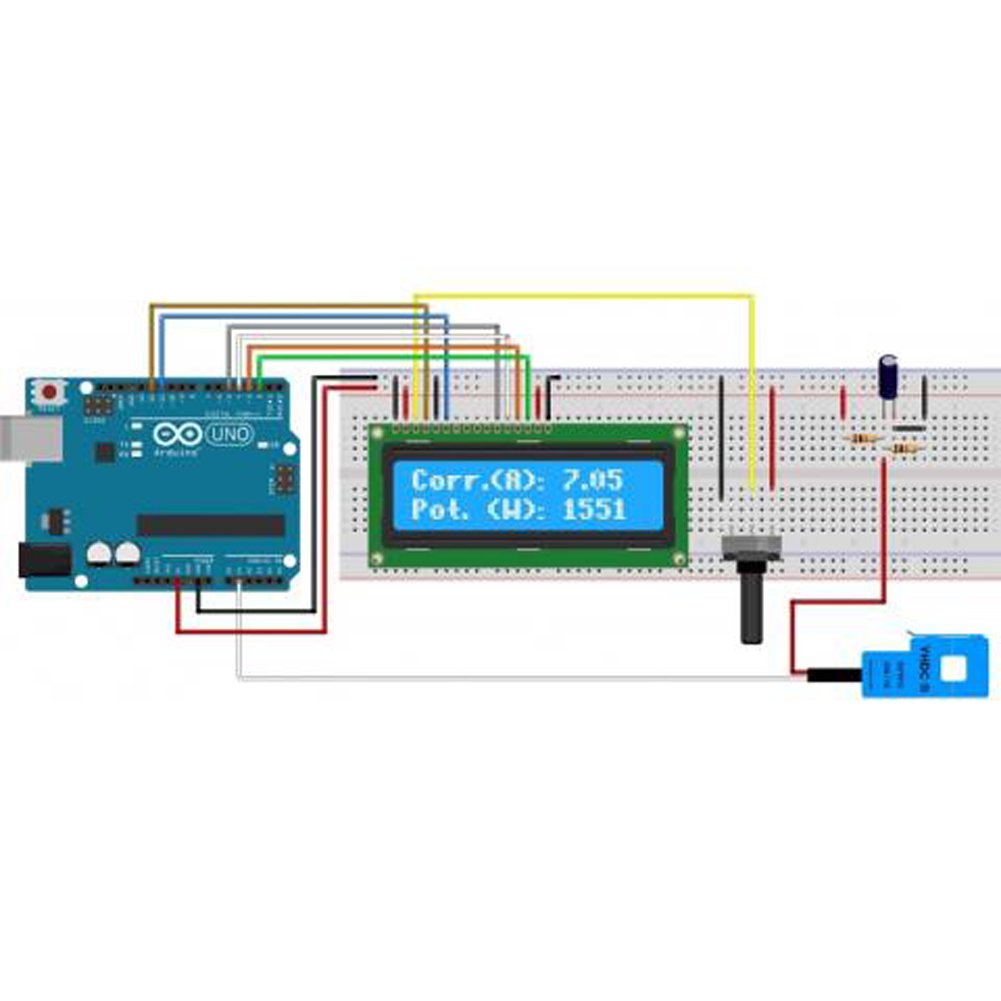

  • This split core transformer is particularly suitable for DIY use and it works well with arduino and raspberry pi.

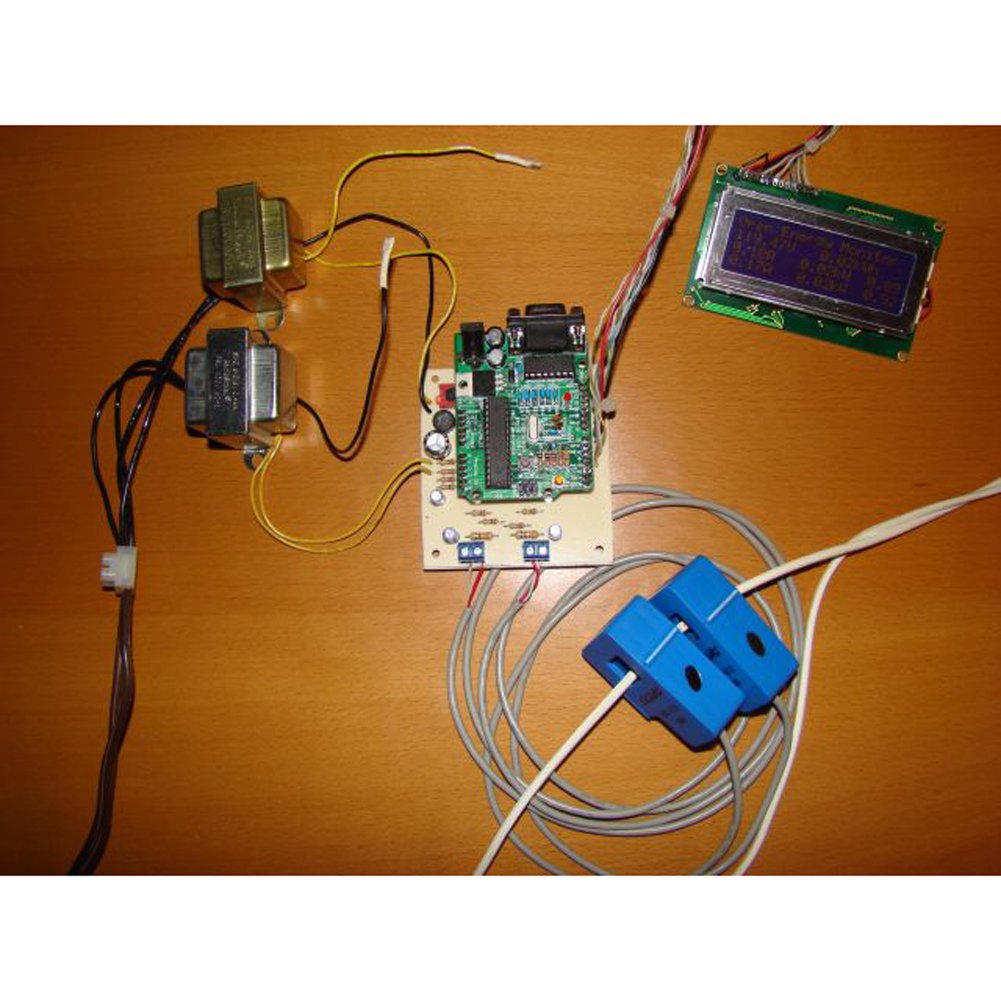

  • Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC load.

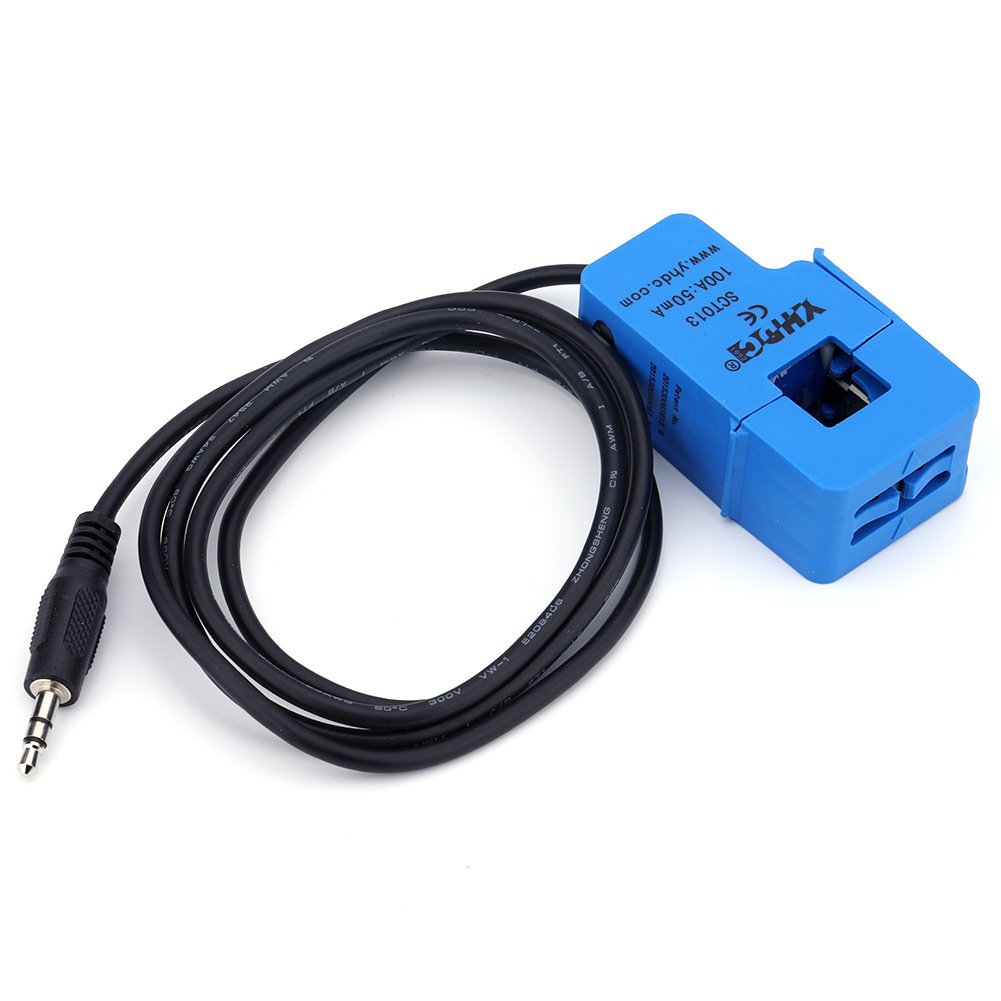

  • Input Current: 0~100A AC; Length of Leading Wire: 1m; Two Form of Output: current output or voltage output (burden resistor needed to add); Cable Jack: 3.5mm (like a headphone jack).

  • Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement and over-current protection

Parameters:

  • Model: SCT-013-000

  • Type: Non-invasive current transformer

  • Core Material: Ferrite

  • Input Current: 0~100A AC

  • Output Mode: 0~50mA

  • Leading Wire in Length: 1m

  • Turns Ratio: 1: 1800

  • Work Voltage: 660 v

  • Resistance Grade: Grade B

  • Max Sampling Resistance: 10 Ω

  • Linearity: ±3%

  • Accurancy: ±1%

  • Work Frequency: 50-1 KHz

  • Work Temperature: -25˚C ~ 70˚C

  • Reference project: Open Energy Monitor

  • Dielectric Strength: 6000V AC/1min

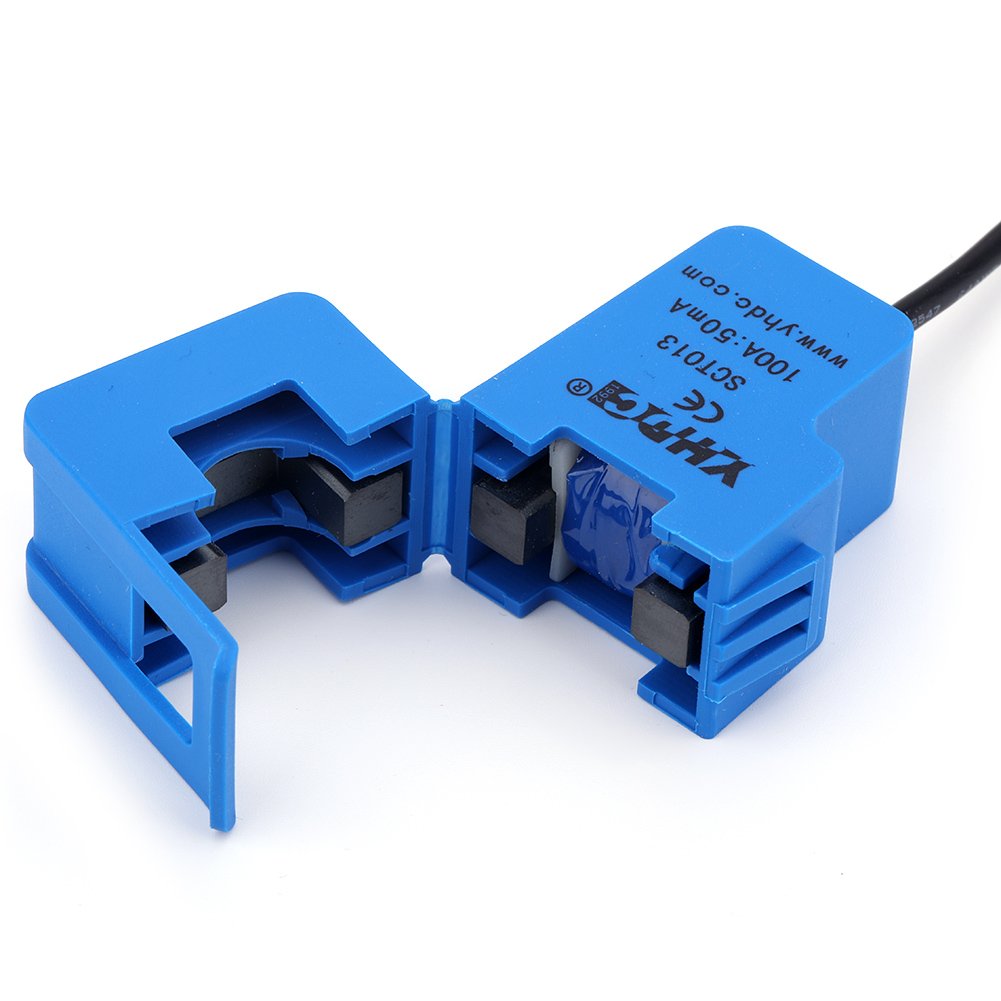

  • Opening Size: 0.51 * 0.51inch / 13 x 13mm

  • Two Form of Output: current output or voltage output (a burden resistor needed to add);

  • Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)

  • High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)
