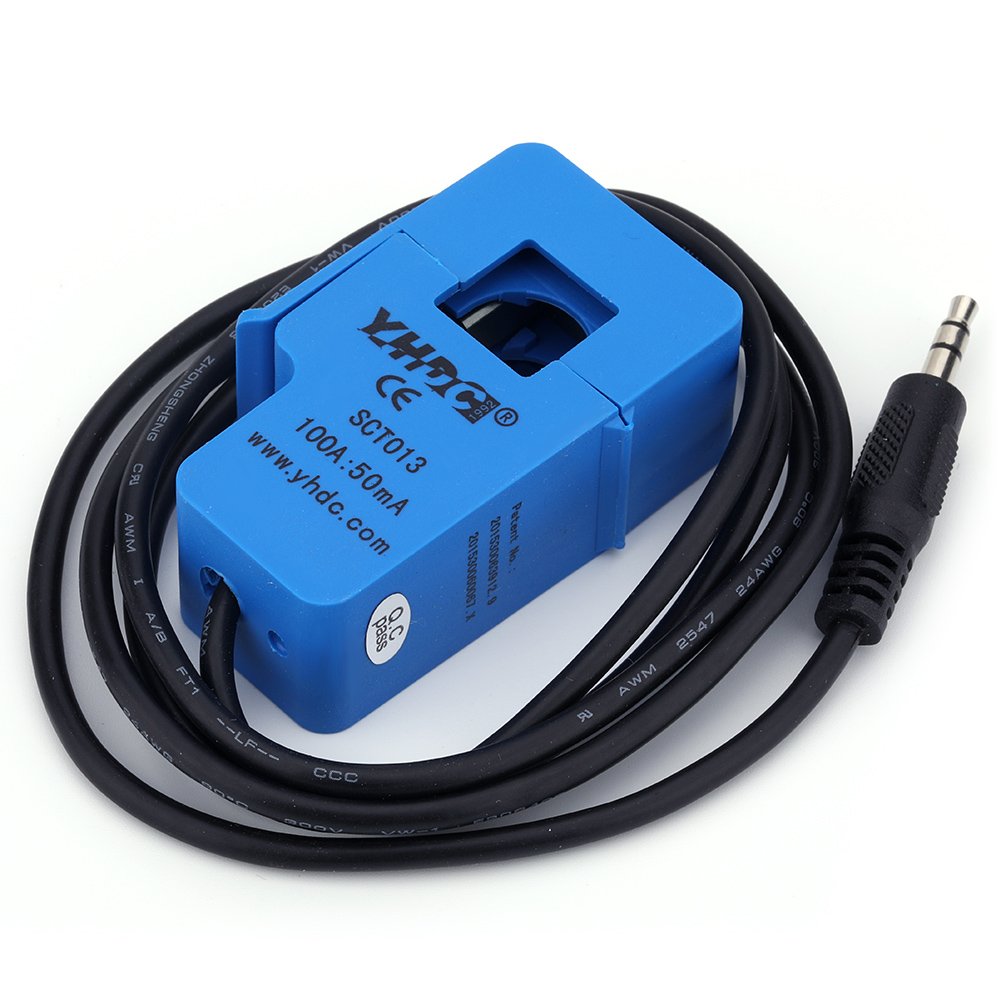

SCT-013-000 30A/50A/100A Non-invasive AC Current Sensor Split-Core Clamp Current Transformer for Raspberry pi

Features:

• This ac current sensor used for measuring alternating current, particularly used for whole building consumption or generation.

• This split core transformer is particularly suitable for DIY use and it works well with arduino and raspberry pi.

• Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC load.

• Input Current: 0~100A AC; Length of Leading Wire: 1m; Two Form of Output: current output or voltage output (burden resistor needed to add); Cable Jack: 3.5mm (like a headphone jack).

• Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement and over-current protection

Parameters:

• Model: SCT-013-000

• Type: Non-invasive current transformer

• Core Material: Ferrite

• Input Current: 0~100A AC

• Output Mode: 0~50mA

• Leading Wire in Length: 1m

• Turns Ratio: 1: 1800

• Work Voltage: 660 v

• Resistance Grade: Grade B

• Max Sampling Resistance: 10 Ω

• Linearity: ±3%

• Accurancy: ±1%

• Work Frequency: 50-1 KHz

• Work Temperature: -25˚C ~ 70˚C

• Reference project: Open Energy Monitor

• Dielectric Strength: 6000V AC/1min

• Opening Size: 0.51 * 0.51inch / 13 x 13mm

• Two Form of Output: current output or voltage output (a burden resistor needed to add);

• Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)

• High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)
