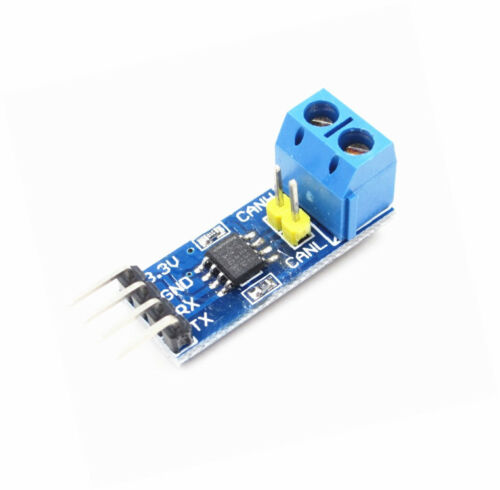

SN65HVD230 Can Board Network Transceiver Evaluation Development Module

https://www.satisled.com/web/image/product.template/6349/image_1920?unique=31bf110
(0 review)

1.77 1.77 USD 1.77

¥ 12.80

Not Available For Sale


  • Type

This combination does not exist.


SKU :
1941043
Share :
100% original guarantee
Return within 30days
Free delivery on all orders

Type A:

  • Material:PCB

  • Color:Blue

  • Size:38x11x10mm/1.49x0.43x0.39 Inch

Type B:

  • Fully compatible with ISO11898 standard;

  • High input impedance, allowing 120 nodes;

  • Low current standby mode, the typical current of 370μA;

  • Signal transfer rate up to 1Mb / s;

  • Thermal protection, open circuit failure protection function;

  • With anti-instantaneous interference protection bus;

  • Slope control, reduce radio frequency interference (RFI);

  • Differential receiver with a wide range of anti-common-mode interference,

  • electromagnetic interference (EMI) capabilities.

  • SN65HVD230 high speed, slope and wait three different modes of operation.

  • Its working mode control can be achieved by the control pin Rs.

  • Figure 2 is a SN65HVD230 CAN bus system in a typical application diagram.

  • Can be seen from the figure, CAN controller is connected

  • to the output pin Tx SN65HVD230 data input terminal D,

  • this data can be transferred to the CAN node sends CAN network;

  • CAN controller and receive pins of Rx and SN65HVD230 R is connected to

  • the data output terminal, for receiving data.

  • Select the port Rs SN65HVD230 way via jumpers and end of

  • the ground slope resistor can be achieved through hardware

  • mode select three modes of operation, in which

  • the slope is 0 ~ 100kΩ resistor potentiometer
