TCRT5000 Reflective Photoelectric Optical Sensor with Infrared and Phototransistor Detector lot(10 pcs)

https://www.satistronix.com/web/image/product.template/4879/image_1920?unique=e9a865c
(0 review)

1.09 1.09 USD 1.09

¥ 7.92

Not Available For Sale

(0.11 / Unit(s))

    This combination does not exist.


    Categories :
    Optical Sensor
    SKU :
    180326
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

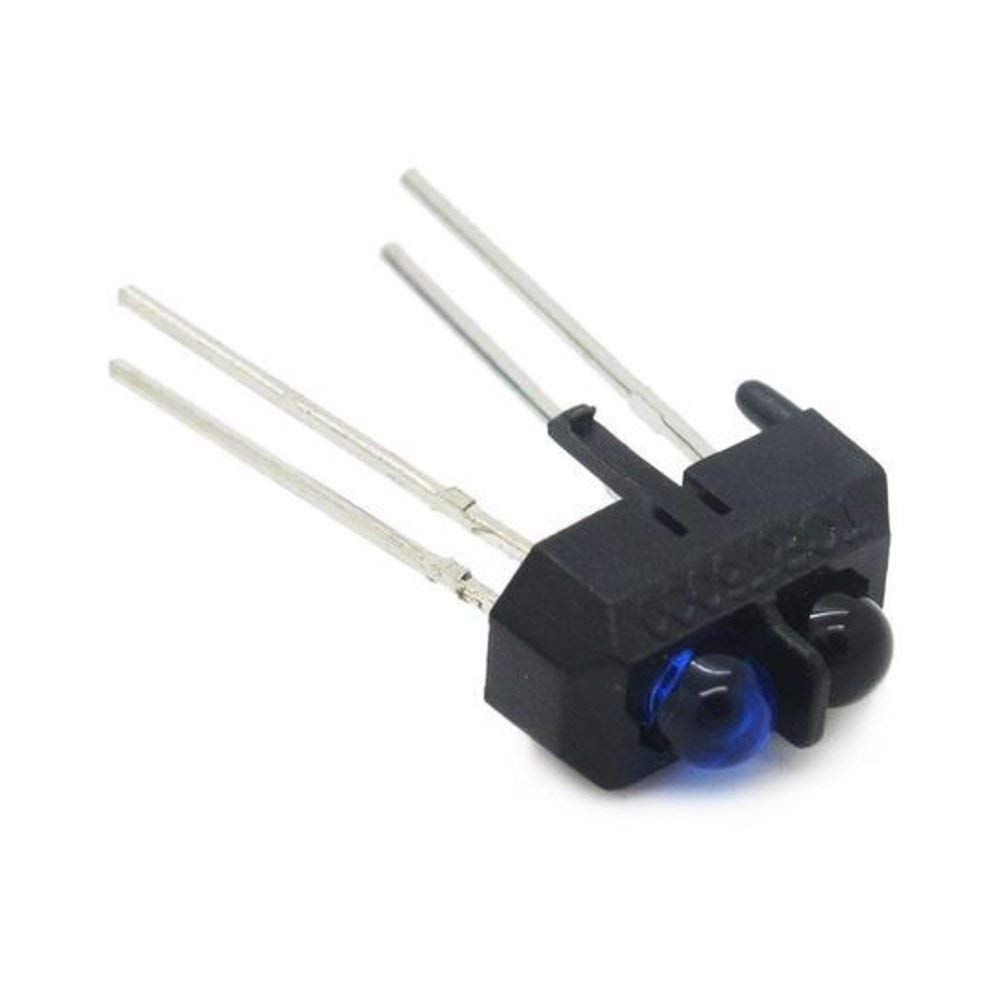

    The TCRT5000 reflective photoelectric sensor integrates both an infrared light emitting diode and a phototransistor which can be used as a detector for the reflected signal.

    The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.

    Features

    • Package type: leaded

    • Detector type: phototransistor

    • Dimensions (L x W x H in mm): 10.2 mm x 5.8 mm x 7 mm

    • Peak operating distance: 2.5 mm

    • Operating range within > 20 % relative collector current: 0.2 mm to 15 mm

    • Typical output current under test: IC = 1 mA

    • Daylight blocking filter

    • Emitter wavelength: 950 nm

    • Lead (Pb)-free soldering released

    • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC

    Applications

    • Line sensor for line following robots

    • Position sensor for shaft encoder

    • General purpose obstacle detector

    • Position sensor for shaft encoder

    • Detection of reflective material such as paper, IBM cards, magnetic tapes etc.

    • Limit switch for mechanical motions in VCR

    • General purpose - wherever the space is limited
