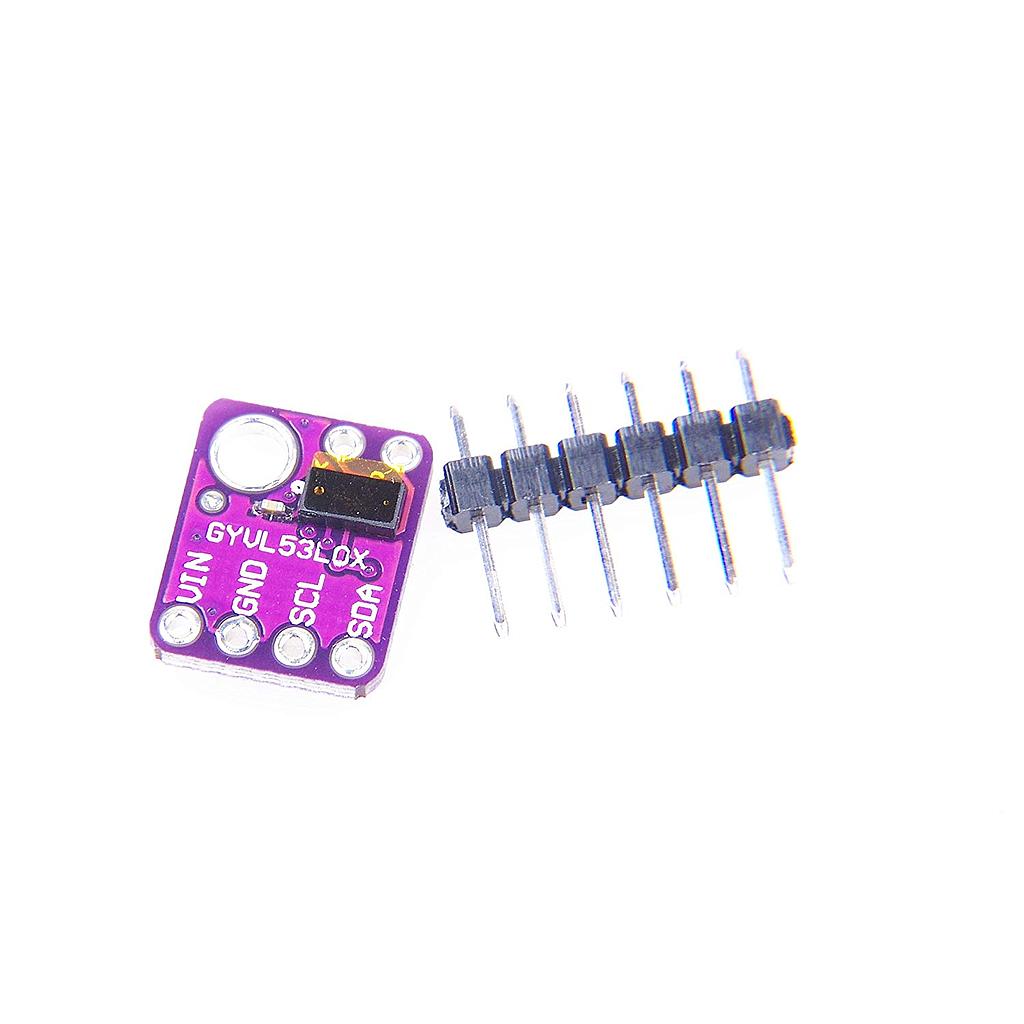

GY-530 VL53LOX Laser Rangefinder Sensor Module Time-of-Flight (ToF) Ranging Flying Time Ranging Sensor Module

https://www.qskj.cc/web/image/product.template/2642/image_1920?unique=5604368
(0 review)

4.69 4.69 USD 4.69

¥ 34.00

Not Available For Sale


    This combination does not exist.


    Categories :
    Optical Sensor
    SKU :
    180331
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Product description:

    • Fully integrated miniature module;

    • 940nm Laser VCSEL ;

    • VCSEL driver

    • Ranging sensor with advanced embedded micro controller

    • 4.4 x 2.4 x 1.0mm

    Fast, accurate distance ranging:

    • Measures absolute range up to 2m

    • Reported range is independent of the target reflectance

    • Operates in high infrared ambient light levels

    • Advanced embedded optical cross-talk compensation to simplify cover glass selection

    Eye safe:

    • Class 1 laser device compliant with latest standard IEC 60825-1:2014 - 3rd edition

    Easy integration:

    • Single reflowable component

    • No additional optics

    • Single power supply

    • I2C interface for device control and data transfer

    • Xshutdown (Reset) and interrupt GPIO

    • Programmable I2C address

    • Power supply: 2.8-5V

    Applications:

    • User detection for Personal Computers/ Laptops/Tablets and IoT (Energy saving). Robotics (obstacle detection).

    • White goods (hand detection in automatic faucets, soap dispensers etc...).

    • 1D gesture recognition.

    • Laser assisted Auto-Focus.

    Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode.
