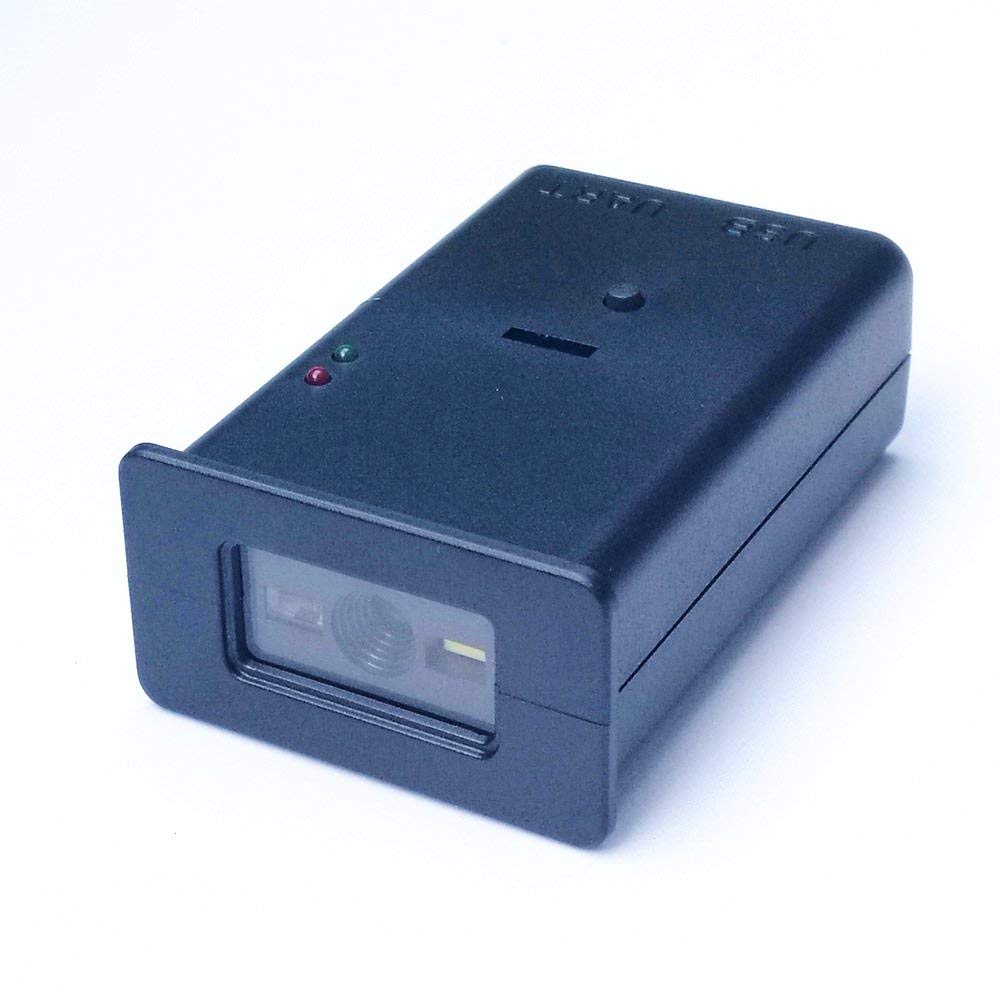

GM66 New Design 1D 2D Code Scanner Bar Code Reader QR Code Reader Module

https://www.satistronics.com/web/image/product.template/2597/image_1920?unique=d27fcb4
(0 review)

$ 30.89 30.89 USD $ 30.89

¥ 209.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Optical Sensor
    SKU :
    180337
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like

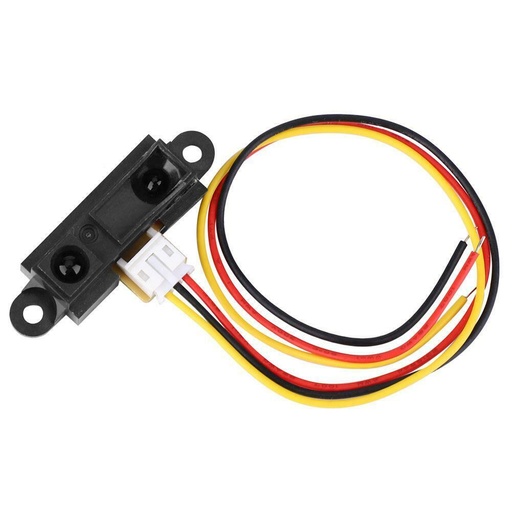

    GP2Y0A41SK0F Infrared Distance Analog Sensor Module Range 4-30cm
    GP2Y0A41SK0F Infrared Distance Analog Sensor Module Range 4-30cm
    $ 6.50 $ 6.50

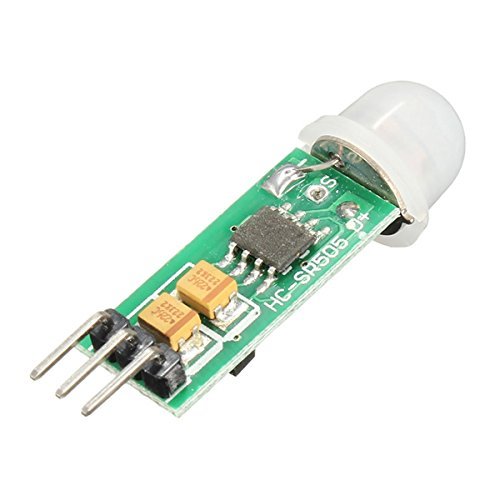

    HC-SR505 Mini Infrared PIR Human Motion Sensor Detector Module for Arduino
    HC-SR505 Mini Infrared PIR Human Motion Sensor Detector Module for Arduino
    $ 1.82 $ 1.82

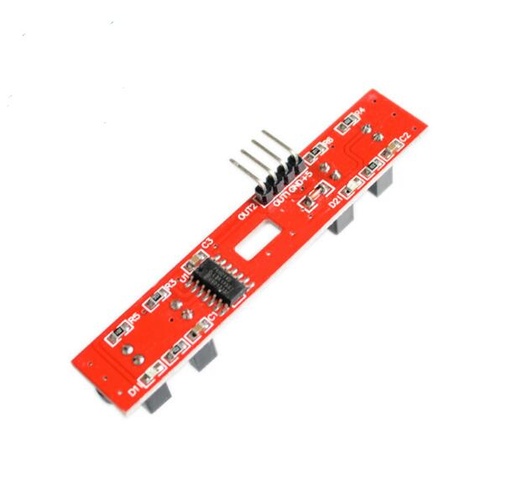

    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    2WD speed measuring module intelligent tracking trolley counter counting module 2 road motor speed measurement
    $ 2.93 $ 2.93

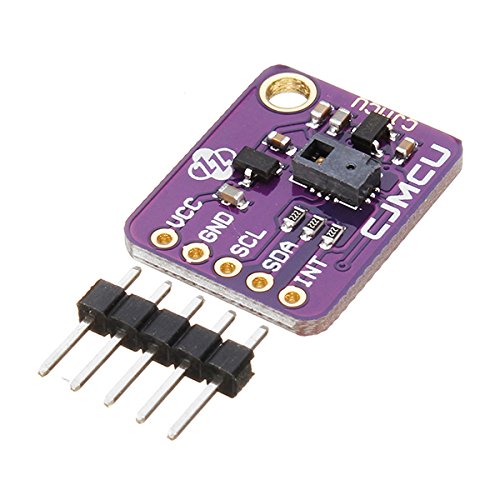

    CJMCU-7620 Gesture Recognition Sensor PAJ7620U2 9 Gesture Recognition
    CJMCU-7620 Gesture Recognition Sensor PAJ7620U2 9 Gesture Recognition
    $ 9.43 $ 9.43

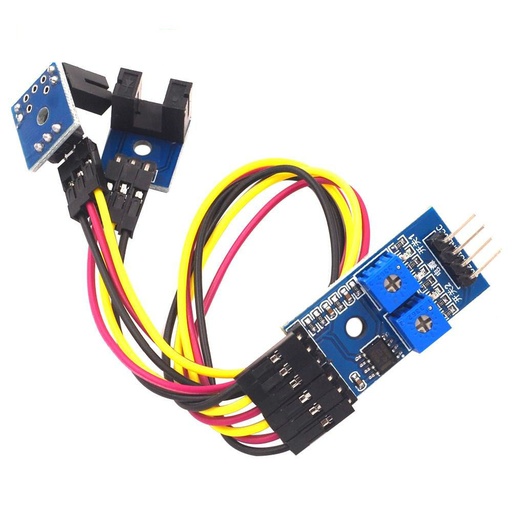

    2 Channel Speed Detection Sensor Module Counting Module Motor Speed Slot Type Optocoupler Module
    2 Channel Speed Detection Sensor Module Counting Module Motor Speed Slot Type Optocoupler Module
    $ 3.19 $ 3.19

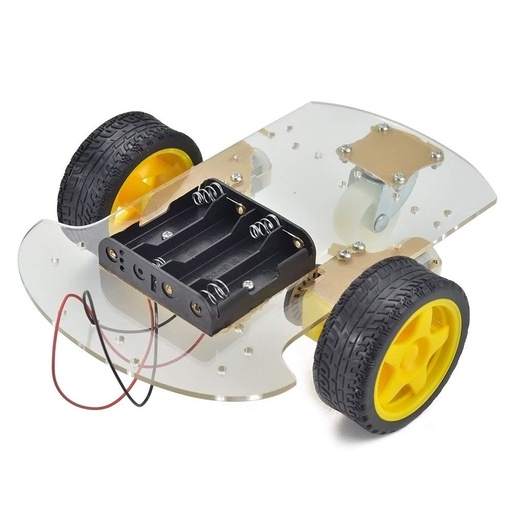

    Motor Robot Car Chassis Kit with Speed Encoder wheels and Battery Box
    Motor Robot Car Chassis Kit with Speed Encoder wheels and Battery Box
    $ 3.90 $ 3.90

    GROW GM66 New Design 1D 2D Code Scanner Bar Code Reader QR Code Reader Module


    Features:

    • USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

    • High-efficiency recognization and high upload speed for improving your working efficiency.

    • With buzzer for reminding you that the scanning successfully or not.

    • Compatible with USB and UART interface.

    • Over 180 configurable options

    • Macro support replace a string in the bar code with another

    • Programmable preamble postamble and termination strings

    • Superior reading performance utilizing advanced decoding algorithms


    Performance Parameters

    Decoding Ability:

    • 1D:EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.

    • 2D:PDF417,QR Code,Data Matrix ect.

    • Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

    • Resolution: 0.10mm (4mil)

    • Reading Distance :25 - 250mm

    • Interfaces: USB2.0/UART

    • Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater

    • Scanning angle Inclination angle: 34°, Elevation angle 26°

    • Print Contrast 30% minimum reflective difference

    • LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

    ​
