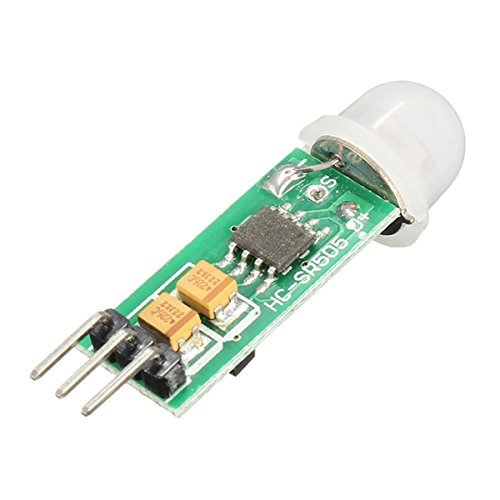

HC-SR505 Mini Infrared PIR Human Motion Sensor Detector Module for Arduino

https://www.satistronics.com/web/image/product.template/2718/image_1920?unique=99581fd
(0 review)

$ 1.72 1.72 USD $ 1.72

¥ 12.32

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Optical Sensor , PIR Sensor
    SKU :
    180361
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    TCRT5000 Infrared Reflective IR Photoelectric Switch Barrier Line Track Sensor Module lot(5 pcs)
    TCRT5000 Infrared Reflective IR Photoelectric Switch Barrier Line Track Sensor Module lot(5 pcs)
    $ 2.10 $ 2.10
    Speed Encoder Light Code Disc 20 Grid Smart Car Photoelectric lot(10 pcs)
    Speed Encoder Light Code Disc 20 Grid Smart Car Photoelectric lot(10 pcs)
    $ 0.37 $ 0.37
    GY-53 VL53L0X Laser ToF Flight Time Range Sensor Module Serial PWM Output
    GY-53 VL53L0X Laser ToF Flight Time Range Sensor Module Serial PWM Output
    $ 9.24 $ 9.24

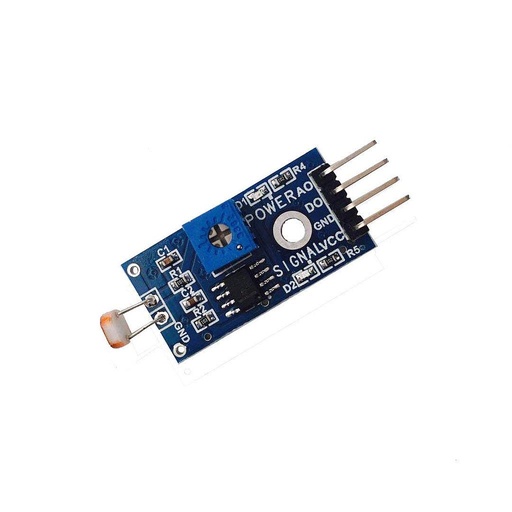

    Q42 3 Pin Light Detection Digital Switch Mete Output Photosensitive Sensor Module lot(5 pcs)
    Q42 3 Pin Light Detection Digital Switch Mete Output Photosensitive Sensor Module lot(5 pcs)
    $ 1.26 $ 1.26

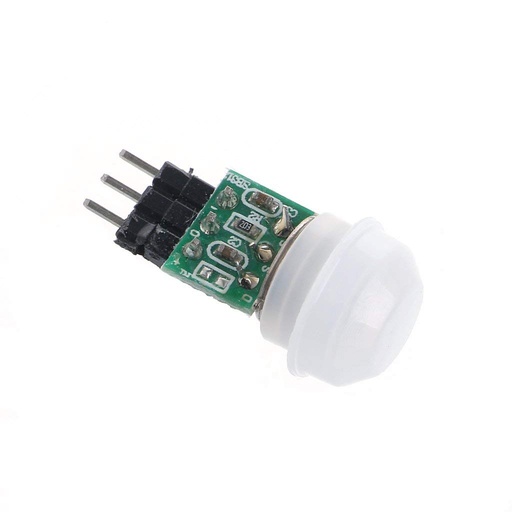

    Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module
    Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module
    $ 1.23 $ 1.23
    RGB and Gesture Sensor Proximity Sensor for Arduino APDS-9930
    RGB and Gesture Sensor Proximity Sensor for Arduino APDS-9930
    $ 1.66 $ 1.66

    Applications:

    • Body induction lamps

    • Body sensors toys

    • Security Products

    • Industrial automation and control

    • Auto-sensing of electrical equipment

    • Battery-powered automatic control

                                Technical parameters:

                                Operating Voltage Range: DC4.5-20V
                                Static current: <60uA
                                Output level: High 3.3V / Low 0V
                                Trigger: repeatable trigger (default)
                                Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
                                PCB Dimensions: 10 * 23mm
                                Induction angle: <100 degree cone angle
                                Induction distance: 3 meters
                                Working temperature: -20 - +80 degrees
                                Sensor Lens Dimensions: Diameter: 10mm (default)
