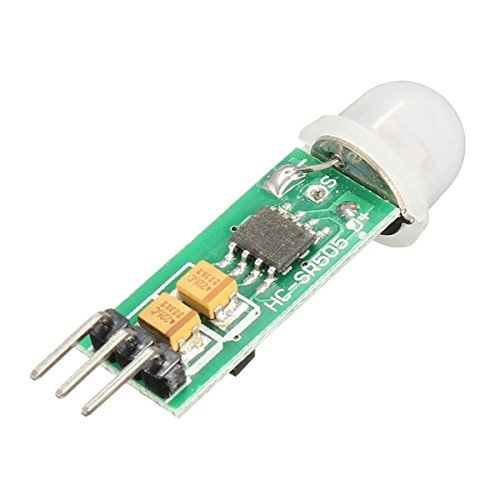

HC-SR505 Mini Infrared PIR Human Motion Sensor Detector Module for Arduino

https://www.satistronics.com/web/image/product.template/2718/image_1920?unique=d27fcb4
(0 review)

$ 1.82 1.82 USD $ 1.82

¥ 12.32

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Optical Sensor , PIR Sensor
    SKU :
    180361
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery
    You may also like
    GP2Y0A41SK0F Infrared Distance Analog Sensor Module Range 4-30cm
    GP2Y0A41SK0F Infrared Distance Analog Sensor Module Range 4-30cm
    $ 6.50 $ 6.50
    MonkeyJack OV7725 300KP VGA Camera Module 640x480 3.3V SSCB I2C Lens for Arduino
    MonkeyJack OV7725 300KP VGA Camera Module 640x480 3.3V SSCB I2C Lens for Arduino
    $ 10.73 $ 10.73
    TCRT5000 Reflective Photoelectric Optical Sensor with Infrared and Phototransistor Detector lot(10 pcs)
    TCRT5000 Reflective Photoelectric Optical Sensor with Infrared and Phototransistor Detector lot(10 pcs)
    $ 1.17 $ 1.17
    XD-29 CJMCU-GUVA-S12SD Sensor
    XD-29 CJMCU-GUVA-S12SD Sensor
    $ 3.25 $ 3.25
    2D/QR/1D Barcode scan engine USB/RS232 Bar Code Scanner QR Code Reader Module GM71
    2D/QR/1D Barcode scan engine USB/RS232 Bar Code Scanner QR Code Reader Module GM71
    $ 52.03 $ 52.03
    TCRT5000L 5-Way Tracking Sensor Module Infrared Sensor Board
    TCRT5000L 5-Way Tracking Sensor Module Infrared Sensor Board
    $ 2.60 $ 2.60

    Applications:

    • Body induction lamps

    • Body sensors toys

    • Security Products

    • Industrial automation and control

    • Auto-sensing of electrical equipment

    • Battery-powered automatic control

                                Technical parameters:

                                Operating Voltage Range: DC4.5-20V
                                Static current: <60uA
                                Output level: High 3.3V / Low 0V
                                Trigger: repeatable trigger (default)
                                Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
                                PCB Dimensions: 10 * 23mm
                                Induction angle: <100 degree cone angle
                                Induction distance: 3 meters
                                Working temperature: -20 - +80 degrees
                                Sensor Lens Dimensions: Diameter: 10mm (default)
                                ​
