830 Point MB-102 Solderless Breadboard DIY Electronics for Arduino

Price:

$ 0.80
USD
  2. Shop
  3. 830 Point MB-102 Solderless Breadboard DIY Electronics for Arduino
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.08
$ 1.08
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
10W 15W 20W 25W 30W LED COB Module LED COB Round Panel DC 30V 59.5mm PCB 42mm Emitting Area Warm/ Natural White /White
$ 1.32
$ 1.32

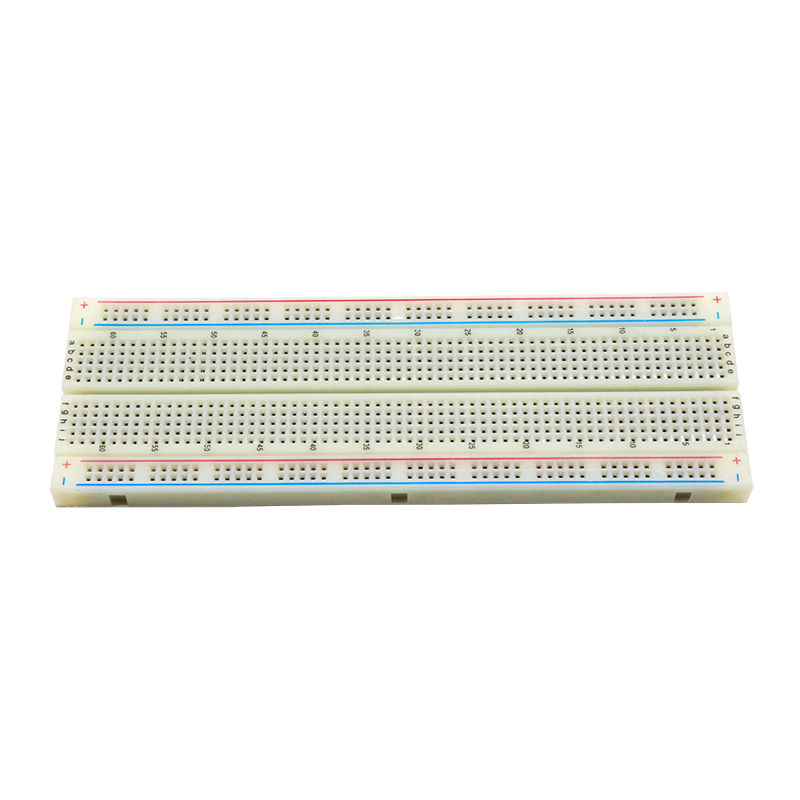

830 Point MB-102 Solderless Breadboard DIY Electronics for Arduino

https://www.satistronics.com/web/image/product.template/1368/image_1920?unique=99581fd
(0 review)

$ 1.05 1.05 USD $ 1.05

¥ 7.48

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Breadboard & Jumper Wire
    SKU :
    180435
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like

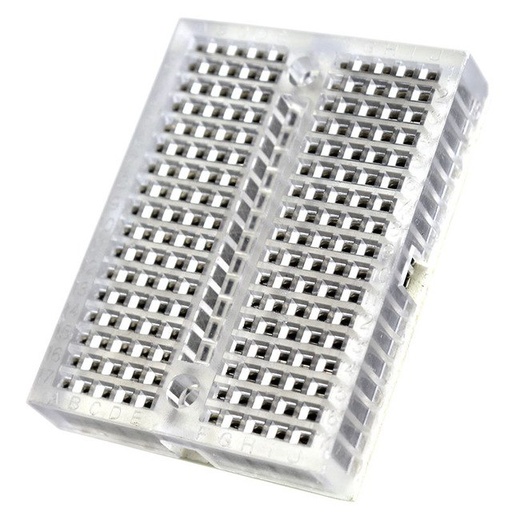

    SYB-170 Mini Prototyping Solderless Breadboard 170 Tie-points 35X47MM
    SYB-170 Mini Prototyping Solderless Breadboard 170 Tie-points 35X47MM
    $ 0.32 $ 0.32
    ZY-201 830 Tie Point Electronic Circuit PCB Board Solderless Breadboard
    ZY-201 830 Tie Point Electronic Circuit PCB Board Solderless Breadboard
    $ 5.04 $ 5.04
    40Pin 20CM 2.54MM Row Male to Male(M-M) Dupont Cable Breadboard Jumper Wire For arduino
    40Pin 20CM 2.54MM Row Male to Male(M-M) Dupont Cable Breadboard Jumper Wire For arduino
    $ 0.43 $ 0.43
    400 point Breadboard + Mounting Plate Prototype Experiment Plate for Raspberry Pi 3 & Raspberry Pi 2 Model B
    400 point Breadboard + Mounting Plate Prototype Experiment Plate for Raspberry Pi 3 & Raspberry Pi 2 Model B
    $ 2.62 $ 2.62

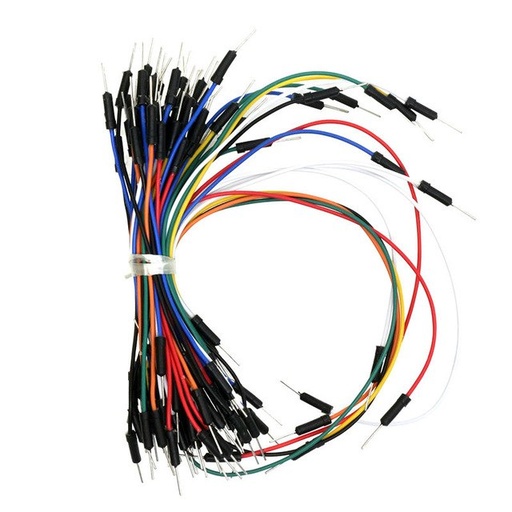

    65 PCS Jumper Wire Mix Color Male to Male Solderless Cable Wire wholesale for Arduino Breadboard
    65 PCS Jumper Wire Mix Color Male to Male Solderless Cable Wire wholesale for Arduino Breadboard
    $ 0.92 $ 0.92
    SYB-120 700 Position Point Solderless PCB Breadboard Protoboard 178mm*45mm
    SYB-120 700 Position Point Solderless PCB Breadboard Protoboard 178mm*45mm
    $ 0.80 $ 0.80

    Features:

    • Condition: NEW, 100% Good Quality

    • Quantity: 1 pc

    • Model: MB-102

    • Dimension: 165mm x 55mm x 10mm

    • Tie Points: 830 Tie Points consists of: 630 Tie-Point Terminal Strip, 200 Tie-Point Distribution Strips

    • Matrix: 126 separate 5 point terminals, plus 4 horizontal bus lines (Power Lines) of 50 test points each

    • Wire size: Suitabe for 29-20 AWG wires

    Description:

    • You can use the Power module MB102 together with the MB-102 breadboard.

    • Breadboard power supply module, compatible with 5 V, 3.3 V

    • Apply to MB102 breadboard

    • Input voltage: 6.5-12 V (DC) or USB power supply

    • Output voltage: 3.3V/5V can switch over

    • Maximum output current: <700 ma

    • Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V

    • On-board two groups of 3.3V, 5V DC output plug pin , convenient external lead use.
