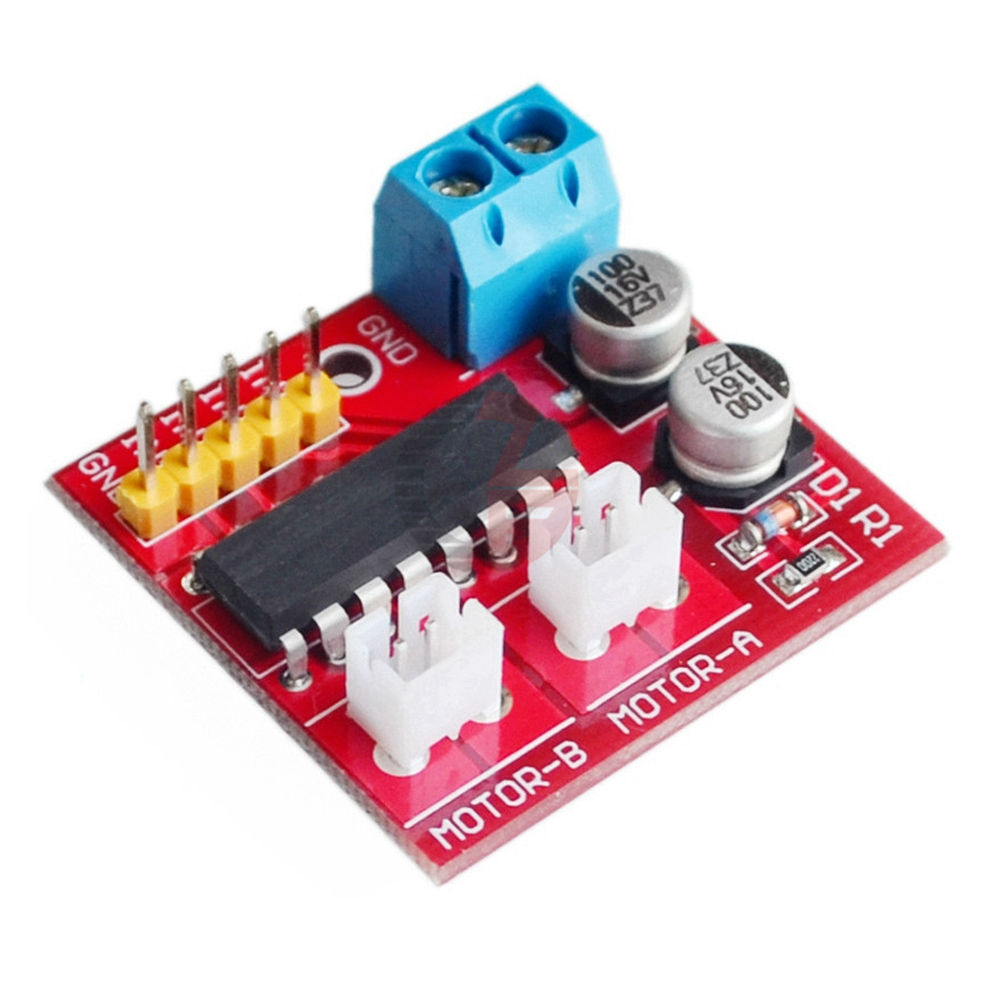

L298N Dual Channel DC Motor Driver Module 2.5A PWM Speed Control

Features:

• It is 2.5A power-enhanced motor drive module with silicone line, pin, terminal, whose power supply voltage can be 2V ~ 10V.
  It can drive two DC motors or a 4-wire 2-phase stepper motor, also can achieve positive and negative Turn and speed function with thermal protection and can automatically restore.


• Parameters:

• Dual H-bridge motor driver, can drive two DC motors or a 4-wire two-phase stepper motor;

• The module supply voltage 2V-10V;

• Signal input voltage 1.8-7V;

• Single Operating current 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA);

• Built-in common conduction circuit, when the input pin is left floating, the motor does not malfunction;

• Built-in thermal protection circuit with hysteresis effects (TSD), without worrying about motor stall;

• Product Size: 24.7 * 21 * 5mm (length, width, height), ultra-small size;

• The mounting hole diameter: 2 mm.
